Gyro mixing "GYRO MIX"
(Preparation)
- Refer to the gyro instruction manual and connect the gyro
to the receiver. When using remote gain, connect gyro sensi-
tivity adjustment to the 3rd CH of the receiver.
- When using gyro mixing by switching between the NORM
(normal) and AVCS modes, use the function select switch di-
al function (p.65) to set the switch to be used.
1
(Gyro mixing setting)
Select the setting item "MODE" by the (JOG) button up or
down operation. Set the function by pressing the (+) or (-)
button.
"INH" : Function OFF
"NORM" :NORMAL mode gain
"AVCS" :AVCS mode gain
"SEL" :Switching Normal mode and AVCS mode
(Displayed <NO SW> when the Gyro Mode SW is not used.)
Gyro mixing adjustment
2
(NORMAL side gain adjustment)
Select the setting item "NORM" by the (JOG) button up or
down operation. Adjust the NORMAL side gain with the (+)
or (-) button.
(AVCS side gain adjustment)
Select the setting item "AVCS" by the (JOG) button up or
down operation. Adjust the AVCS side gain with the (+) or (-)
button.
3
When ending, return to the MENU screen by moving the cur-
sor to the positions other than SW/DIAL and pressing the
(JOG) button.

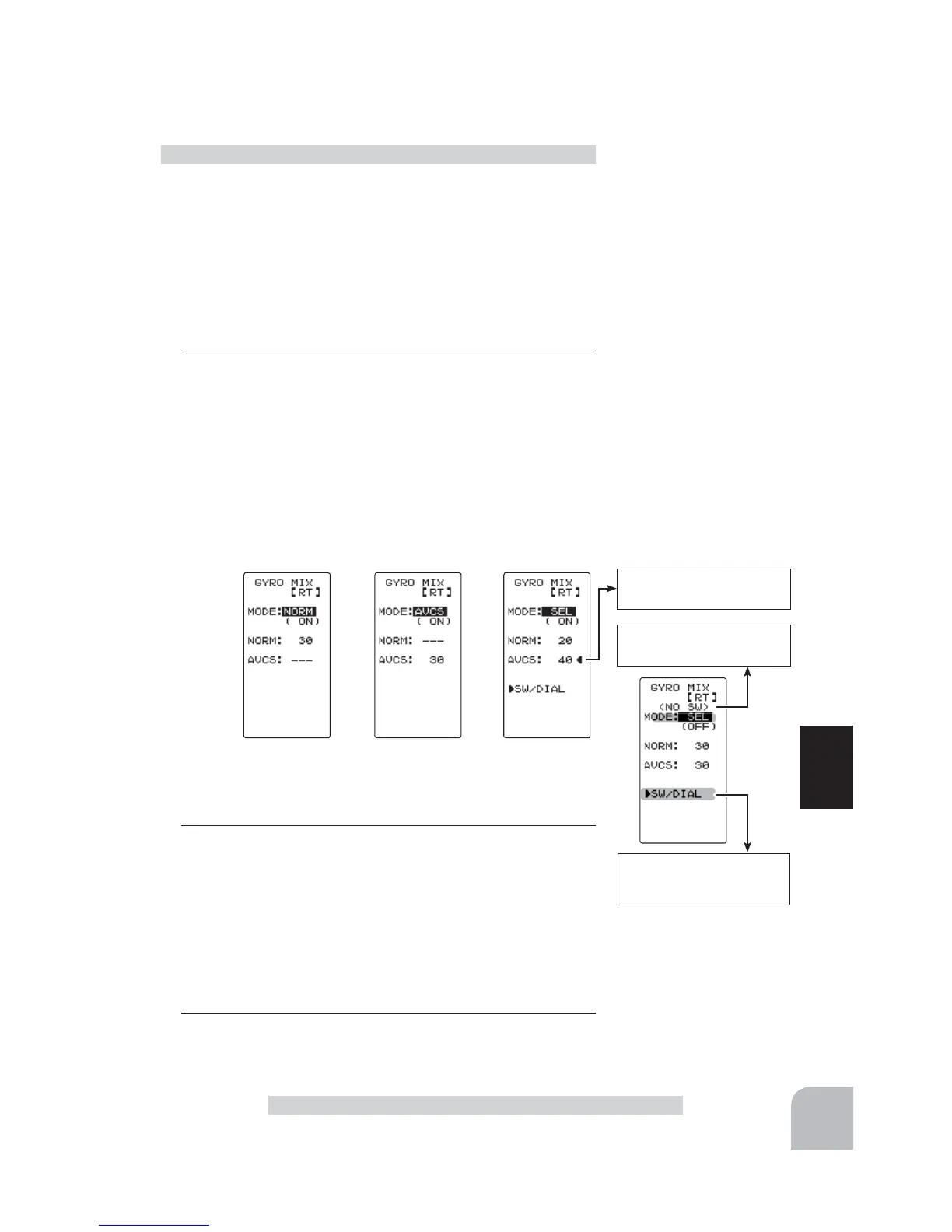

Function selection (MODE)
INH, NORM, AVCS, SEL
NORMAL / AVCS gain
(NORM / AVCS)
0 ~ 120
Initial value:30
Displayed when the Gyro
Mode SW is not used.
"NORM" mode "AVCS"mode
Shows the gyro mode se-
lect switch mode.
"SELE"mode
Function SW
GYRO
SW type
ALT
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously for about
1 second.
Select button
- Select with the (+) or (-) but-
tons.
Setup items
MODE : Gyro mode
NORM :
Normal mode gain
AVCS : AVCS mode gain
