4-4 Setting the Conditions
Here, set the conditions under which data is retrieved. The conditions once set are saved to the setting file, so
the same conditions are automatically set when the setting file is read next and after.
Set “measurement conditions”, “sensor sensitivity,” and “alarm monitoring conditions” sequentially in this order.
* “Measurement conditions” and “sensor sensitivity” must be set. Set “alarm monitoring conditions” as needed.
4-4-1 Setting measurement conditions

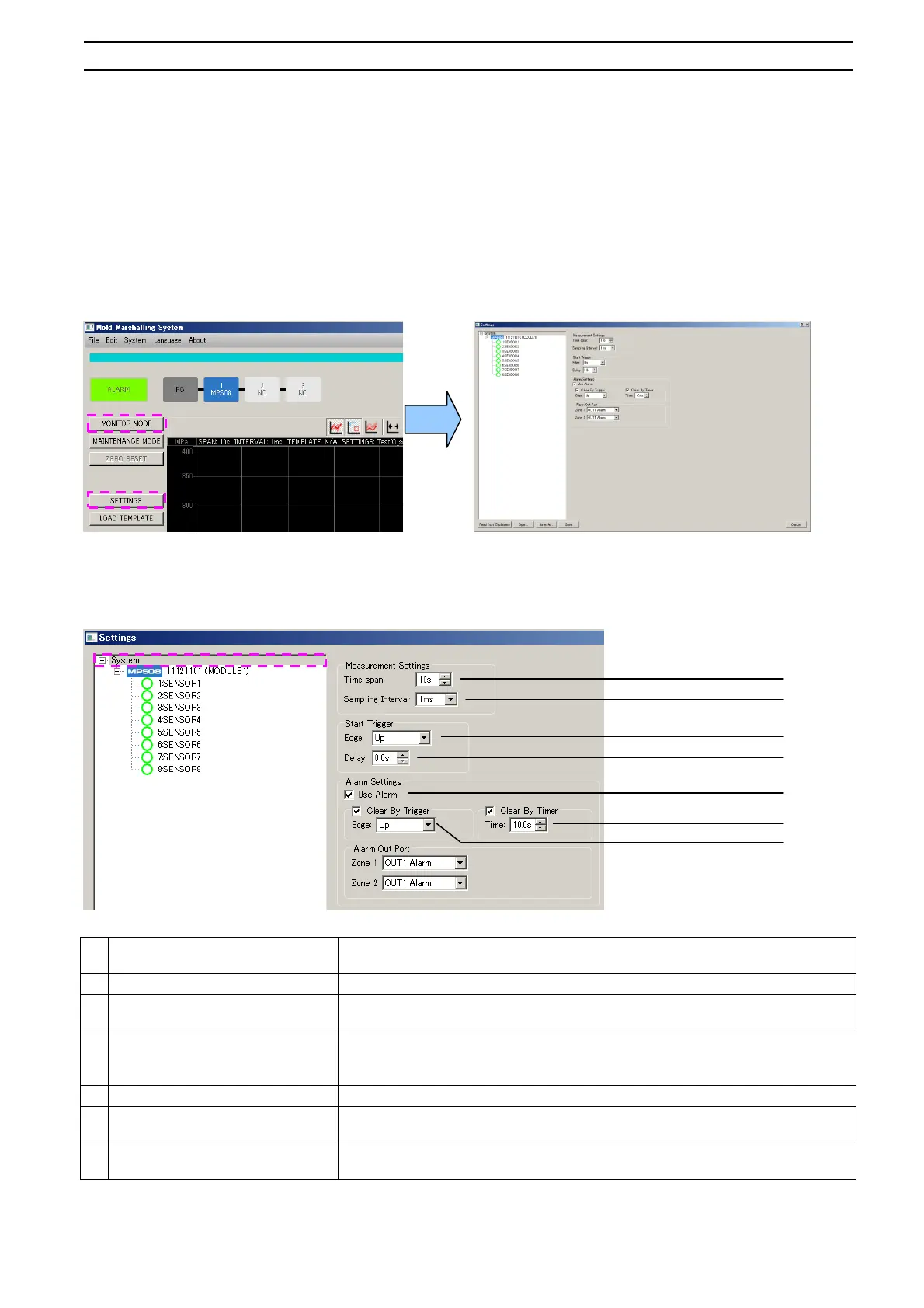

Click the SETTINGS button. The measurement conditions setting screen appears.
* MONITOR MODE must be selected in advance.
Make settings related to measurement.
Measurement time (Time span)
Set in units of seconds from 1 to 120. Set a shorter time than the molding
cycle time.
Select one from 1, 5, 10, and 20 ms.
Select according to the specifications of the signal input from the molding
machine. When the mold close complete signal is connected, select “Up”.
Measurement starts after the lapse of the specified time after input of the
trigger signal. When the mold close complete signal is connected, set 0
second.
Select the check box to enable the output of an alarm signal.
Clear Alarm setting by timer
The alarm signal is automatically cleared in the specified time after output
of the alarm signal.
Clear Alarm setting by trigger
Used when the alarm signal is to be cleared by the external trigger signal.
Set according to the output signal of the connection destination.
