8. Measuring with an External Measuring Device
The pressure measuring amplifier MPS08 can output voltage according to the pressure value.
This section explains how to connect the system to an external measuring device and view pressure waveforms.
8-1 Connecting an External Measuring Device
 Connect an external measuring device to the voltage output connector (D/A Output） by referring to the
following.
* A DSUB25 connector should be prepared by the customer.

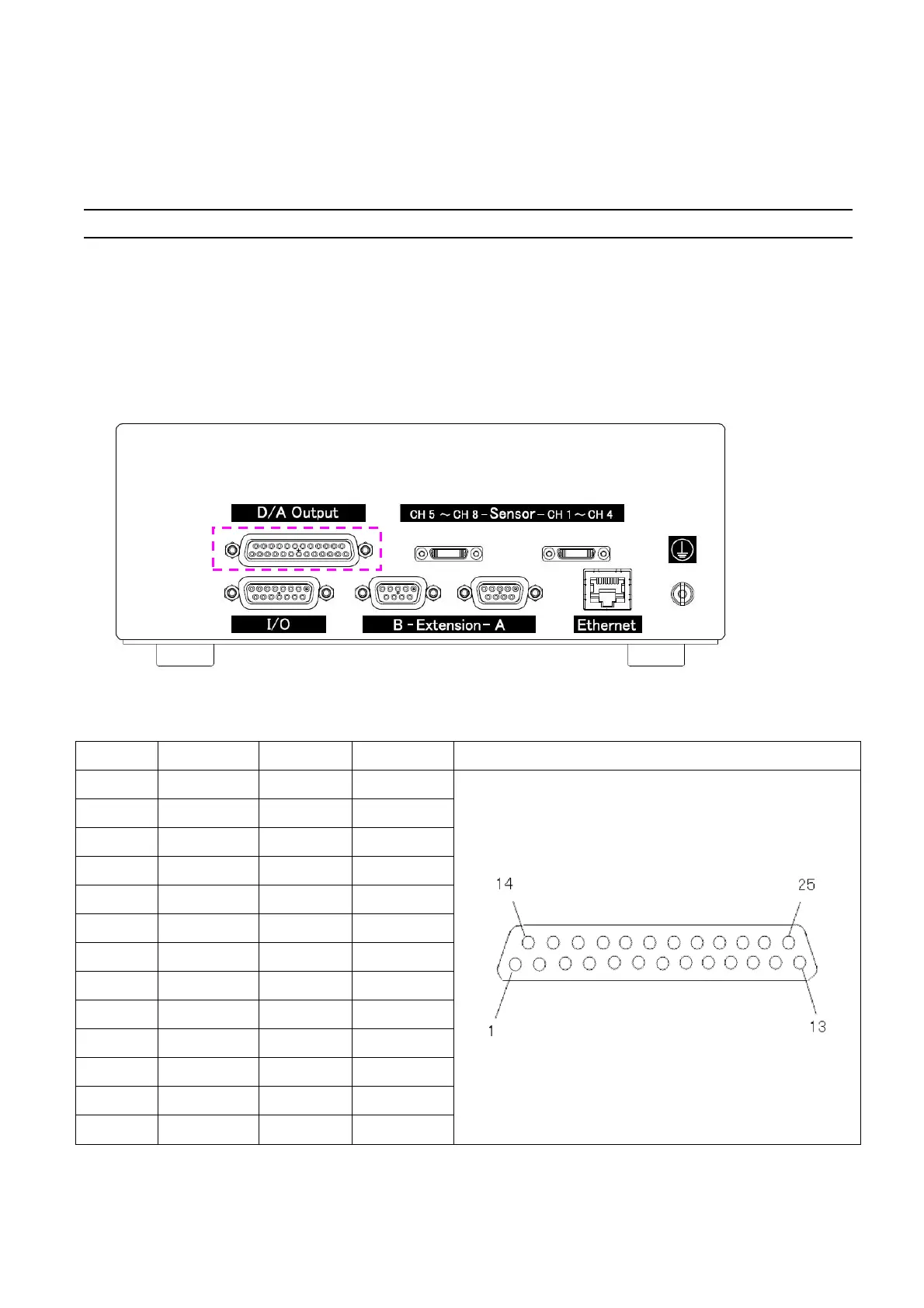

●D/A output connector
●DSUB25 connector pin assignments
Pin No.
Signal name
Pin No.
Signal name
Pin assignments
1
Not used
2
Not used
14
Not used
3
Not used
15
Not used
4
Not used
16
Not used
5
Not used
17
Not used
6
CH8 output
18
GND
7
CH7 output
19
GND
8
CH6 output
20
GND
9
CH5 output
21
GND
10
CH4 output
22
GND
11
CH3 output
23
GND
12
CH2 output
24
GND
13
CH1 output
25
GND
