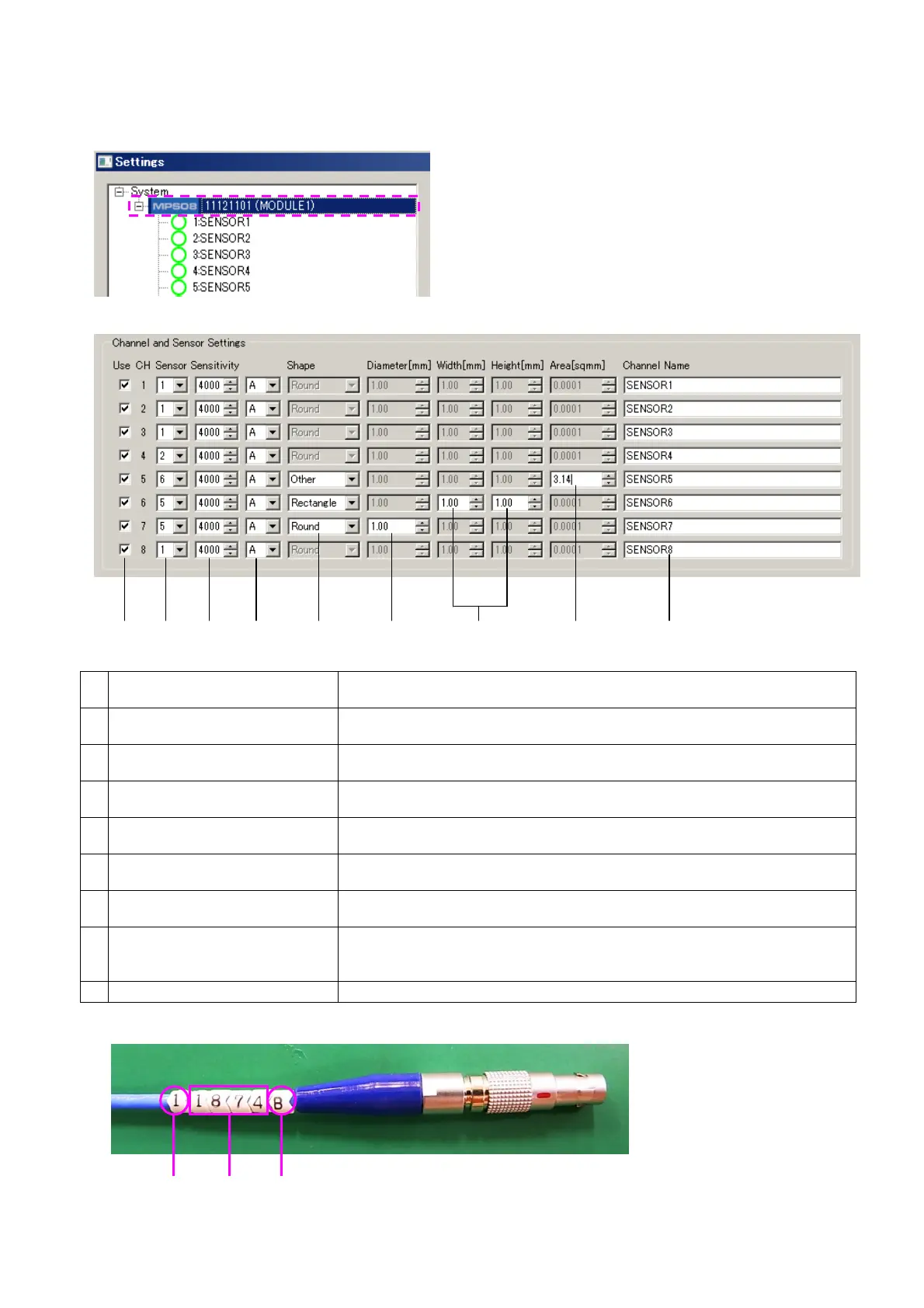

4-4-2 Setting sensor sensitivity
Set the sensitivity of sensors after setting the measurement conditions. Click the inside of the dotted frame in
the following figure.
The following setting window appears.
Enable/disable measurement
CH
Check the channel(s) to be measured. For the unchecked channel,
waveforms are not displayed even when the sensor is connected.
Select the type of a sensor. Select the first digit of the number attached to
the sensor cable.
Input of sensor sensitivity
(numeric value)
Input the sensitivity (numerical value) of a sensor. Input the second to fifth
digits of the number attached to the sensor cable.
Input of sensor sensitivity
(Alphbet)
Input the sensitivity (symbol) of a sensor. Input the alphanumerical value
at the end of the number attached to the sensor cable.
Selection of shape of pressure
receiving surface
This setting is required when a button type sensor is selected. Select
“Round”, “Rectangle”, or “Other”.
Input of tip diameter of round
pin
This setting is required when a button type sensor is selected. Input the
tip diameter of a pressure transmission pin.
Input of tip size of square pin
This setting is required when a button type sensor is selected. Input the
dimensions of the tip of a pressure transmission pin.
Input of sectional area of tip of
pin
This setting is required when a button type sensor is selected. The
cross-sectional area of the tip of a pressure transmission pin can be input
directly.
Input a channel name in up to 16 alphanumeric characters.
●Selection of sensor type and input of sensor sensitivity
