6-4 Waveform Display Settings

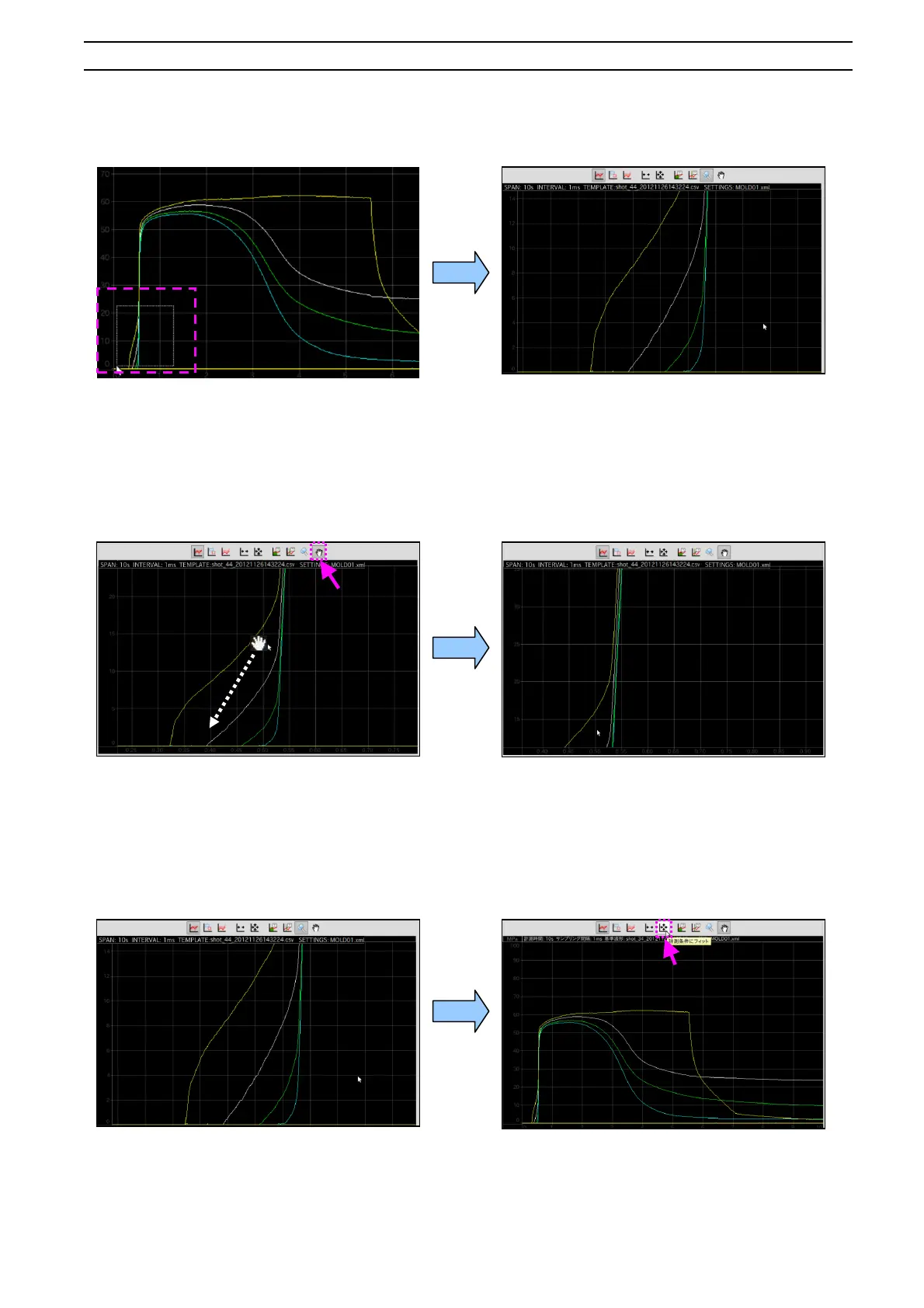

6-4-1 Enlarging waveforms (zoom)
Using the “Zoom” button on the toolbar, select the part to enlarge.
* Mouse operation: Enclose the start point to the end point of the part to be enlarged, and release the mouse
button.
6-4-2 Moving the waveform position
A position in the enlarged part can be moved by using the “Hand” button on the toolbar.
* Mouse operation: Drag the position to be moved to the target position and then release the mouse button.
6-4-3 Displaying the entire waveforms (zoom out)
The entire waveform display can be restored by using the “Fit to measurement conditions” button on the
toolbar.
* The full scale of the pressure display can be set by selecting [System] from the main menu → [Display setting]
→ [Full scale]. (Set to 200 MPa by default)
* To zoom out in only the direction of time axis, press the “Fit to measurement time” button. (→ Page 22)
