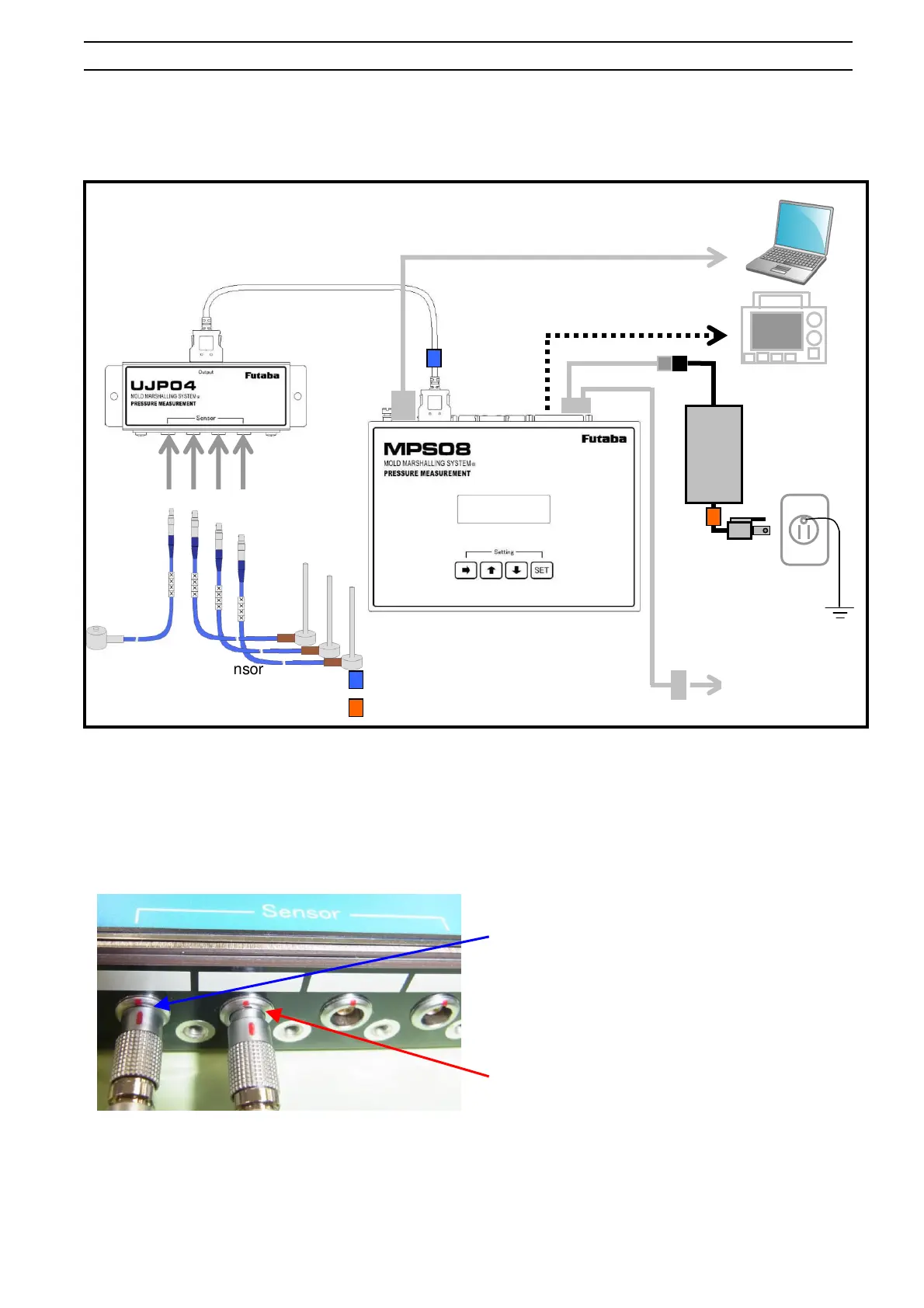

2-5 Connections in System
Connect the components in order of the numbers shown in the following figure.
Connect the power supply ⑨ after completing the connections ① to ⑧.
① Connect the sensors to the Junction box.
While aligning the red marks on each of the Junction box connector and sensor plug, insert the plug.
Ensure that the sensor plugs are inserted to the bottom.
Bad: Not inserted to the bottom.
OK: Inserted to the bottom.
Molding machine,
controller
External measuring
instrument etc.
Ferrite core (E04SR241336A)
Ferrite core (E04SR200935A)
To Next Page
