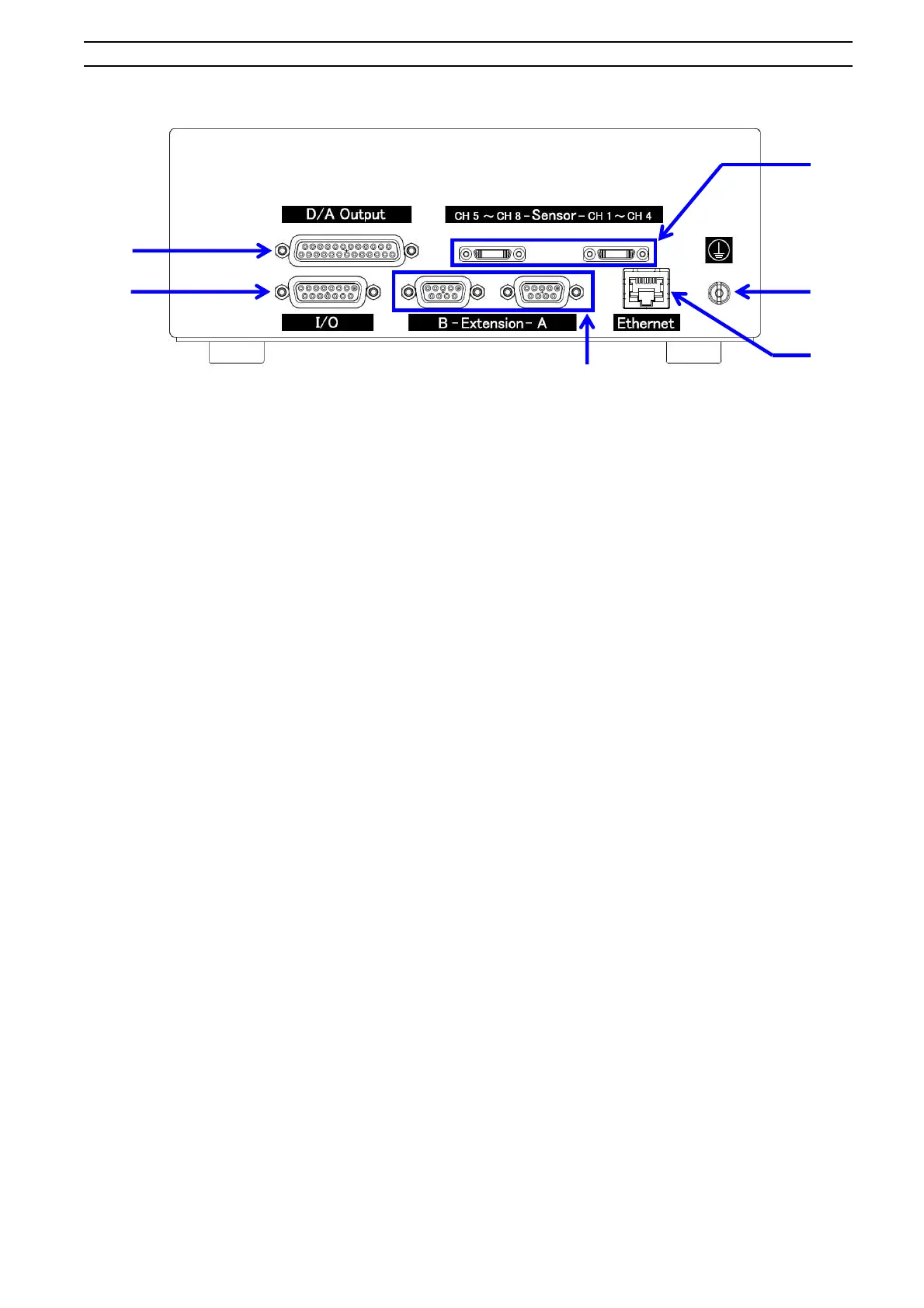

1-2 Rear
① Junction box connector .................................... Connected to the Junction box using the dedicated Junction
cable. Two Junction boxes can be connected.
② Grounding terminal .......................................... Terminal for ground.
③ Wired LAN jack ................................................ Connected to PC using the LAN cable.
④ Connector for expansion .................................. Reserved for expansion in the future.
⑤ I/O cable connector ......................................... Inputs a trigger signal and alarm clear signal, outputs an
alarm signal, and also supplies power.
⑥ Voltage output connector ................................. Connected to external measuring equipment such as the
data logger and oscilloscope.
