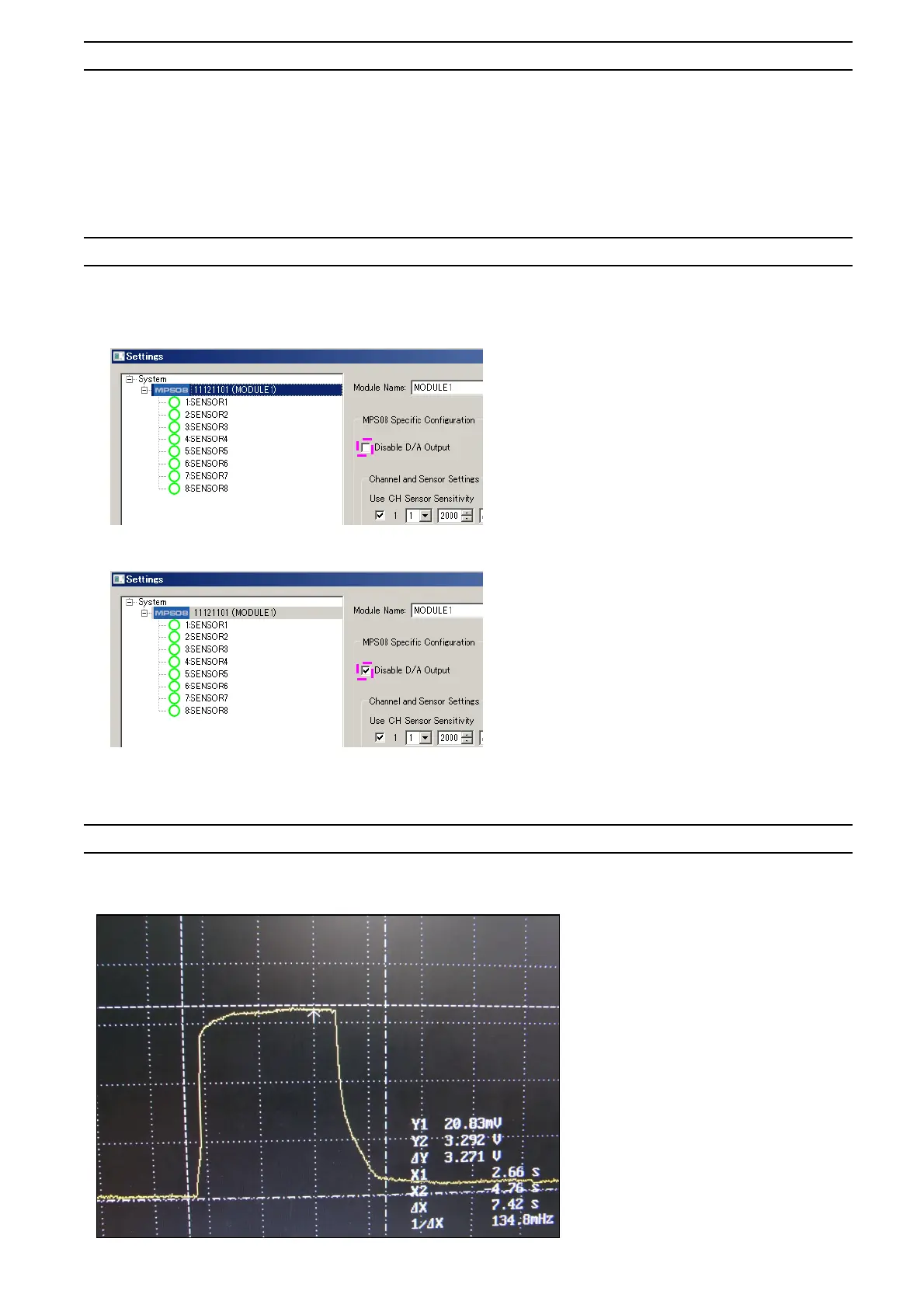

8-2 Relationship between Output Voltage and Pressure Value
Set the voltage collection conditions of the external measuring device by referring to the following.
50 mV is output per 1 MPa. (Voltage output range: 0 to 10 V)
(Example: When pressure is 100 MPa, 5 V is output.)
8-3 Enabling the Voltage Output Function
Use the conditions setting window to enable or disable the voltage output function.
□ Disable D/A output: Voltage is output.
☑ Disable D/A output: Voltage is not output.
* Voltage output is enabled by default.
8-4 Observing Pressure Waveforms
The following is a screen example of a commercially available data logger.
To Next Page
