1. Names and Major Functions of Components
1-1 Front

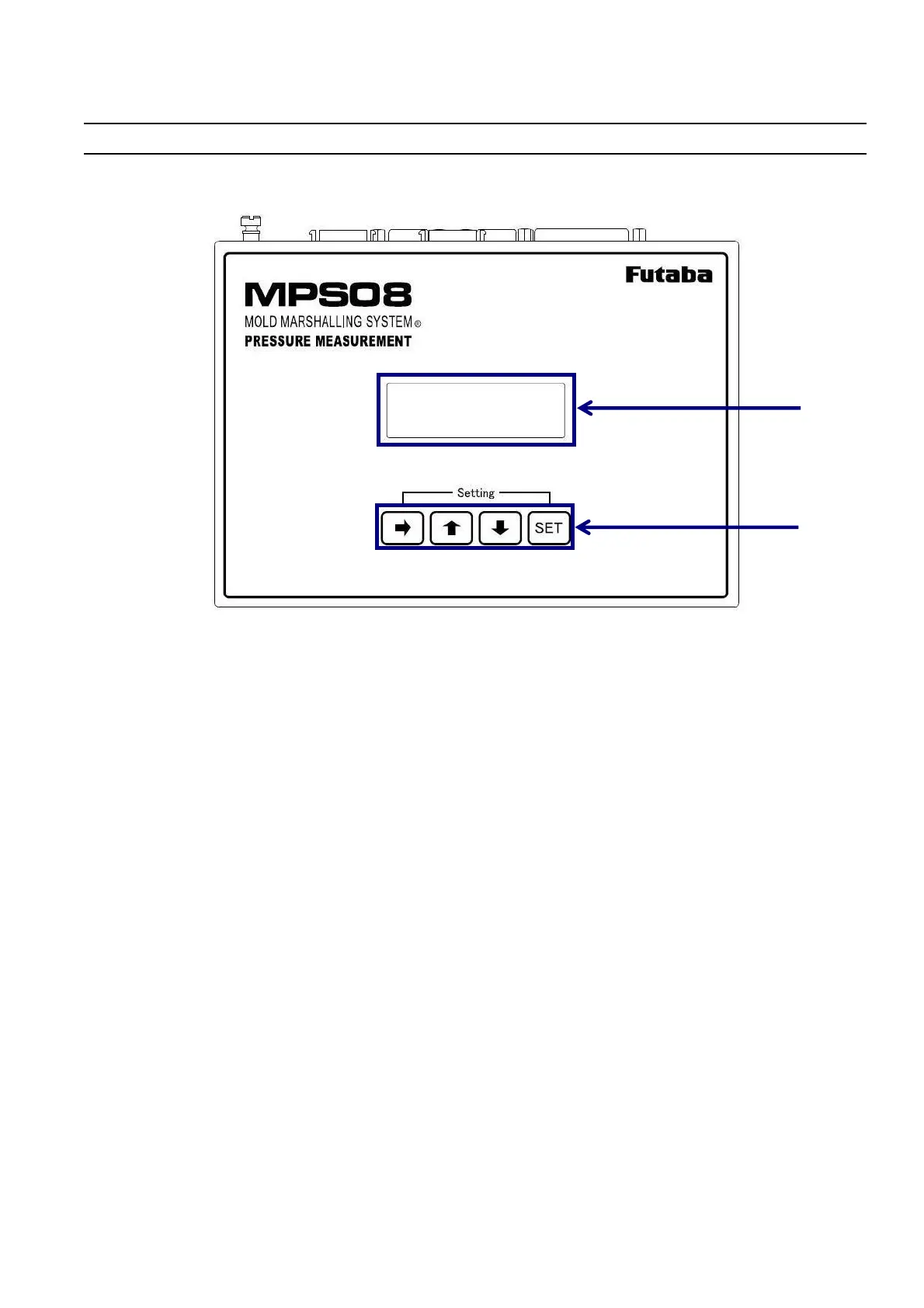

① Display panel ................................................... Displays the status of measurement, setting file name, shot
counter, and setting conditions in the amplifier.
② Control keys “→”, “↑”, “↓”, “SET”....................... “→” key: Changes the display content when held down.
“↑”, “↓” key: Changes the setting.
“SET” key: Fixes the setting changed.
In monitor mode, pressing this starts measurement. (Usable
as the manual trigger)
①
②
