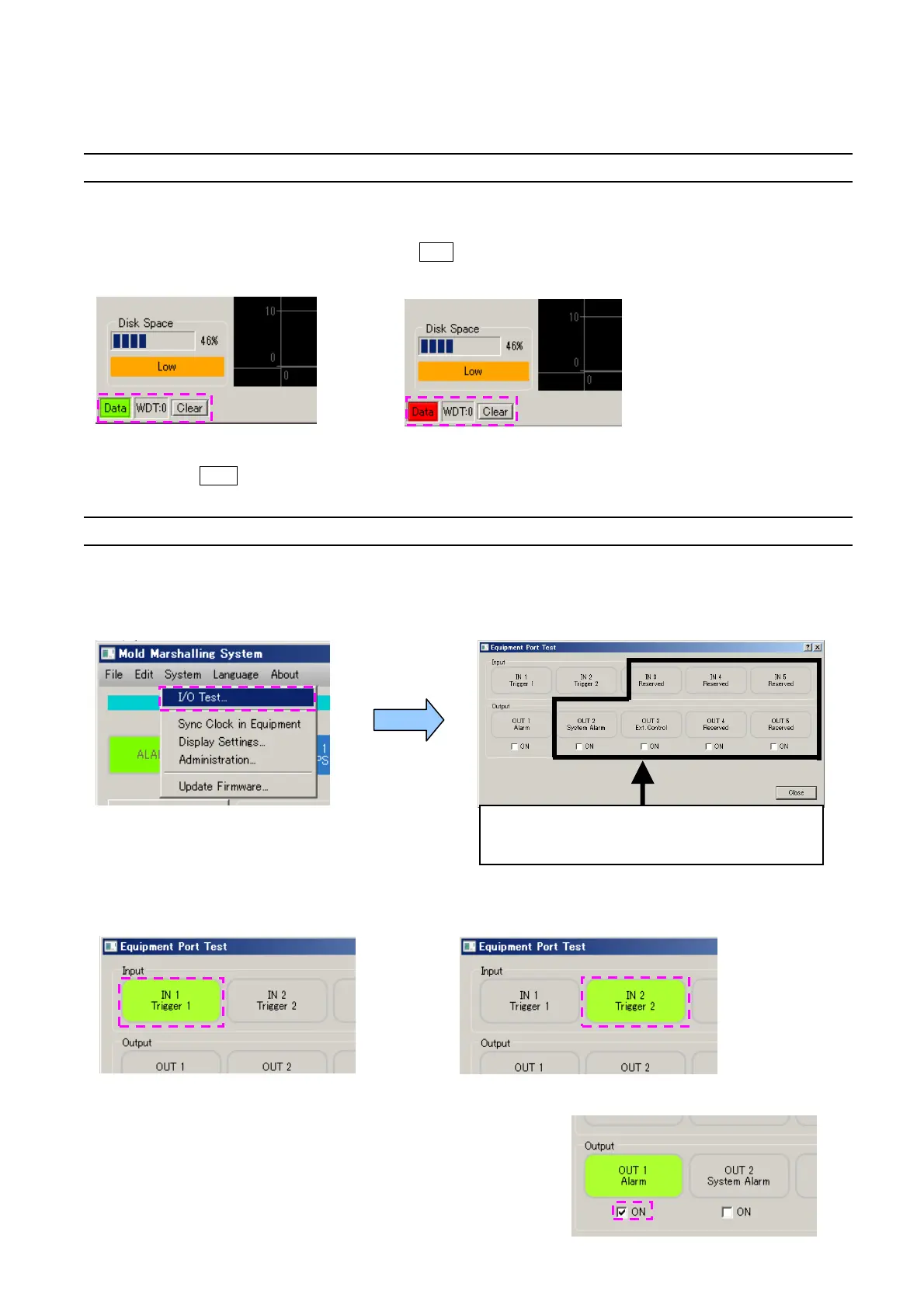

7. Checking the Operation
This section explains how to check whether the system runs normally.
7-1 Checking the Communication between Amplifier and PC
The amplifier communicates with the PC through LAN connection. Whether the communication is implemented
normally can be checked with the color of the Data mark at the lower left of the operation window. (Green:
Normal, Red: Faulty)
* [WDT: ] indicates the number of times of self-recovery performed when communication was suspended.
Clicking the Clear button clears the count to 0.
7-2 Checking the I/O Signal
Check whether the connected I/O signal works normally.
From the main menu, select [System] → [I/O Test...].
Checking the operation of input signal
Input a signal (trigger signal or clear alarm signal). If it is input normally, the signal name is displayed in green
as shown in the following figure.
When trigger signal IN1 is input When clear alarm signal IN2 is input
Checking the operation of output signal
This is reserved for expansion in the future.
It is excluded from adaptation at the time of
writing this instruction manual.
Check the “ON” check box shown in the right figure. The signal
name illuminates in green and an alarm signal is forcibly output.
Check whether the signal operates normally at the output signal
connection destination.
