Supplement to alarm monitoring settings

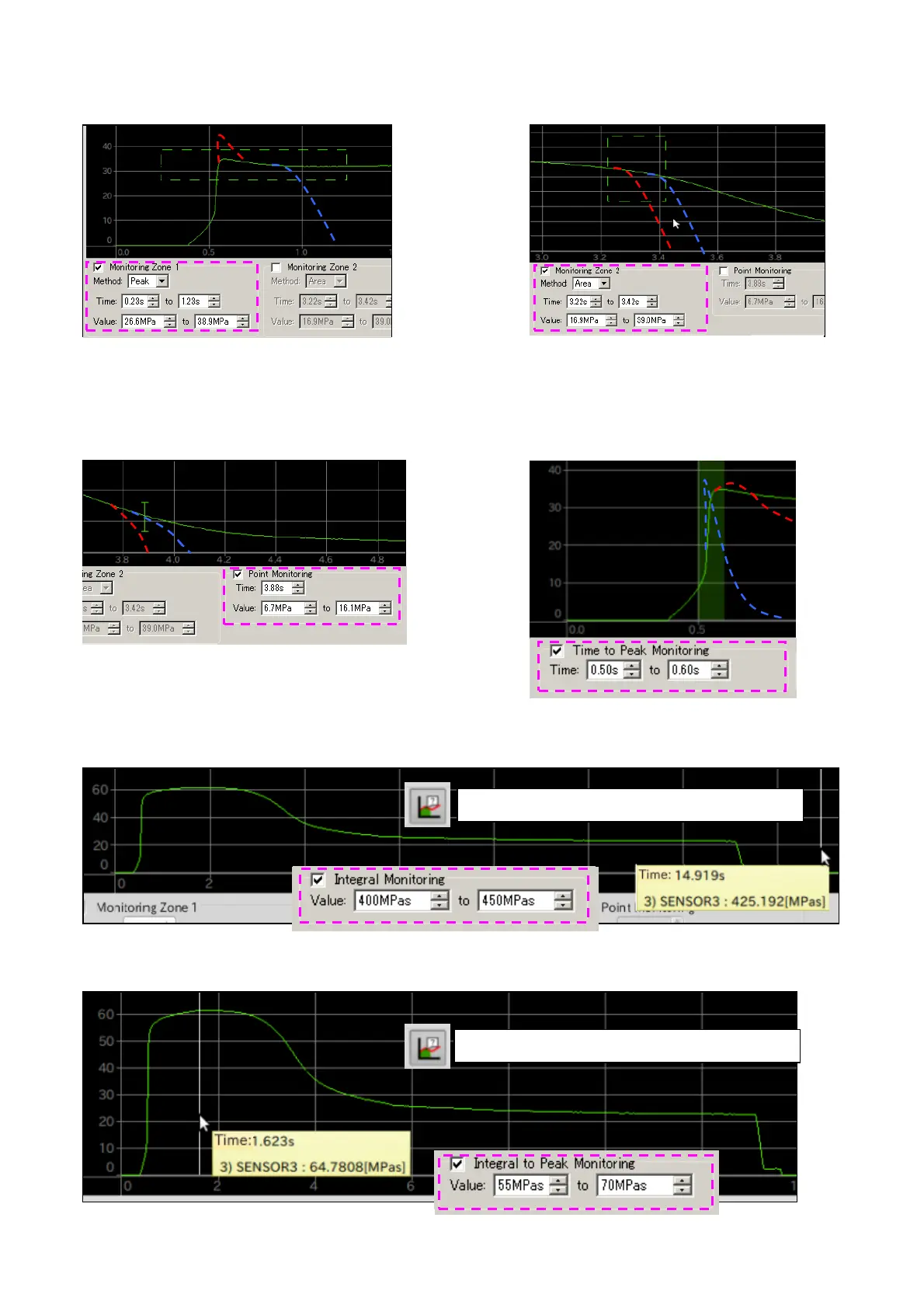

① ② Monitoring zone
③ Point monitoring ④ Time-to-peak monitoring
⑤ Integral m onitoring
⑥ Integral to peak monitoring
<Peak judgment>
Blue dotted waveform: OK; Red dotted
waveform: Alarm
Use the integral value cursor on the toolbar to refer to the current value.
<Area judgment>
Blue dotted waveform: OK; Red dotted
waveform: Alarm
Blue dotted waveform: OK; Red dotted
waveform: Alarm
Blue dotted waveform: OK; Red
dotted waveform: Alarm
Use the integral value cursor on the toolbar to refer to the current value.
