FUTABA Mold Marshalling System MPS08 - Page 44

41

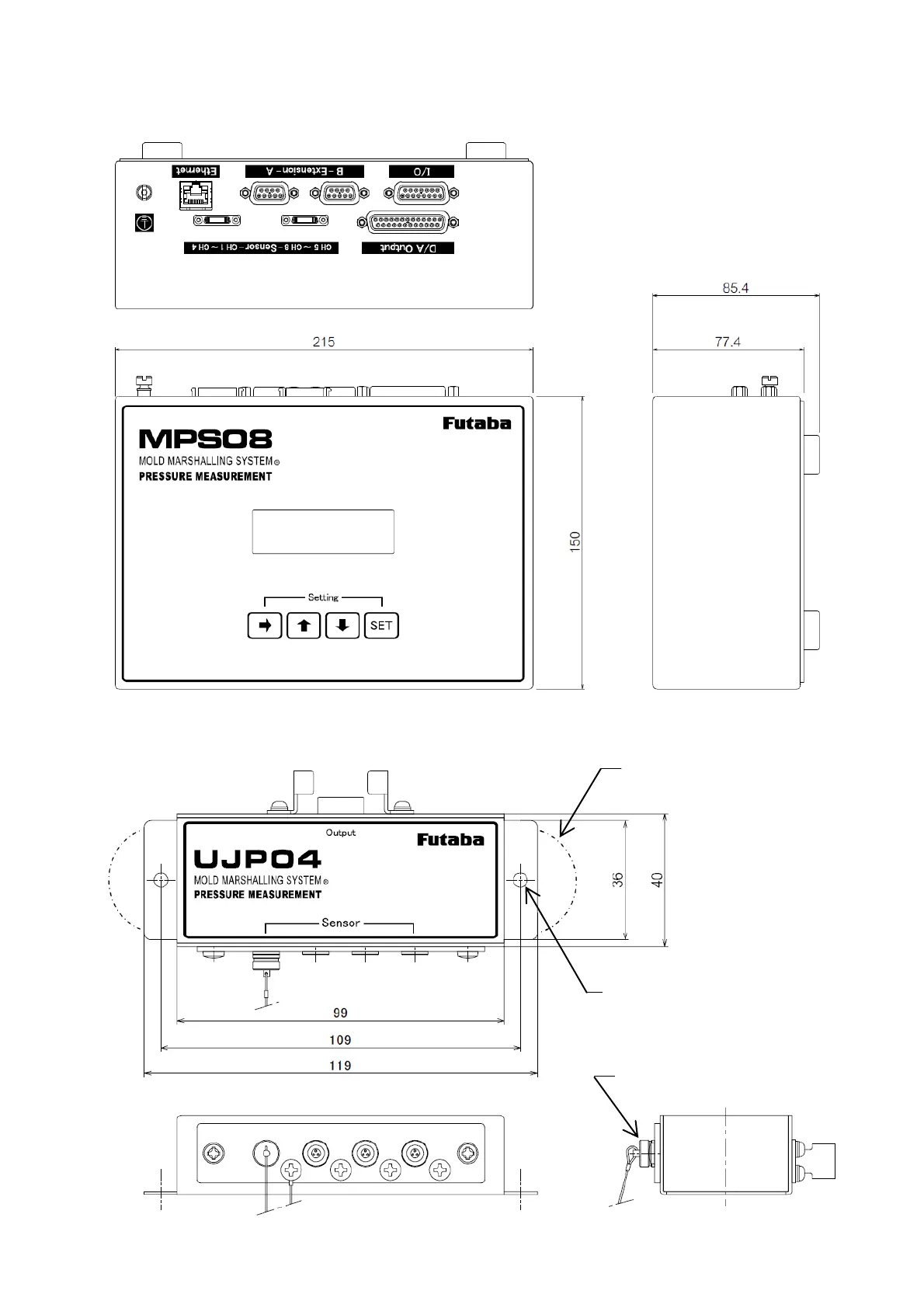

 Outline drawing [Unit: mm]
<Pressure measuring amplifier MPS08>
<Junction box UJP04>
Mounting hole φ 4.2 x 2
* Usable for the mounting magnet (option)
Connector dust cap (ADUJP)
* Option (sold separately)
Mounting magnet (AMUJP)
* Optional item (sold separately)
