8A089X01 Rev 1
SLIM Installation Manual
3/23/2018 Page 20 of 61
2.5 Module Configuration
The Programming Utility is used to configure the Module for use with connected devices.
It enables the user to specify which devices are connected, how the devices are
programmed, and how those devices will interact with the radio and accessories.
2.5.1 General Navigation
The Configuration Utility consists of two main screens. The first screen displayed after
opening the utility is the Modify Devices screen. From here a user identifies the specific
equipment and accessories used in their specific setup. These selections determine the
options available to the user. The second screen shown after the user has selected their
equipment is the Map Actions screen. From here the user is able to setup action
connections between devices and customize options available based on their equipment.
2.5.1.1 Modify Devices Screen
The Modify Devices screen is the starting point for setting up a new Module configuration.
Before the Module can be configured, the hardware must be identified. The top row of the
Programming Utility contains several drop-down boxes which are used to select the
particular equipment the Module will interface with. Note that some of the drop-down
boxes will be greyed-out and unavailable until other selections are made.

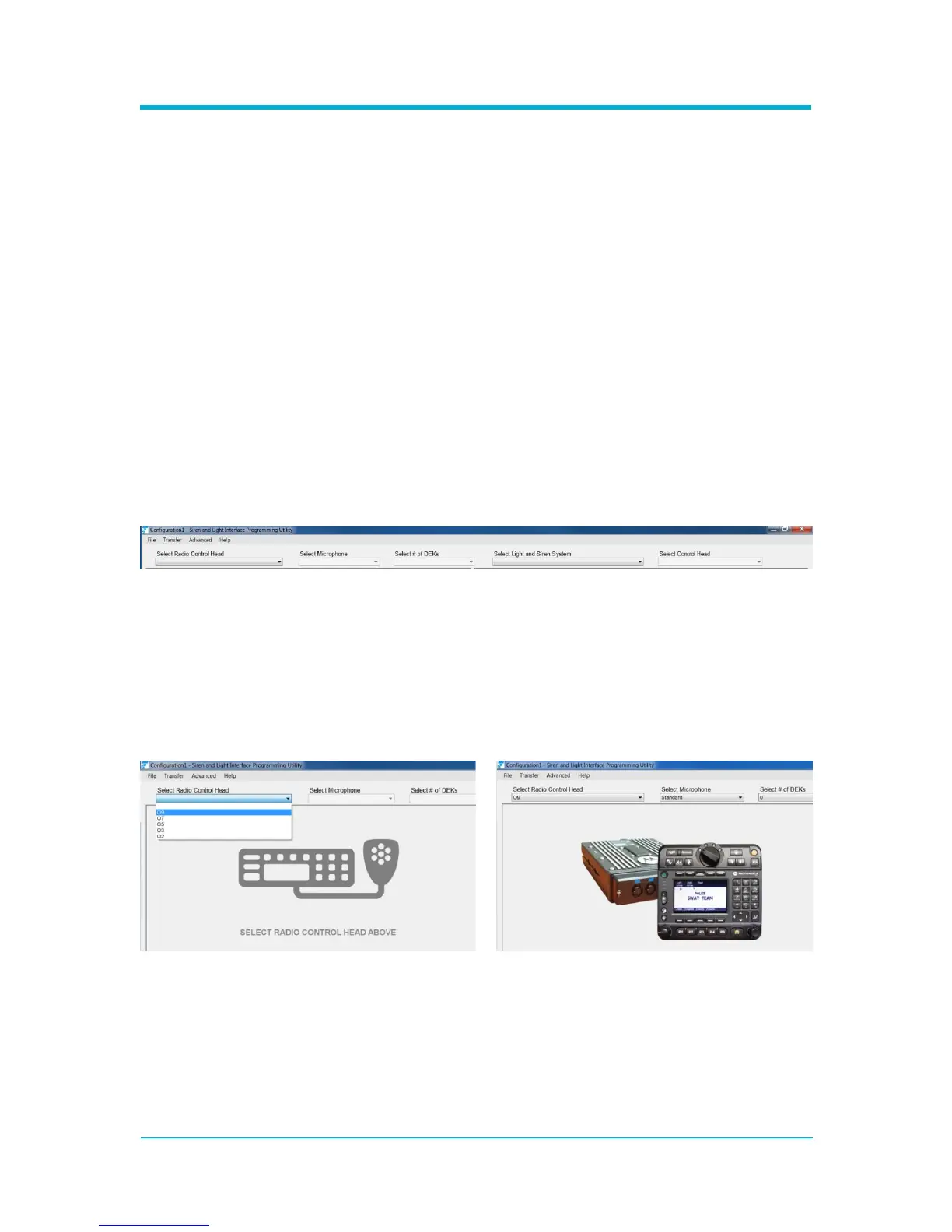

Figure 2-14 Hardware Selections
2.5.1.1.1 Selecting A Radio Control Head
Selecting a radio control head is the first step to configuring radio hardware. Once the
radio control head is selected the other radio drop-down boxes will be available for
selection and an image of the control head will be displayed in the left pane of the screen
for verification purposes. Additionally, the bottom information pane will be updated to show
useful information about the radio hardware.
Figure 2-15 Radio Control Head (Before & After Selection)
