8A089X01 Rev 1
SLIM Installation Manual
3/23/2018 Page 14 of 61

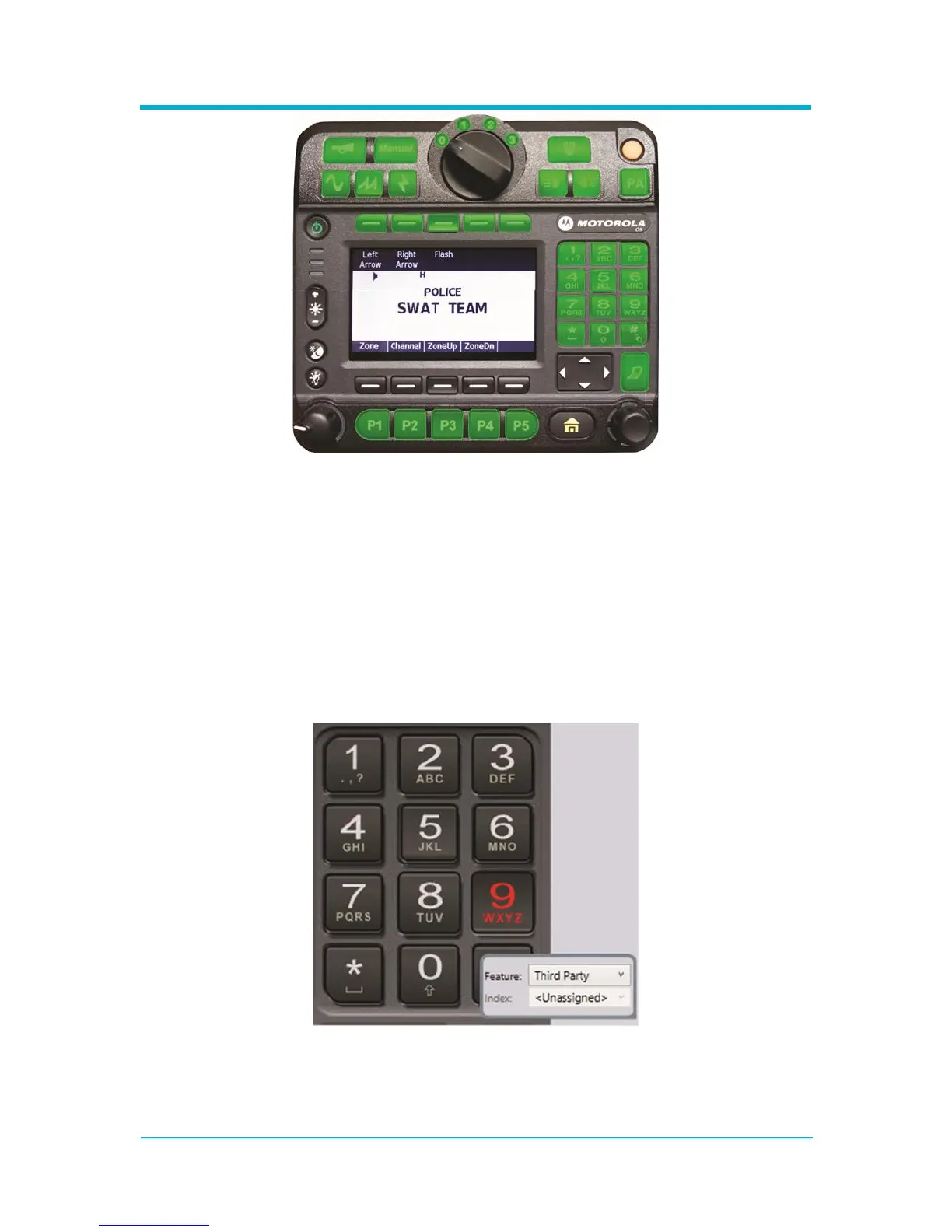

Figure 2-5 O9 Control Head – Third Party Capable Buttons
2.2.1.2.2 Keypad Buttons
Use the CPS to program keypad buttons and set their feature to “Third Party”. For
example, open the CPS, from the left menu open the Radio Ergonomics Configuration
submenu, open the Controls submenu, select Keypad, and then for each desired button
set the button’s feature to “Third Party”. Note that keypad buttons are the same across all
radio devices. For example, if using a keypad mic and a radio control-head with a keypad
both sets of buttons will be identical. This standard radio functionality is not altered by the
Module.
Radio Ergonomics Configuration > Controls > Keypad > Set Button’s Feature
Figure 2-6 Keypad Button Feature Setting
