Futurecom Siren & Lights Interface Module User Manual

8A089X01 Rev 1
SLIM Installation Manual
3/23/2018 Page 41 of 61

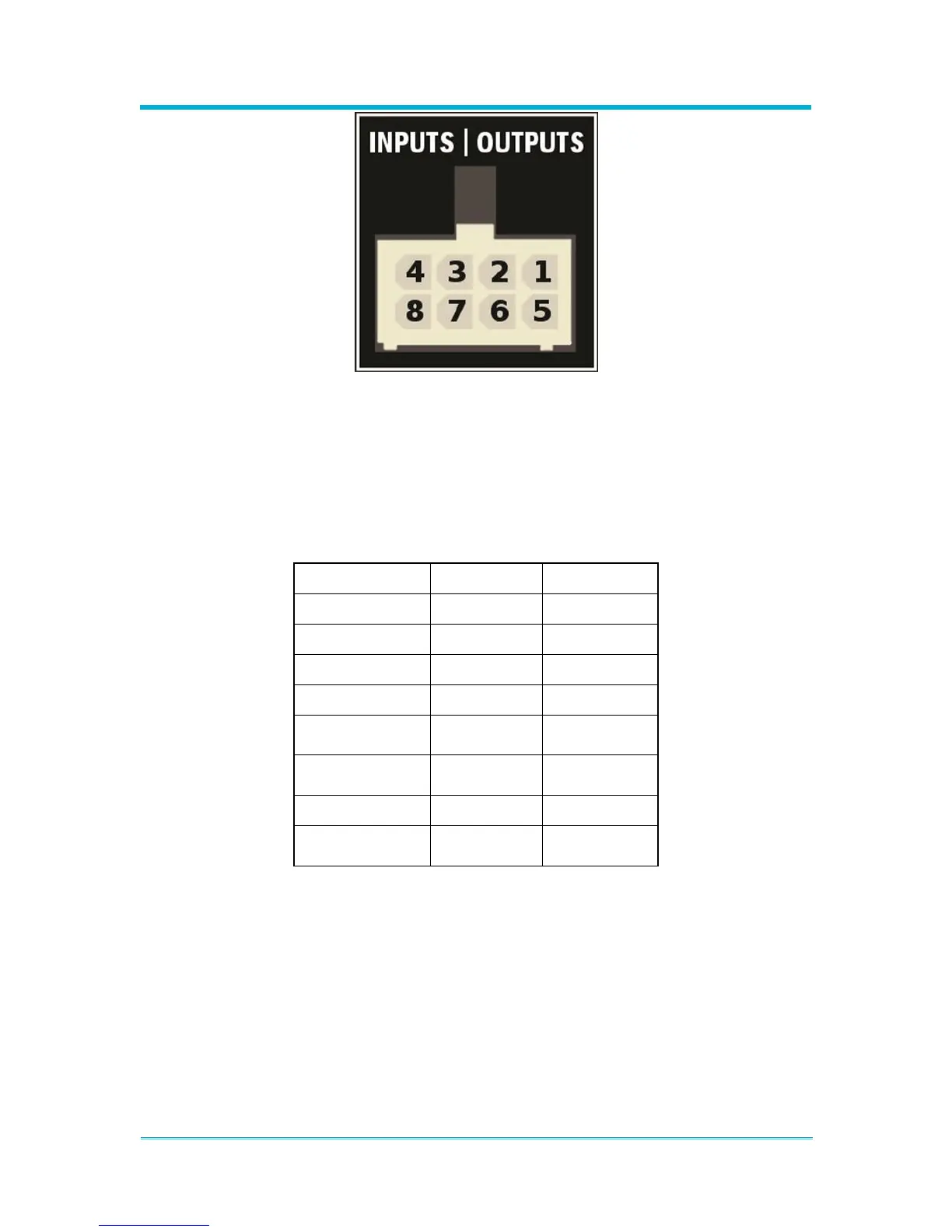

Figure 3-5 GPIO Connector Pinout
3. Properly terminate all unused input/output wires.
4. The function of the input/outputs is set in the Siren and Lights Interface Module
Configuration software utility.
Table 3-2 GPIO Pinout Description Table
Side 1 - Pinout
Description
Color
Pin #1
Input #1
Orange
Pin #2
Input #2
Green
Pin #3
Input #3
Blue
Pin #4
Input #4
Purple
Pin #5
Output #1
Orange
Striped
Pin #6
Output #2
Green
Striped
Pin #7
Output #3
Blue Striped
Pin #8
Output #4
Purple
Striped

Futurecom Siren & Lights Interface Module Specifications

General

Brand	Futurecom
Model	Siren & Lights Interface Module
Category	Control Unit
Language	English
