8A089X01 Rev 1
SLIM Installation Manual
3/23/2018 Page 40 of 61

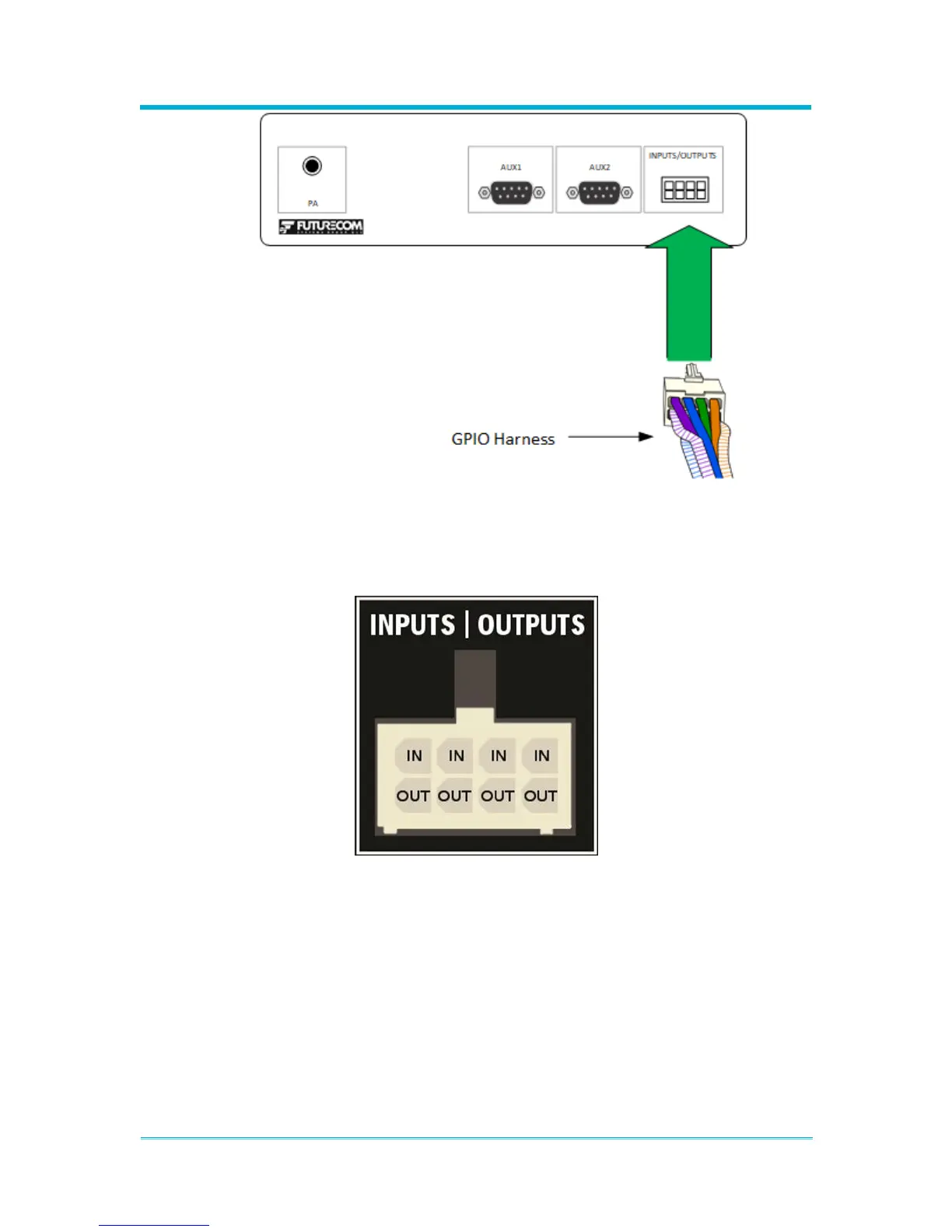

Figure 3-3 GPIO Harness Connection
2. Using appropriately sized wire, extend the input/output wires to external controls
(pinout provided)
Figure 3-4 GPIO Connector Functions
