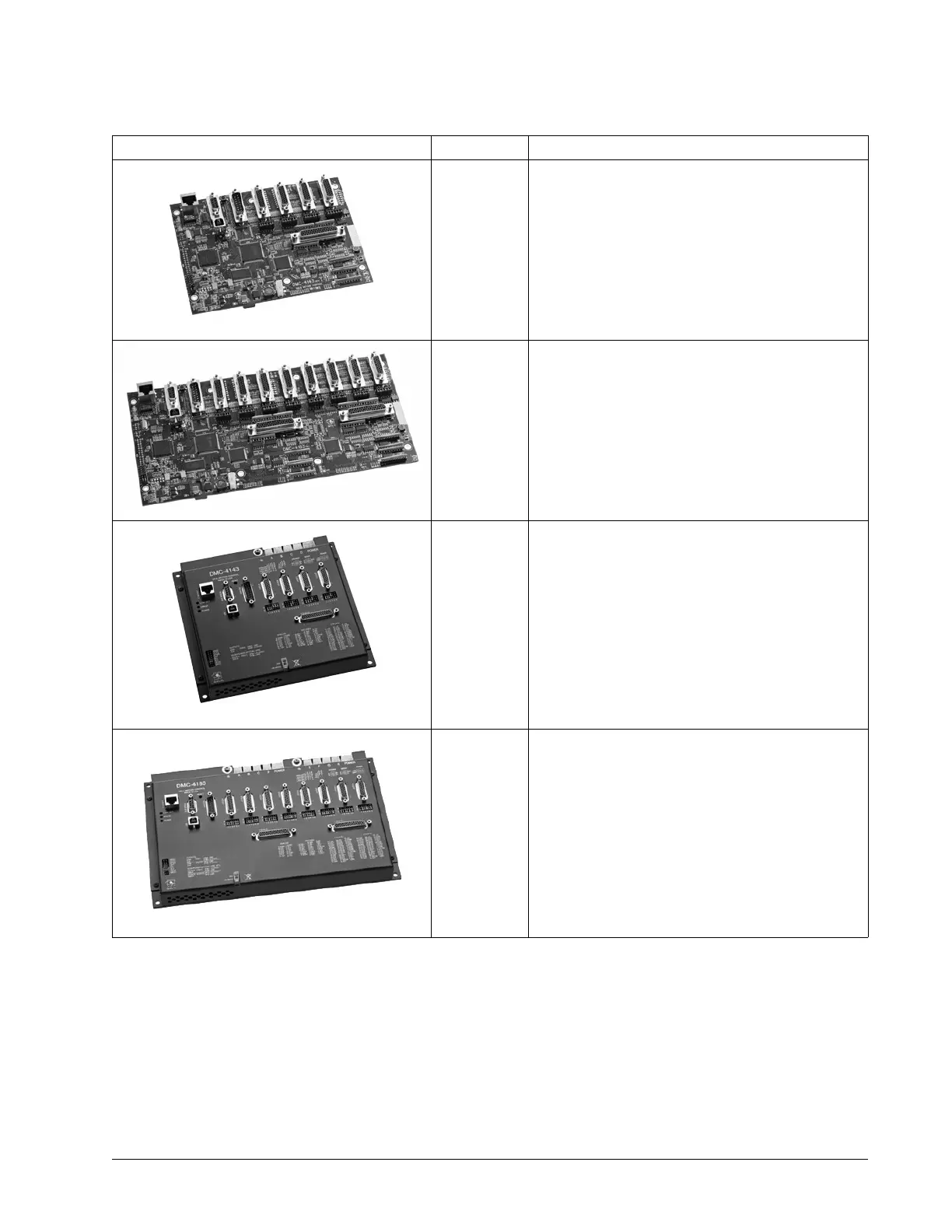

Form Factor (example) Part Number Description
-CARD
DMC-41x3, 1-4 axis model ordered with the -CARD
option.
-CARD
DMC-41x3, 5-8 axis model ordered with the -CARD
option.
-BOX4
DMC-41x3, 1-4 axis model ordered with the -BOX4 option.
This option is required if the DMC-41x3 is ordered with
internal amplifiers, AMP or SDM. This example shows a
DMC-41x3 with an internal AMP.
-BOX8
DMC-41x3, 1-4 axis model ordered with the -BOX8 option.
This option is required if the DMC-41x3 is ordered with
internal amplifiers, AMP and/or SDM. This example shows
a DMC-41x3 with internal AMPs.
Table 1.1: Explanation of different form factor options for the DMC-41x3
The full DMC-41x3 part number is a combination of the DMC controller part number (DMC-41x3), form factor (“-
XXXX(Y)), axis-specific options (-ABCD(Y) and -EFGH(Y)), and optional amplifier types (-DXXXX(Y)), where Y is
customization options for that specific board or set of axis. The layout of the full DMC-41x3 part number is shown
in Figure 1.3 below.
