CHAPTER 2: Checking Out Your Computer
8
Back
Important

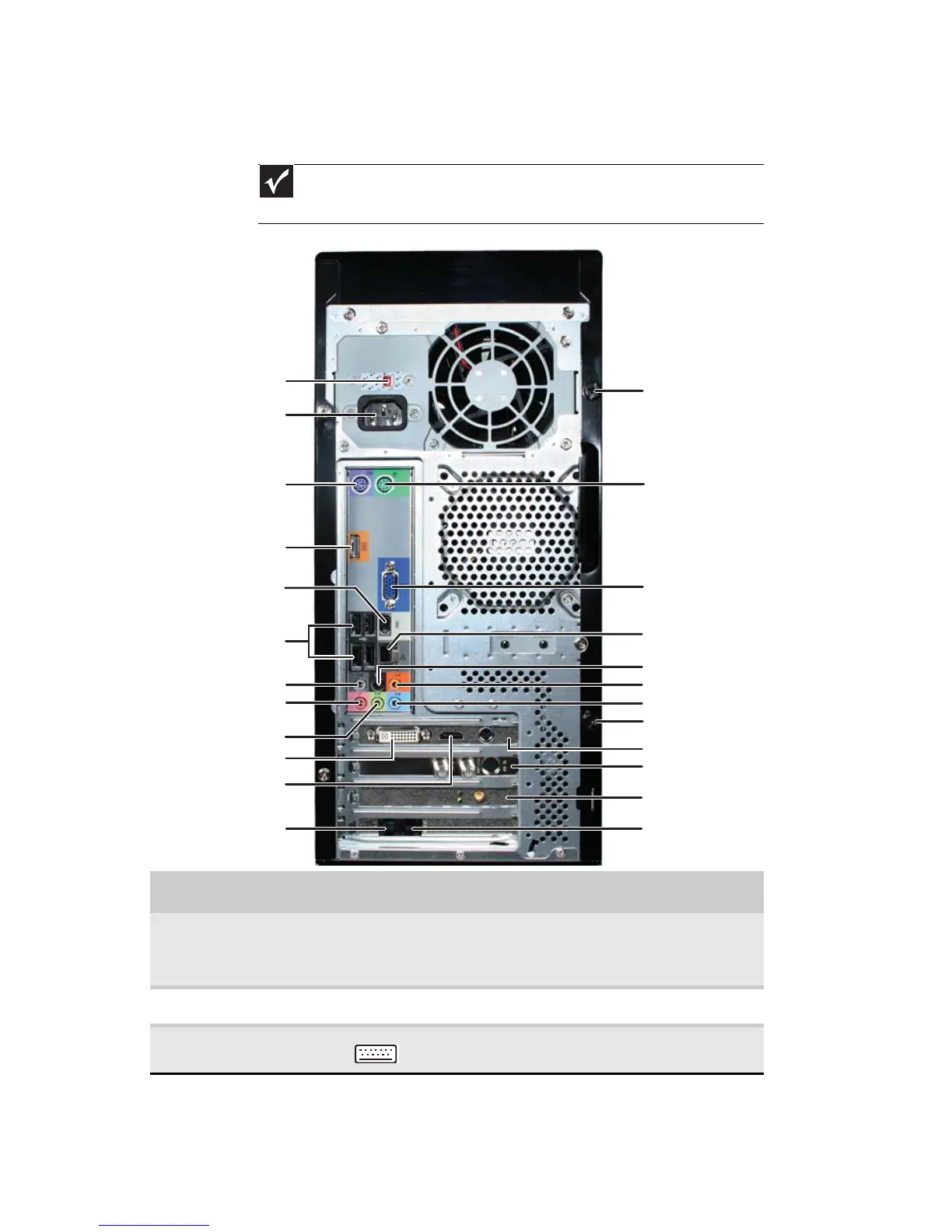

Your computer’s hardware options and port locations may vary from this
illustration.
Component Icon Description
Voltage switch The switch is preset at the factory. Make
sure that this is set to the correct voltage for
your area.
Power connector Plug the power cord into this connector.
PS/2 keyboard port Plug a PS/2 keyboard into this port.
PS/2 mouse port
PS/2 keyboard port
Voltage switch
Power connector
Ethernet (network) jack
Audio in/side speaker jack
Case cover
thumbscrew
Headphone/front
speaker jack
Microphone jack
Rear surround speaker jack
Center/subwoofer jack
USB ports
Video card (optional)
Wireless network
card (optional)
IEEE 1394 port
TV tuner card (optional)
Case cover thumbscrew
HDMI jack (optional)
Monitor (VGA) port
DVI port (optional)
Modem jack (optional)
Telephone jack (optional)
HDMI jack (optional)
S/PDIF output jack
