Three types of registration marks
4-Point Positioning

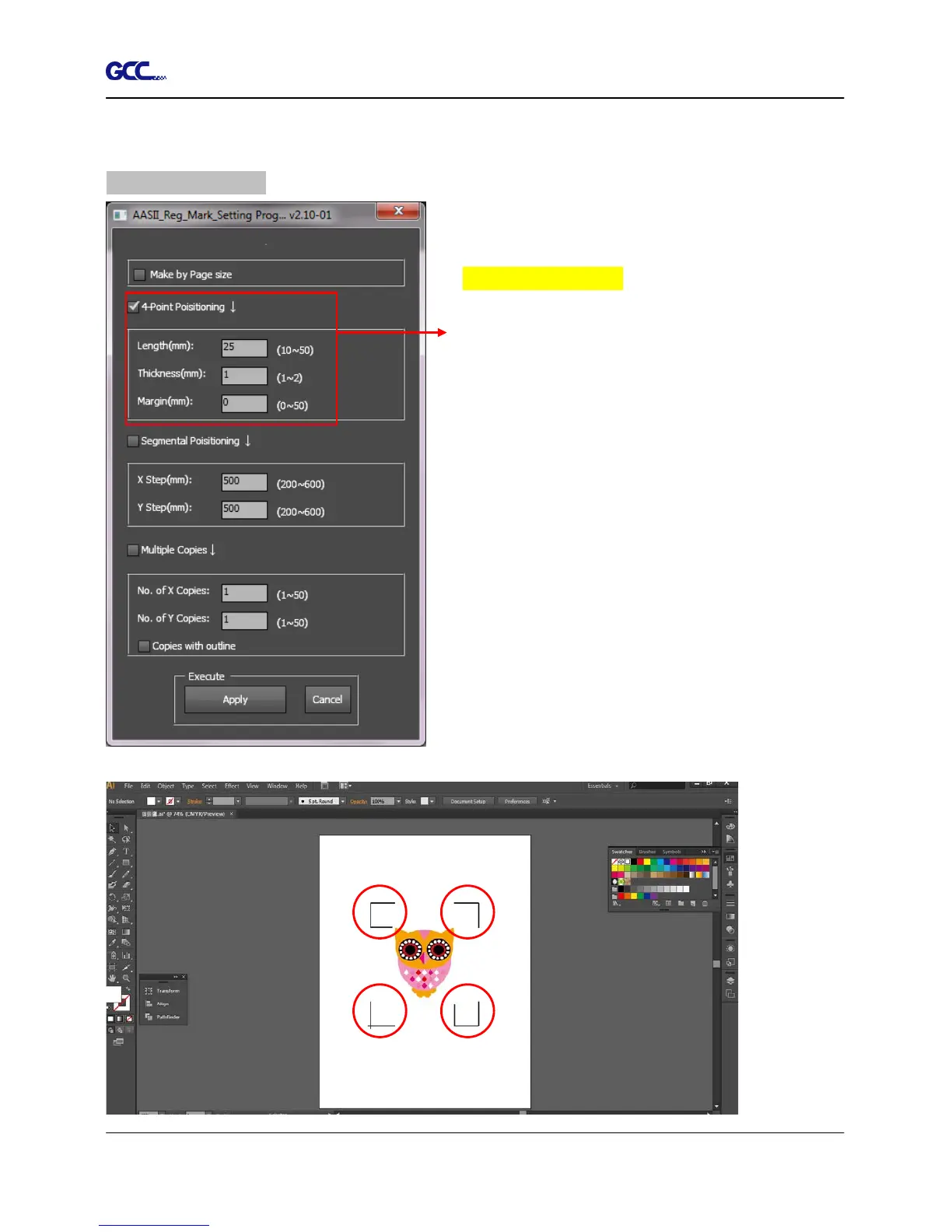

The system will create the 4 marks as shown in the picture below.
4-Point Positioning
 Length: The length of marks
 Range: 5mm~50mm
 Optimized Setting: 25mm
 Thickness: The line thickness of marks
 Range: 1mm~2mm
 Optimized Setting: 1mm
 Margin: The distance between marks and
images
 Range: 0mm~50mm
 Optimized Setting: 5mm
