Puma III User Manual
Installation 2-2
2.2 Stand & Flexible Media Support System (for P3-132)
Please follow procedure below to assemble stand and media support system.
Step 1 Please examine supplied items in the accessory box of stand carton
before you install:
Stand is a optional item for Puma III-60, Item List
：
 2 piece of T-shape stand
 1 piece of stand beam
 20 pieces of M6 screws
 1 piece of M5 L-shape hexagon screw driver
 1 piece of Installation Guide for Stand Set
Step 2
 Remove the plotter body and the accessories from the shipped carton.

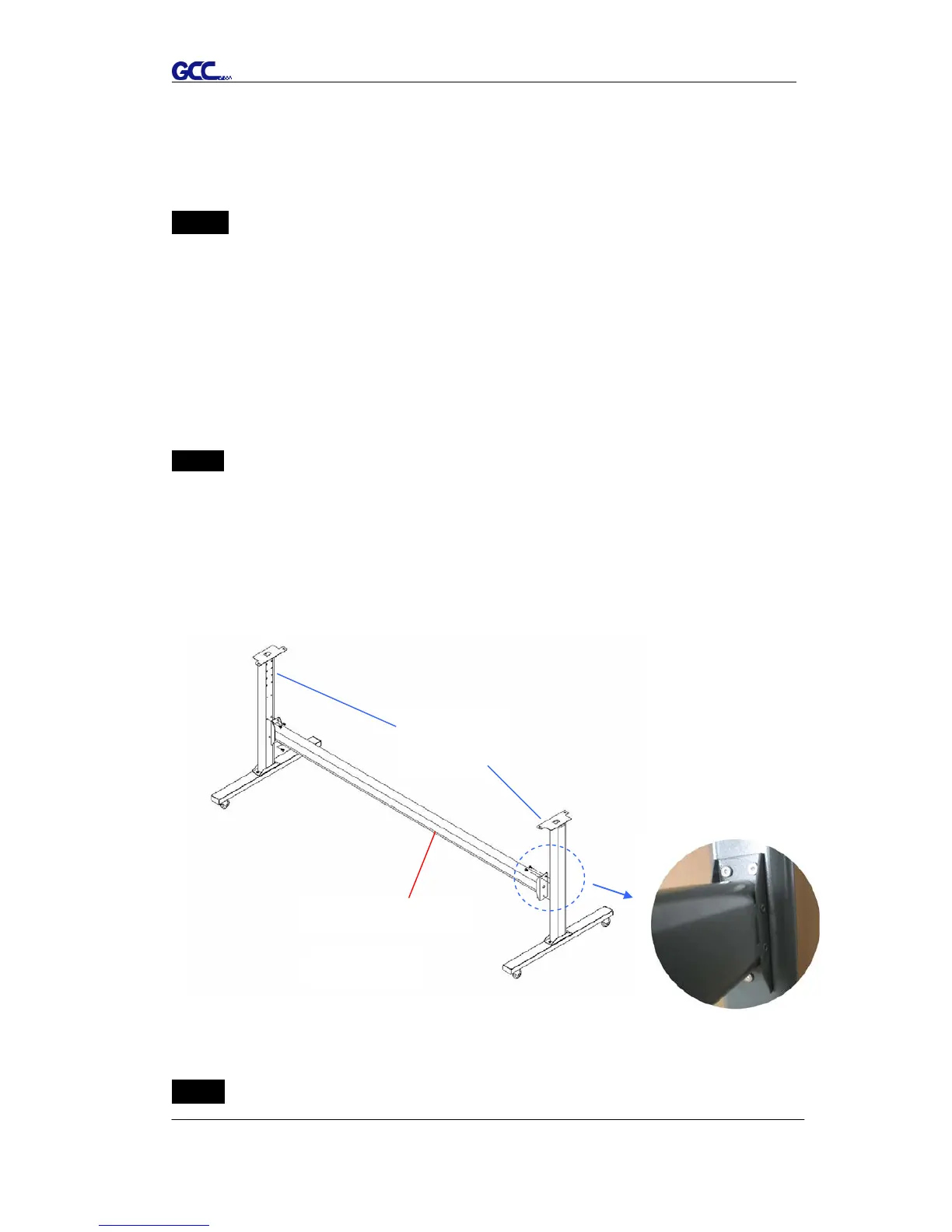

 Place the stand beam upright on the T-stand and follow the number 
to assemble (See Figure 2-1 & 2-2).
 There is hexagon socket head screws fasten on the T-stand on both side
taken as locating pins.
Step 3 Position the stand beam perpendicularly to part and put the screws into

T-Stand

Stand beam
Figure 2-1
Figure 2-2
