Puma III User Manual
General Information 1-3
1.4 Appearance of Puma III

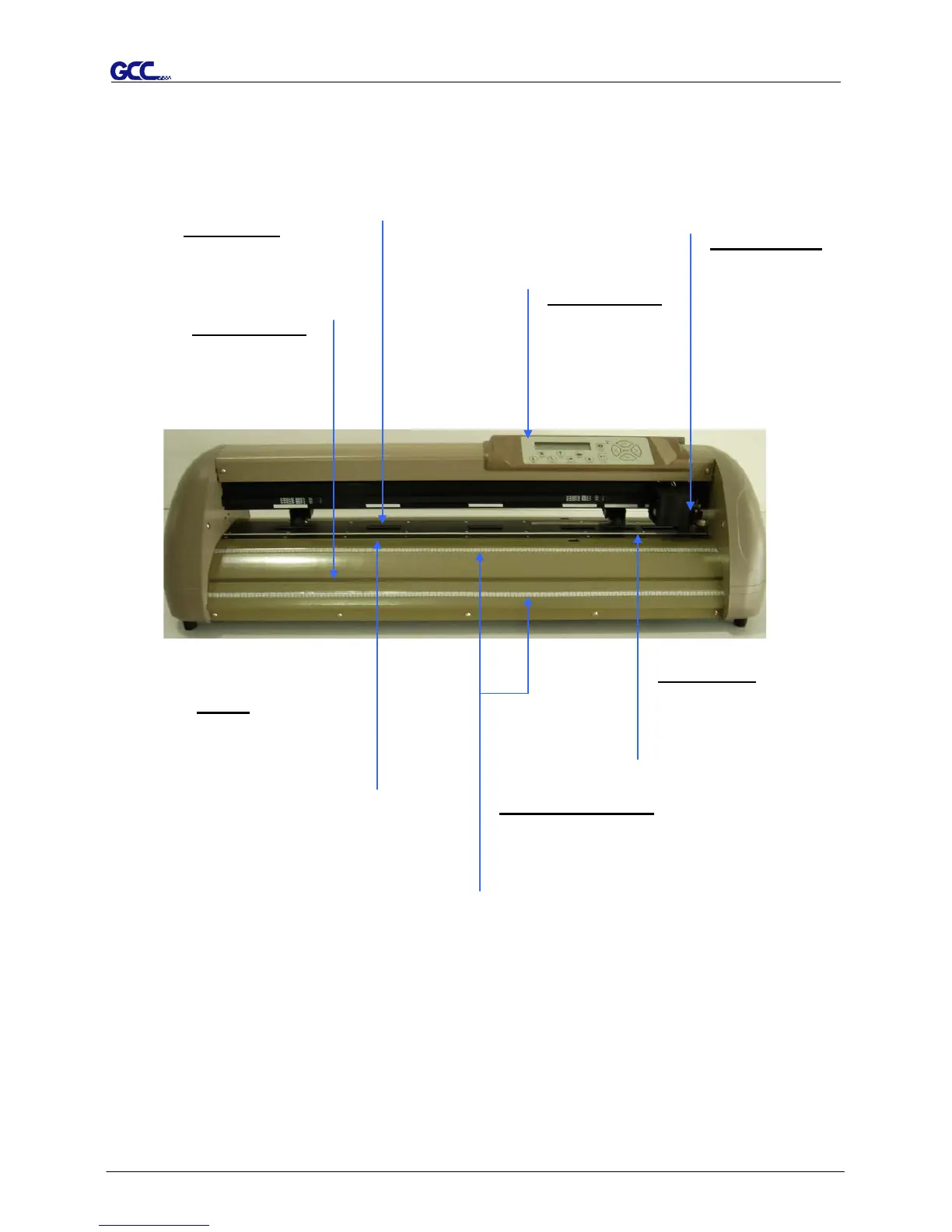

1.4.1 The Front View (Figure 1-1)
Control Panel
14 buttons and 1
LED and 1 LCM
showing messages
and menus.
Cutting Pad
provides the protection of
blade when the blade is
cutting.
Tool Carriage
performs the
cutting with the
installed blade or
pen with AAS
module.
Alignment Rulers
media can be aligned
with the clear guide line
marks
Grid Drums
move the media back and
forth during operation.
Slicer Groove
cuts off the extra
media easily along
this groove.
Platen
provides the surface for
supporting media while
cutting
Figure 1-1
