Puma III User Manual
GreatCut Plug-In A-5

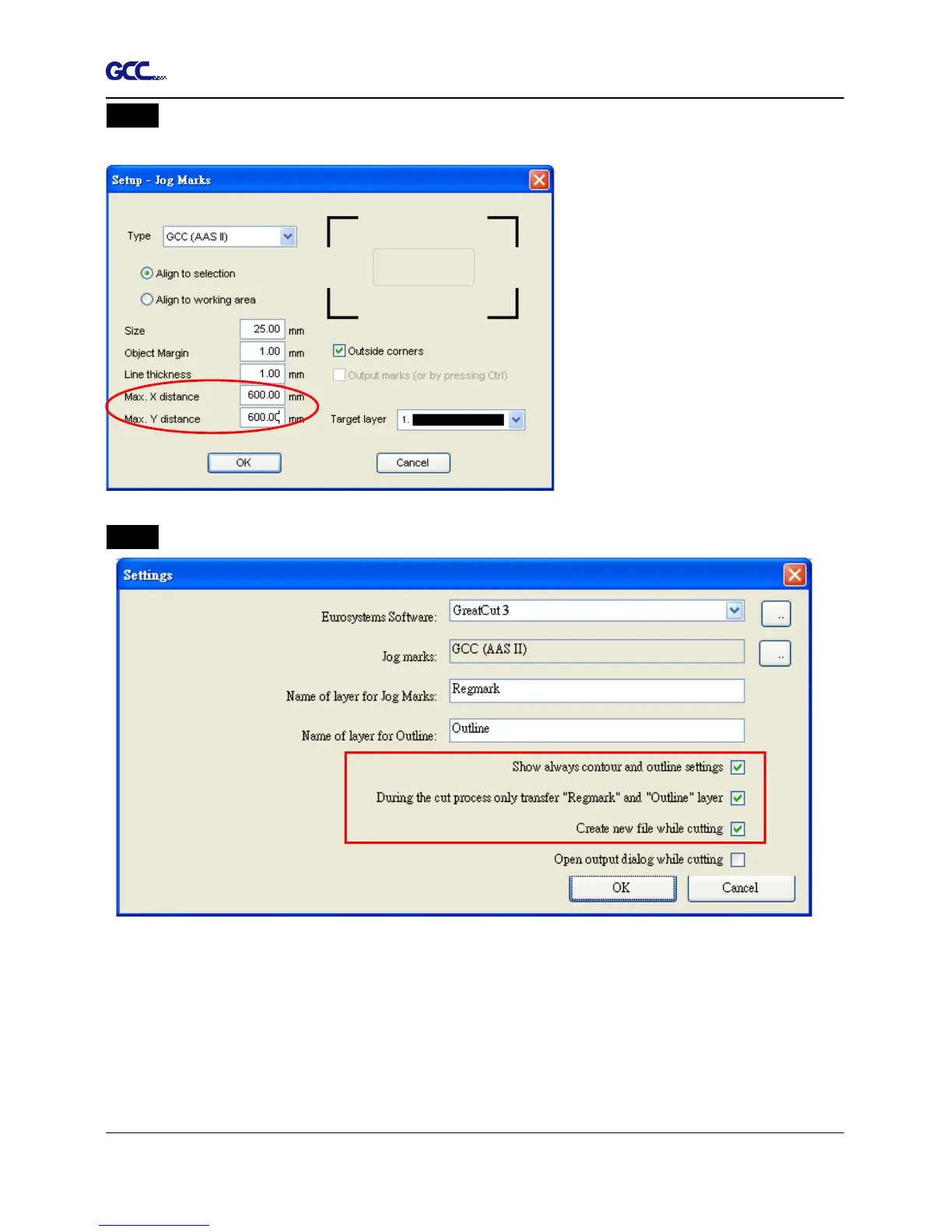

Step 5 Adjust the size, object margin and line thickness of your registration marks in the
Setup-Jog Marks window and click OK.
Step 6 Ensure the three items below are selected and click OK.
4-Point Positioning
 Size: The length of marks
 Range: 5mm~50mm
 Optimized Setting: 25mm
 Object margin: The distance
between marks and images
 Range: 0mm~50mm
 Optimized Setting: 5mm
 Line thickness: the line thickness
of marks
 Range: 1mm~2mm
 Optimized Setting: 1mm
