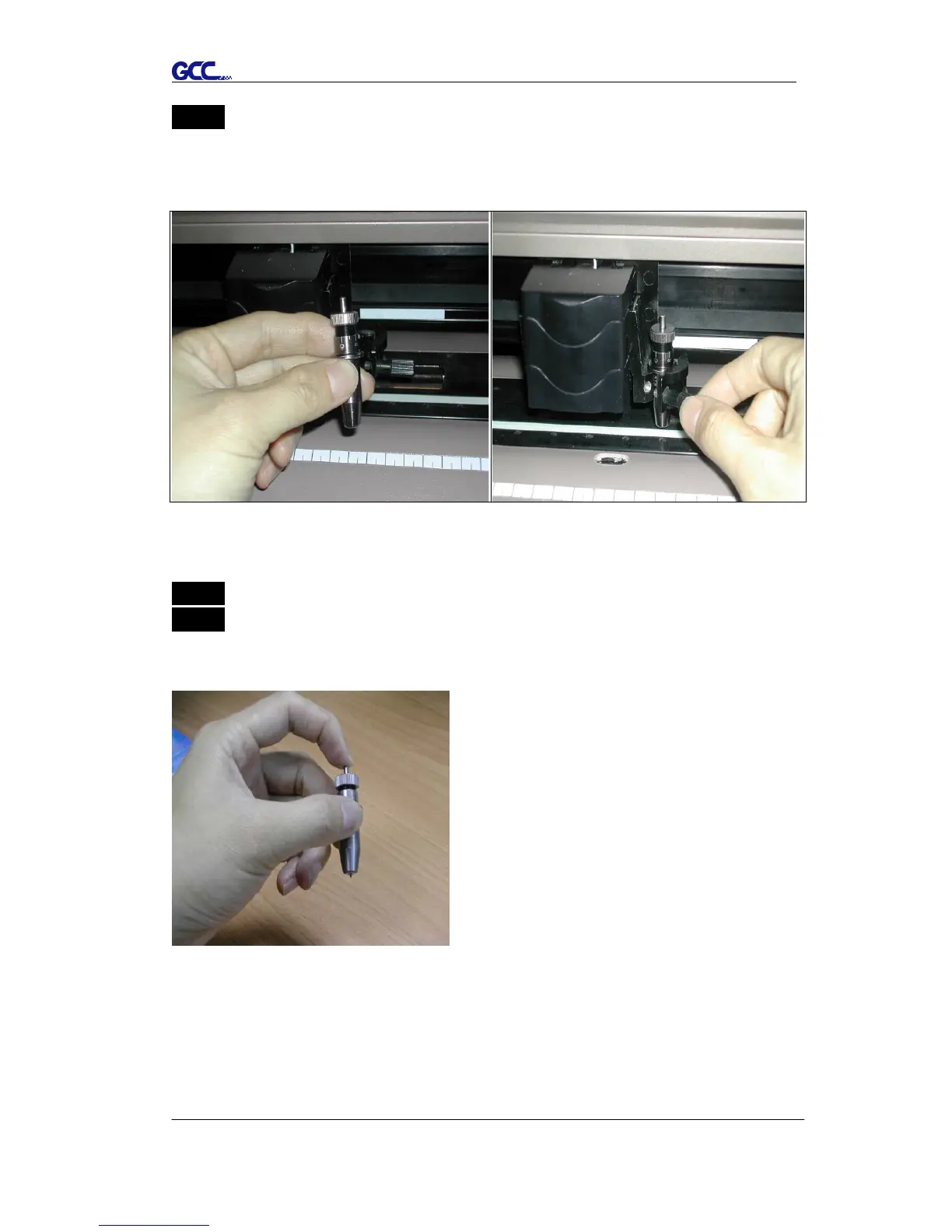

Step 4 Insert the blade holder into tool carriage. Please note the outward ring of
the holder must put into the groove of carriage firmly (Figure 2-15) and lock the
grip. (Figure 2-16)
Step 5 Reverse steps mentioned above to remove the blade holder.
Step 6 Press the push-pin to remove the blade from the blade holder when
replacing blade. (Figure 2-17)
Figure 2-15 Figure 2-16
Figure 2-17
