GCC Technologies X380 - Page 49

File Edit Vector Page

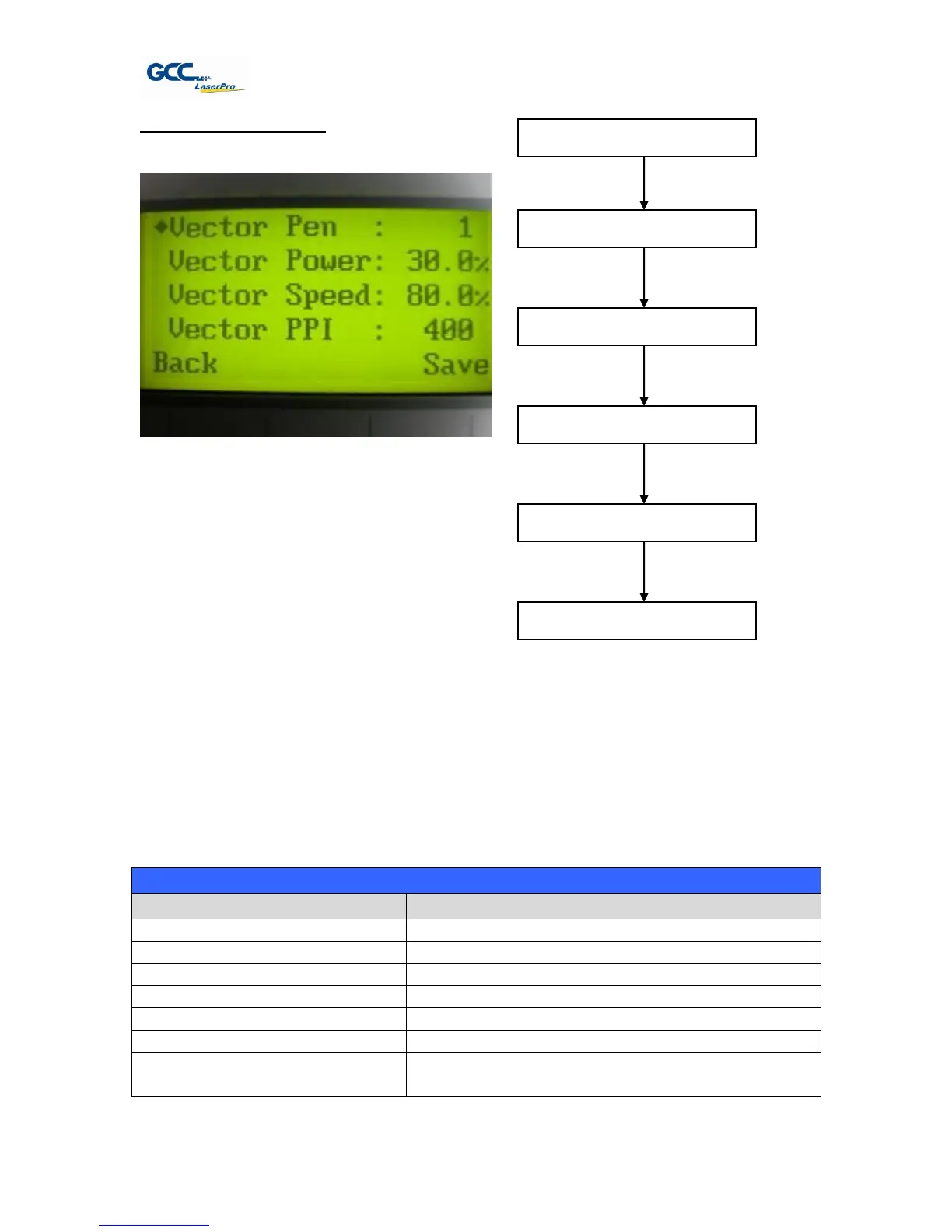

The File Edit Vector Page allows you to edit the vector pen, vector power, vector speed, and
vector PPI, and power ramp settings for the selected job. These settings correspond to the same
settings found on the LaserPro X380 print driver. This page allows you to easily adjust these
values to make immediate adjustments while processing your loaded jobs, even when you have
disconnected your computer from the LaserPro X380.
 Vector Pen: 1 - 16
 Vector Power: 0.0% - 100%
 Vector Speed: 0.0% 100%
 Vector PPI: 30 - 1524
 Power Ramp: YES / NO
File Edit Vector Page
Relevant Buttons
Function
F1 (Back)
Back to previous page
F4 (Save)
Save your current settings
 /  Directional
Scroll through the menu selections
 /  Directional
Adjust the value for that selection
Start / Stop
Back to Main Work Page
Auto Focus
Initiate the auto focus function
▲ / ▼ Manual Focus Buttons
Manually adjust the height of the work table (Z-
axis)
Main Work Page
Press F4
☼ Navigating to this page:
Functions Page
Select <File Management>
from the menu
File Management Page
Select a job file and
press Enter
File Information Page
Press F4
File Management Edit Page
Select <Vector Setting>
from the menu
File Edit Vector Page
