GE Corometrics 170 Series Service Manual

7-20 170 Series Monitor Revision C
2000947-004
Serviceable Assemblies: Tocotransducer Calibration
Tocotransducer Calibration
Any of the following three transducers can be used with the 170 Series Monitor:
 Corometrics Nautilus Tocotransducer
 Corometrics Trimline Tocotransducer
 Corometrics Large-Button Tocotransducer

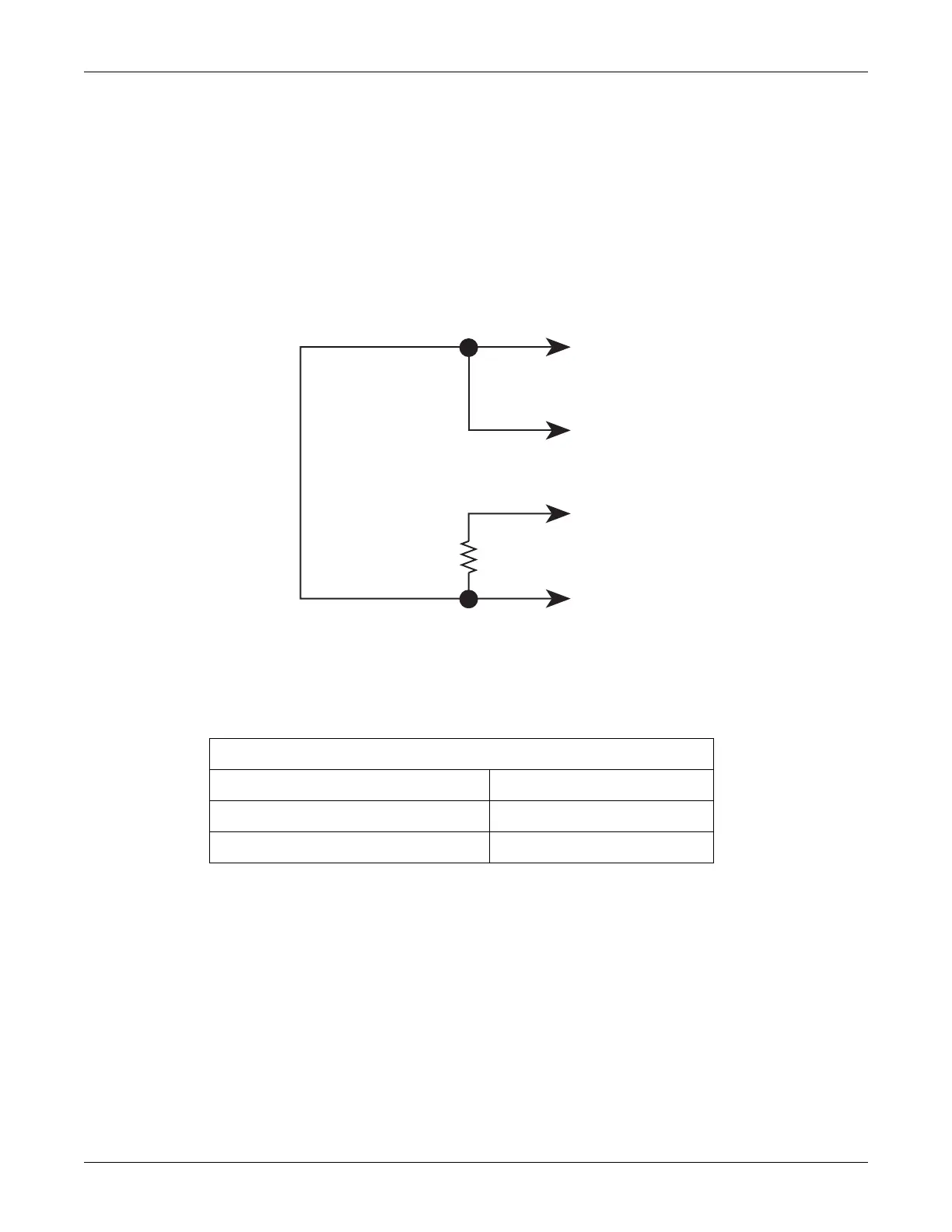

Figure 7-7. CMR Test Jack
Table 7-8. CMR Test Jack Components
Part Description Catalog Number
Pressure Connector 6158J
475 Ω, 1/8 W, 1% Resistor 472127
+P
P
+4 V
REF
Pin 1*
Pin 2*
Pin 4*
Pin 6*
475 W
*Front Panel UA Connector
