3-10 170 Series Monitor Revision C
2000947-004
Controls, Indicators, and Connectors: Front Panel Connectors
Model 173 Connectors

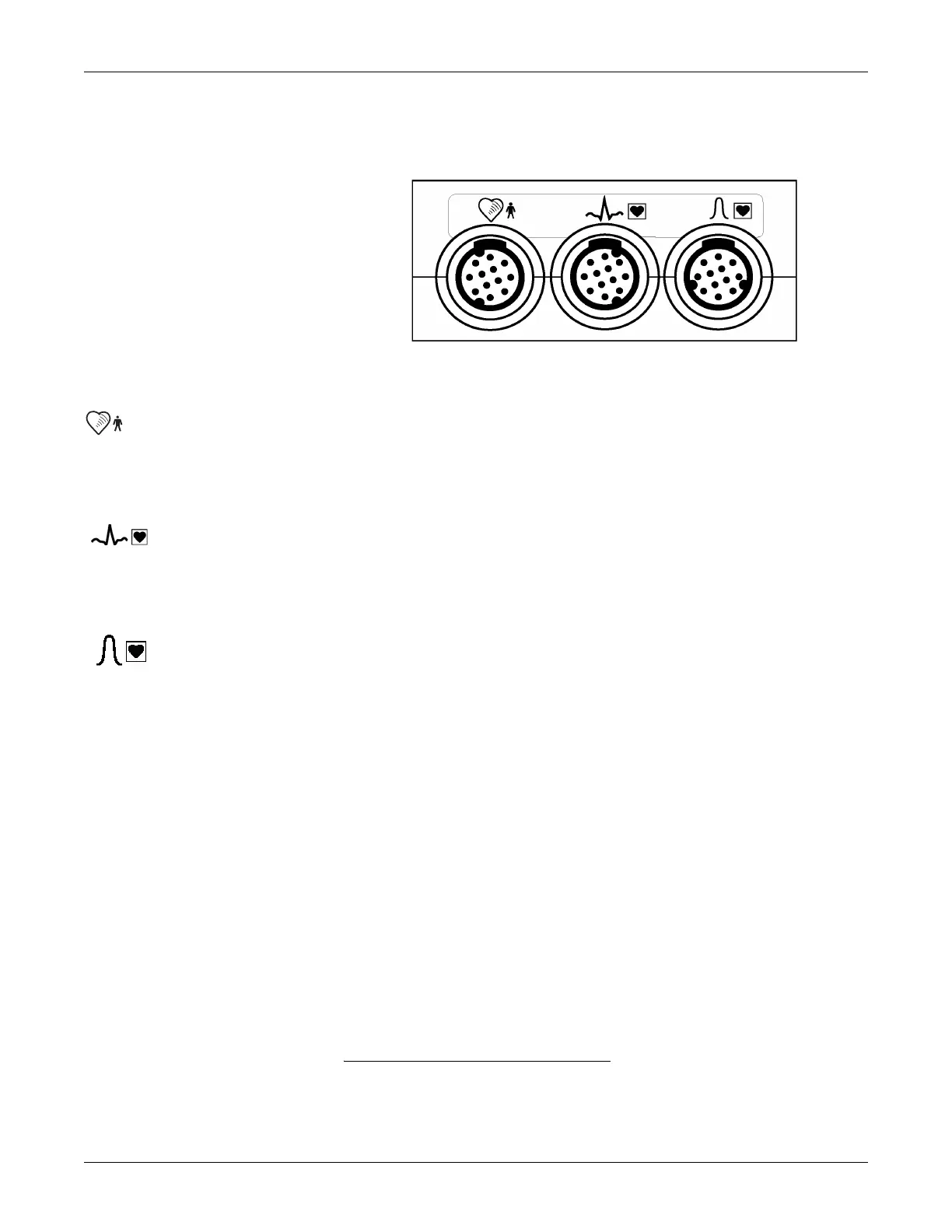

Figure 3-4. Model 173 Connectors
Ultrasound Connector
The ultrasound connector
1
is a blue, round receptacle mechanically keyed to accept
only a Corometrics ultrasound transducer plug. The fetal heart rate derived from
this transducer shows in the primary fetal heart display.
FECG Connector
The FECG connector
1
is a dark grey, round receptacle mechanically keyed to
accept a Corometrics FECG cable/legplate plug. The fetal heart rate derived from
the spiral electrode displays in the secondary fetal heart rate display.
Uterine Activity Connector
The uterine activity connector is a white, round receptacle mechanically keyed to
accept a Corometrics tocotransducer, a Corometrics strain gauge transducer plug, or
any intrauterine pressure catheter with compatible cable plug. The uterine activity
value obtained from this transducer shows in the uterine activity display.
1
If the Model 173 is interfaced to a clinical information system (CIS), be aware that the CIS may be
designed to alarm when there is no fetal heart rate signal. Therefore it is recommended that you
unplug the ultrasound and/or FECG transducers from the monitor, when not in use, to eliminate false
alarms.
