GE Corometrics 170 Series Service Manual

Revision C 170 Series Monitor 5-7
2000947-004
Theory of Operation: Functional Overview

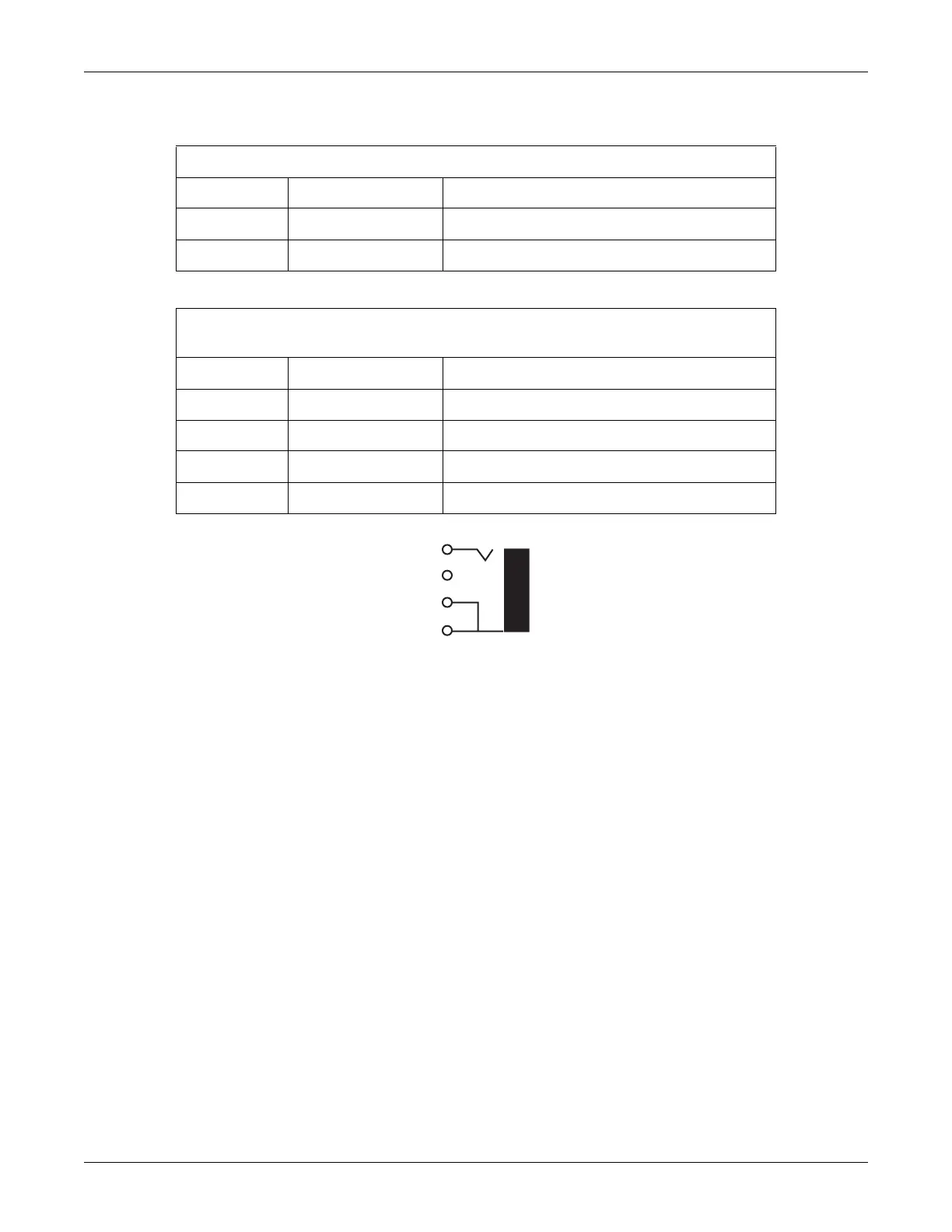

Figure 5-4. Remote Mark Connectors
Table 5-7. Speaker Connector
Pin Number Signal Name Signal Description
1 SPKR-LO Speaker Low Side Connection
2 SPKR-HI Speaker High Side Connection
Table 5-8. Remote Mark Connectors
(Remote Event Marker and Fetal Acoustic Stimulator)
Pin Number Signal Name Signal Description
1 Tip Remote Event Marker or Fetal Acoustic Stimulator
2 Shunt No Connection
3 NC No Connection
4 Sleeve Ground
1
2
3
4
