SETTING UP THE NETWORK INTERFACE CHAPTER 6: SETTING UP THE D400
3. Type 3 and press Enter to select 3. Configure Network Interface.
Result: The Available Network Interfaces menu appears.
In a multiple network interface configuration you are prompted to enter which device
to configure (NET1 or NET2).
4. Type 1 and press Enter to select 1. Net1, or type 2 and press Enter to select 2. Net2.
Result: The Network Interface : Net1 or Net2 menu appears.
5. Type 2 and press Enter to select 2. Static IP Address.
Result: You are prompted to enter the D400’s IP address.
6. Type the IP address of the D400 and press Enter, or press Enter to accept a previously-
set IP address.
The default IP address is 192.168.168.81.
7. Enter the Subnet Mask of the D400, or press Enter to accept a previously-set subnet
mask.
The default Subnet Mask is 255.255.255.0.
Result: You are prompted to configure the gateway settings.
8. Do one of the following:
– If a default gateway is not required, enter n.
– If a default gateway is needed, enter y and then enter the Gateway IP address.

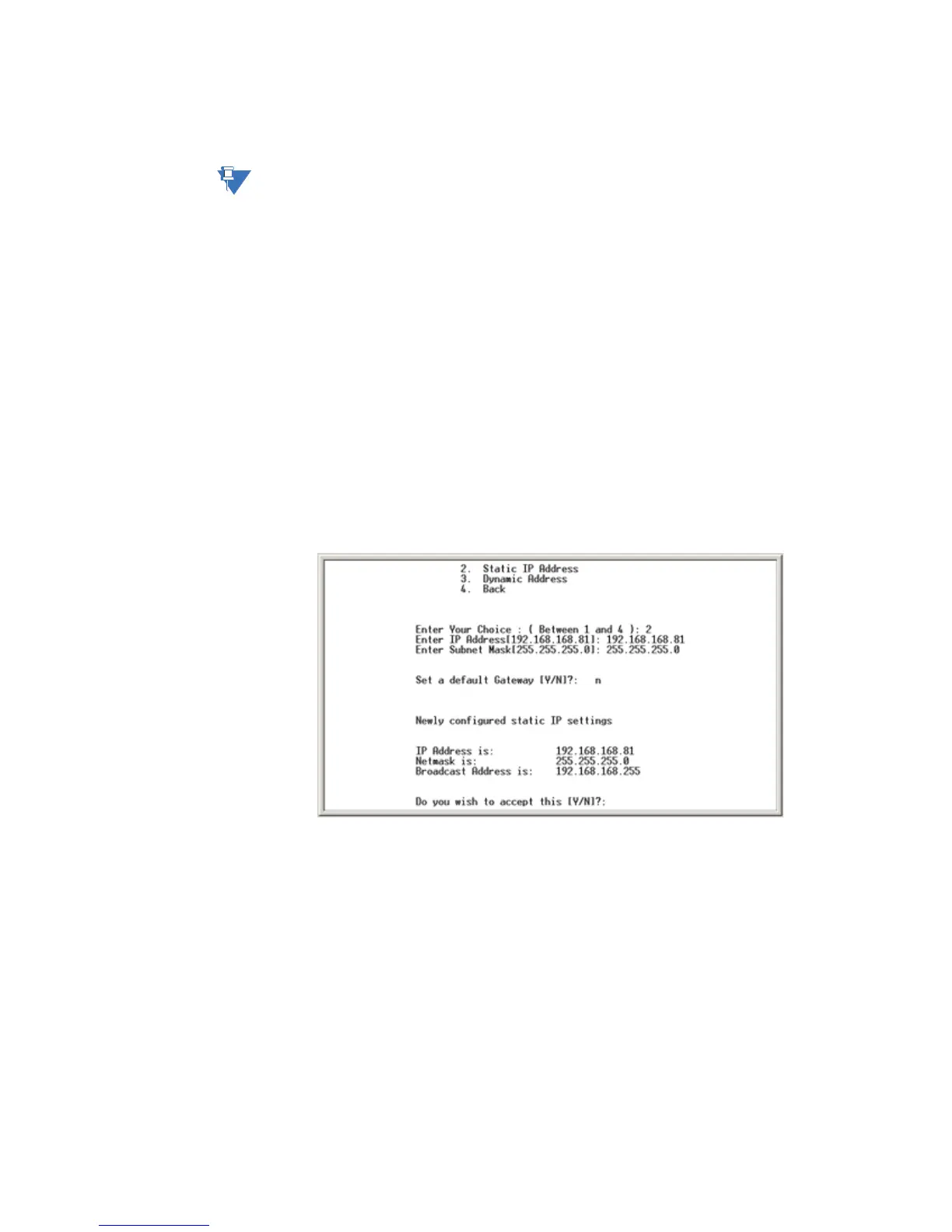

Result: A summary of the configured network configuration displays
9. Do one of the following:
– To accept the settings, enter y.
– To change the settings, enter n and repeat Steps 4 to 8 to make the necessary
changes.
10. Go back to the D400 Configuration Utility Menu, and select 16. Quit to exit the
configuration utility.
11. At the D400#>> prompt, type reboot and press Enter.
The D400 restarts and is updated with the new network settings.
You can now configure the D400 using the D400 HMI over the network connection.
See Chapter 7, Using the D400. You must create administrator-level user accounts
before you can access the D400 remotely through TELNET or SSH.
