A-16 Dash™ 3000/4000/5000 2000966-386D
Maintenance
WARNING
—When the NBP cuff is used in this procedure, it must be tightly
wrapped around a rigid cylinder or pipe. Do not place the NBP cuff
around a human limb during this procedure due to the potential for
injury.

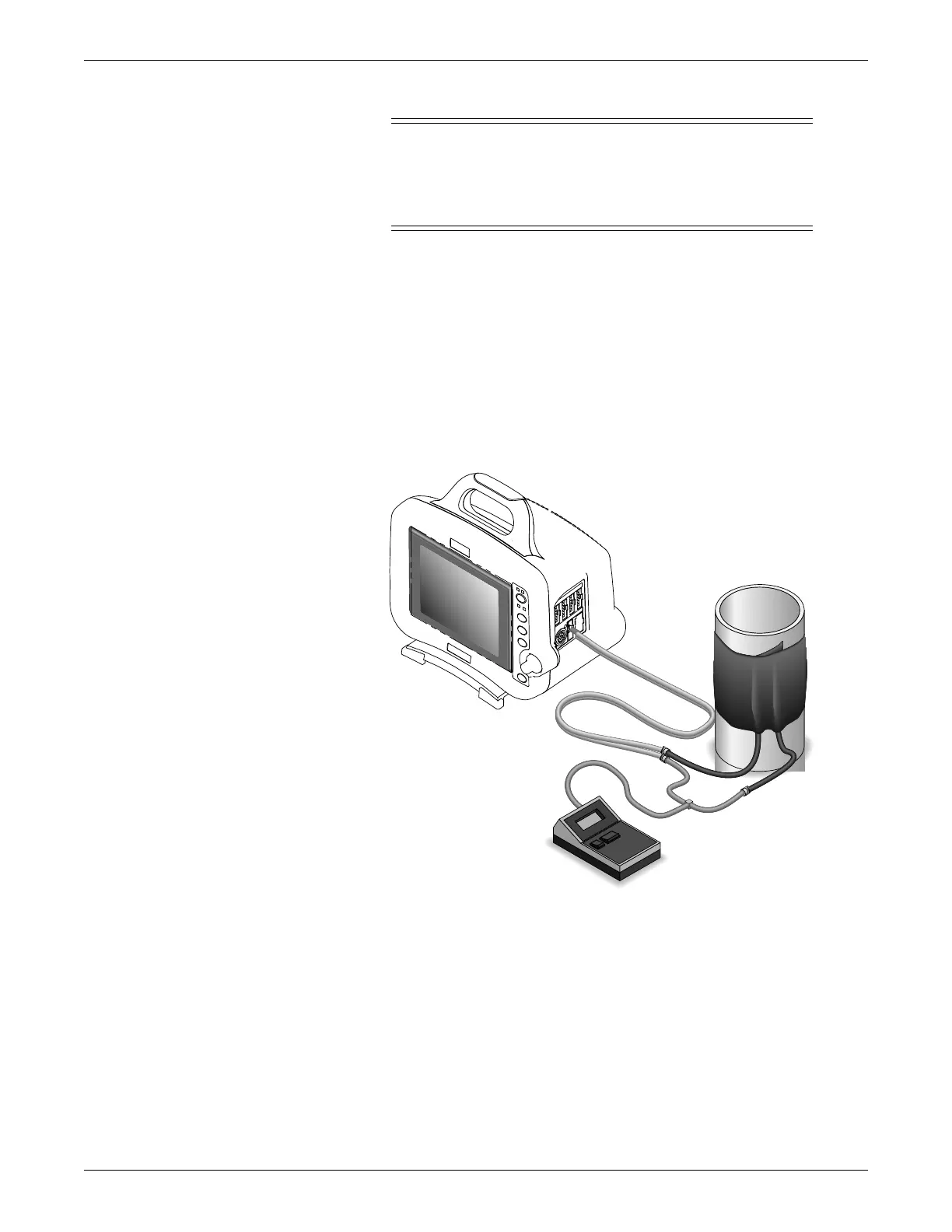

1. Connect the manometer to the NBP cuff.
2. Connect the manometer to the BP 1/3 patient connector.
3. Press the Power key to turn the monitor on.
4. Verify the parameter window, waveform label and other parameter information
display.
5. Turn the manometer on and set range switch to 1000 mmHg.
6. Wrap the NBP cuff around rigid cylinder or pipe (at least six inches in diameter).
021B
7. Verify the calibration:
a. Select MORE MENUS > MONITOR SETUP > SERVICE MODE.
b. Select CALIBRATE > CALIBRATE NBP > CHECK CALC OFF >
START.
c. Verify the readings in the NBP parameter window and the readings on the
manometer are within ±1 mmHg for at least one full minute.
If the readings fail, re-calibrate the NBP circuit. For more information, refer
to the service manual.
To Next Page
