E-14 Dash™ 3000/4000/5000 2000966-386D
Interfacing with Non-GE Devices
Setup
Connecting the Monitor

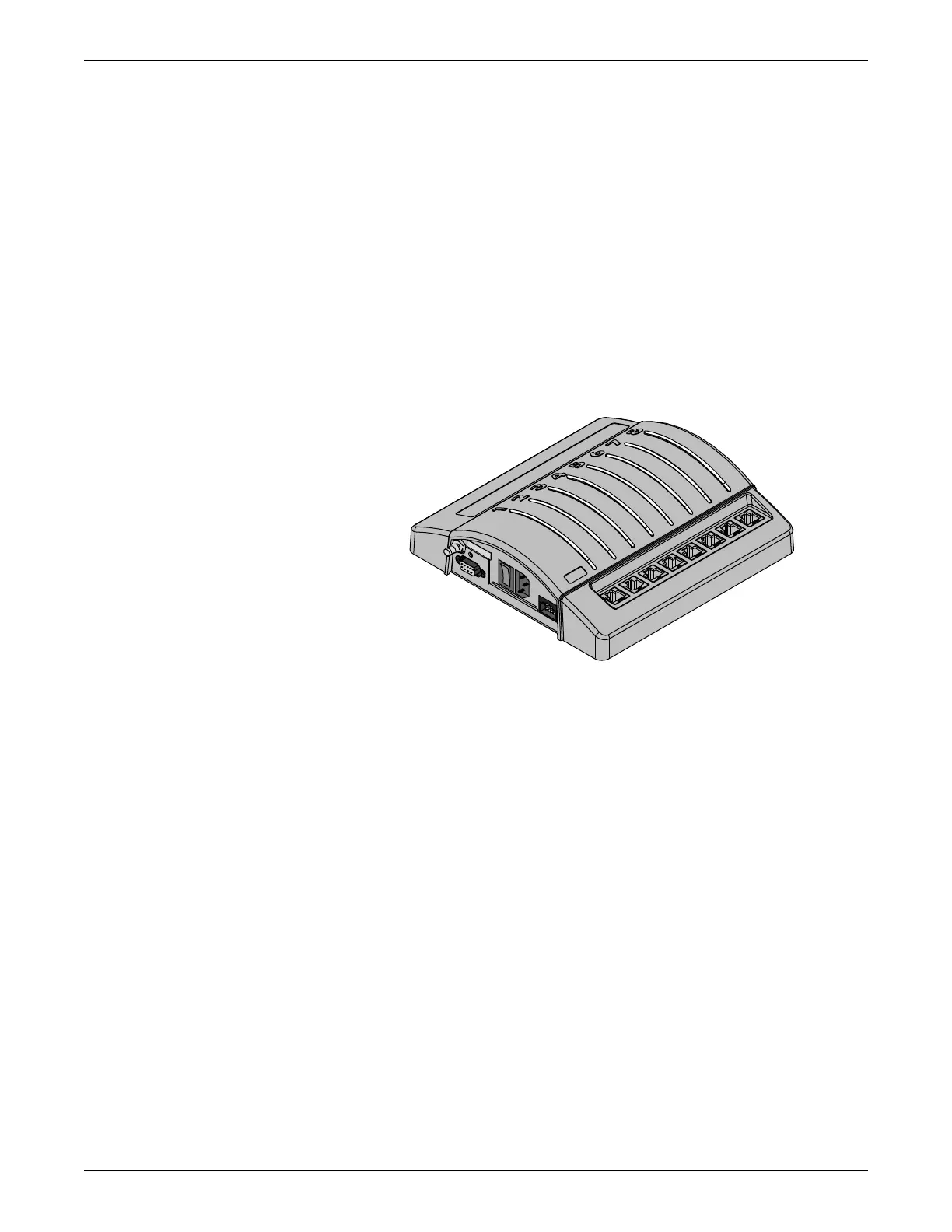

The monitor and the connectivity device much be connected to the same network. To
connect a monitor to a connectivity device, follow this procedure.
1. Turn off the monitor and connectivity device.
2. Connect one end of the purple interconnect cable to the AUX connector on the
monitor or docking station.
3. Connect the other end of the purple interconnect cable to the serial port labeled 1
on the connectivity device.
4. Connect one end of the network cable to the Ethernet connector on the
connectivity device.
5. Connect the other end of the network cable to the Ethernet connector on the
monitor or docking station.
6. Turn on the monitor and connectivity device.
Connecting Peripheral Devices
A unique, factory-programmed interface adapter is required for each peripheral
device. Refer to the instructions provided with the interface adapter for setup and
installation instructions.
To assure proper operation, GE recommends permanently connecting interface
adapters to peripheral device cables.
To connect peripheral devices to the connectivity device, follow this procedure.
1. Connect the interface adapter to the peripheral device cable.
