6-6 Dash™ 3000/4000/5000 2000966-386D
Patient Data
NOTE
You cannot view older or newer trends when viewing a six minute time period.
CRG Trends
CRG TRENDS allows you to create high resolution trends for up to three CRG
parameters (including HR, SpO
2
, MAP, RESP and CO
2
).

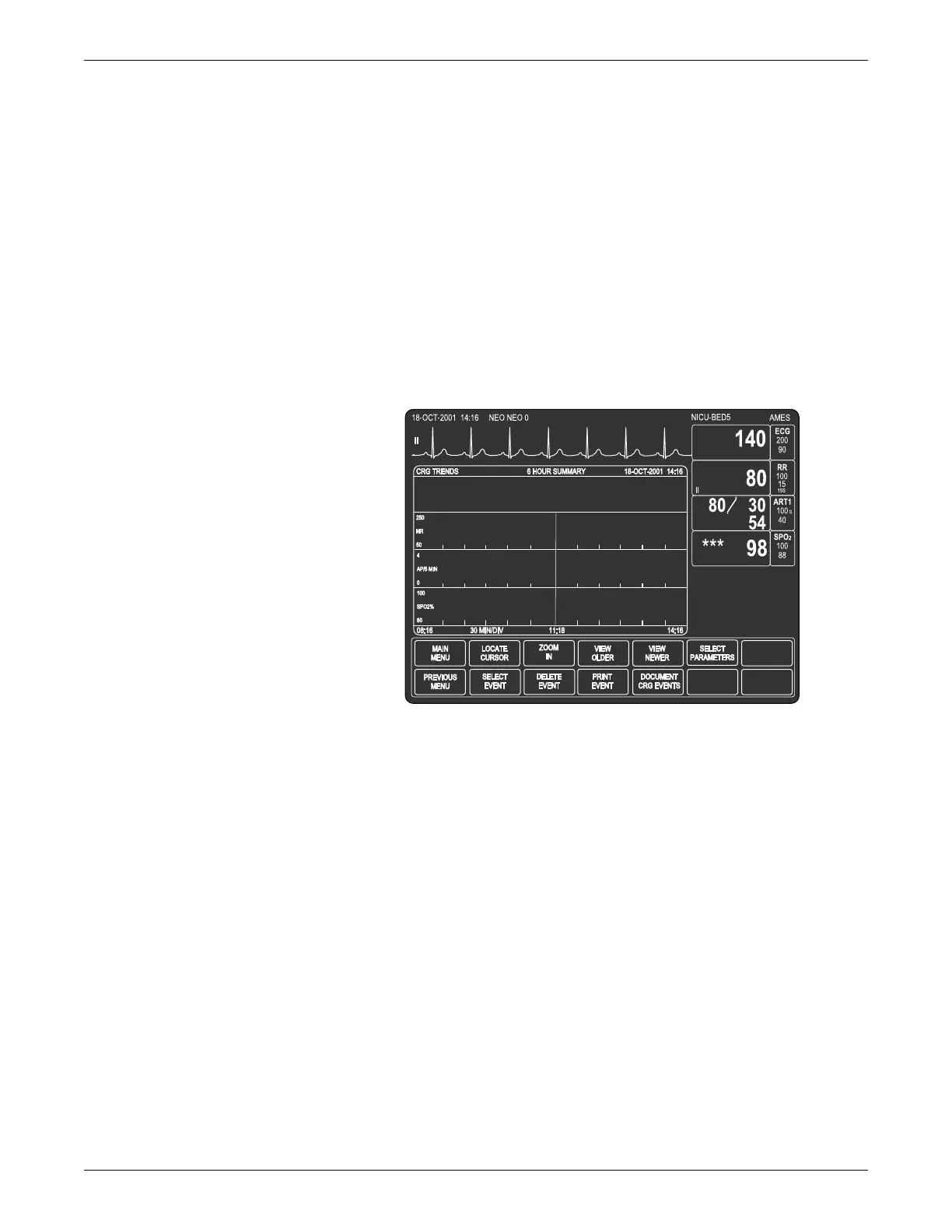

To view CRG TRENDS, select MORE MENUS > PATIENT DATA > CRG
TRENDS.
NOTE
The primary ECG lead and parameters windows remain displayed.
806C
The CRG TRENDS information window displays a directory of up to six stored CRG
events. Each event has an associated number, a minimum and maximum alarm value
and an event start time. An asterisk indicates that you cannot access the trend trace
data for this event, usually because the event just occurred and the data is not
available yet.
The directory holds up to 100 of the most recent events. Only resolved alarms with an
alarm level above MESSAGE are stored. The directory automatically updates when a
valid alarm is resolved.
When the directory is full, the oldest event in the directory is removed to make room
for a new event. Trend traces are stored for 24 hours. It is possible that trends may not
be available for events that occurred more than 24 hours ago.
There may be a two minute delay before data can be displayed when the system is
first connected or when admitting a patient. Data is displayed on an even minute
boundary in either two minute or six hour segments. The display automatically
updates every two minutes when the most recent data segment is displayed
