GE Dash 5000 Operator's Manual

Introduction
2000966-386D Dash™ 3000/4000/5000 1-13

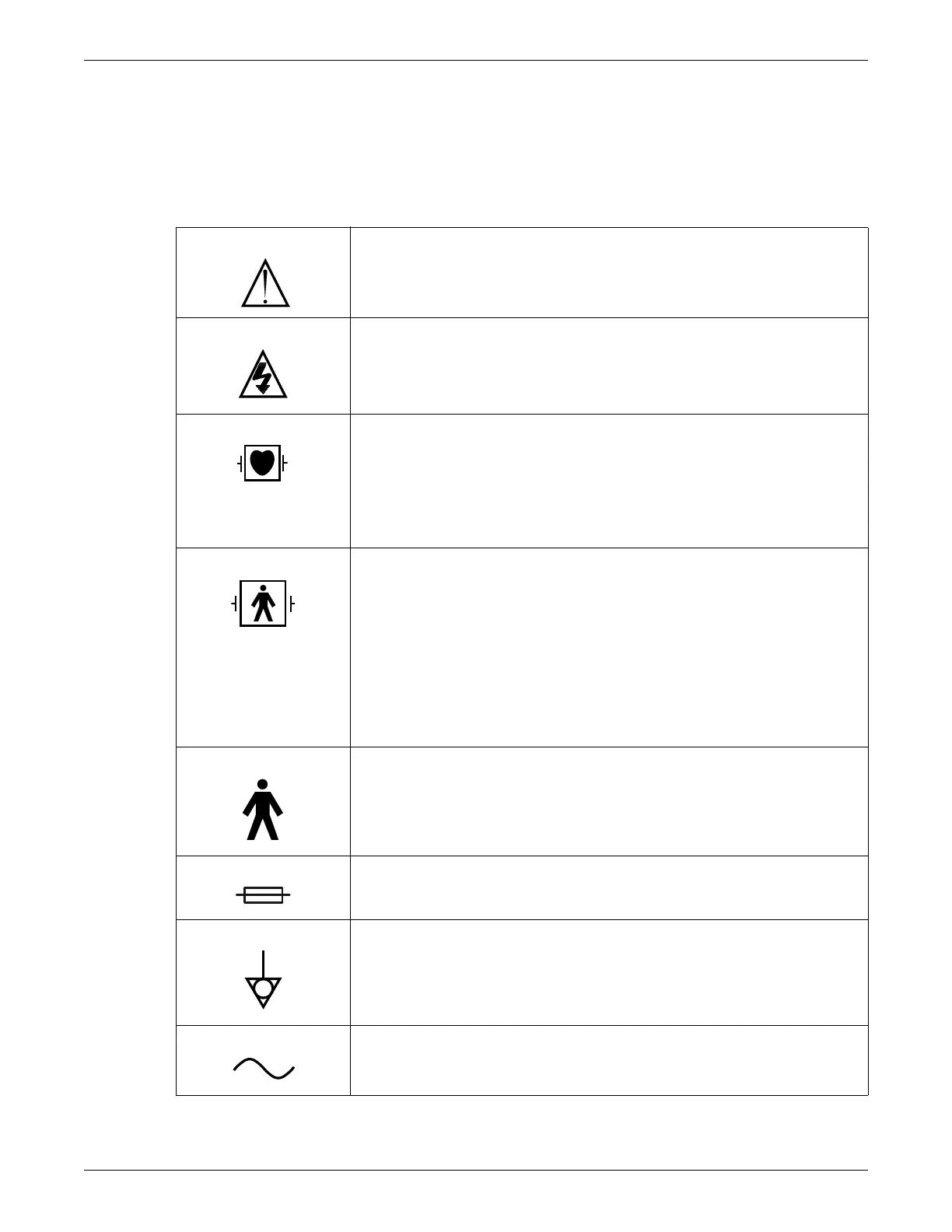

Equipment Symbols
NOTE
Some symbols may not appear on all equipment.
ATTENTION: Consult accompanying documents.
CAUTION: To reduce the risk of electric shock, do NOT remove cover. Refer servicing to
qualified service personnel.
TYPE CF APPLIED PART: Isolated (floating) applied part suitable for intentional external
and internal application to the patient including direct cardiac application. “Paddles” outside
the box indicate the applied part is defibrillator proof.
[Medical Standard Definition:] F-type applied part (floating/isolated) complying with the
specified requirements of EN 60601-1/UL 60601-1/CSA 601.1 Medical Standards to
provide a higher degree of protection against electric shock than that provided by type BF
applied parts.
TYPE BF APPLIED PART: Isolated (floating) applied part suitable for intentional external
and internal application to the patient excluding direct cardiac application. “Paddles”
outside the box indicate the applied part is defibrillator proof.
[Medical Standard Definition:] F-type applied part (floating/isolated) complying with the
specified requirements of EN 60601-1/UL 60601-1/CSA 601.1 Medical Standards to
provide a higher degree of protection against electric shock than that provided by type B
applied parts.
NOTE
The rating of protection against electric shock (indicated by symbol for CF or BF) is
achieved only when used with patient applied parts recommended by GE.
TYPE B APPLIED PART: Non-isolated applied part suitable for intentional external and
internal application to the patient excluding direct cardiac application.
[Medical Standard Definition:] Applied part complying with the specified requirements of EN
60601-1/UL 60601-1/CSA 601.1 Medical Standards to provide protection against electric
shock, particularly regarding allowable leakage current.
Fuse
Equipotential Stud: A ground wire from another device can be tied here to ensure the
devices share a common reference point.
Alternating current (AC)
