9

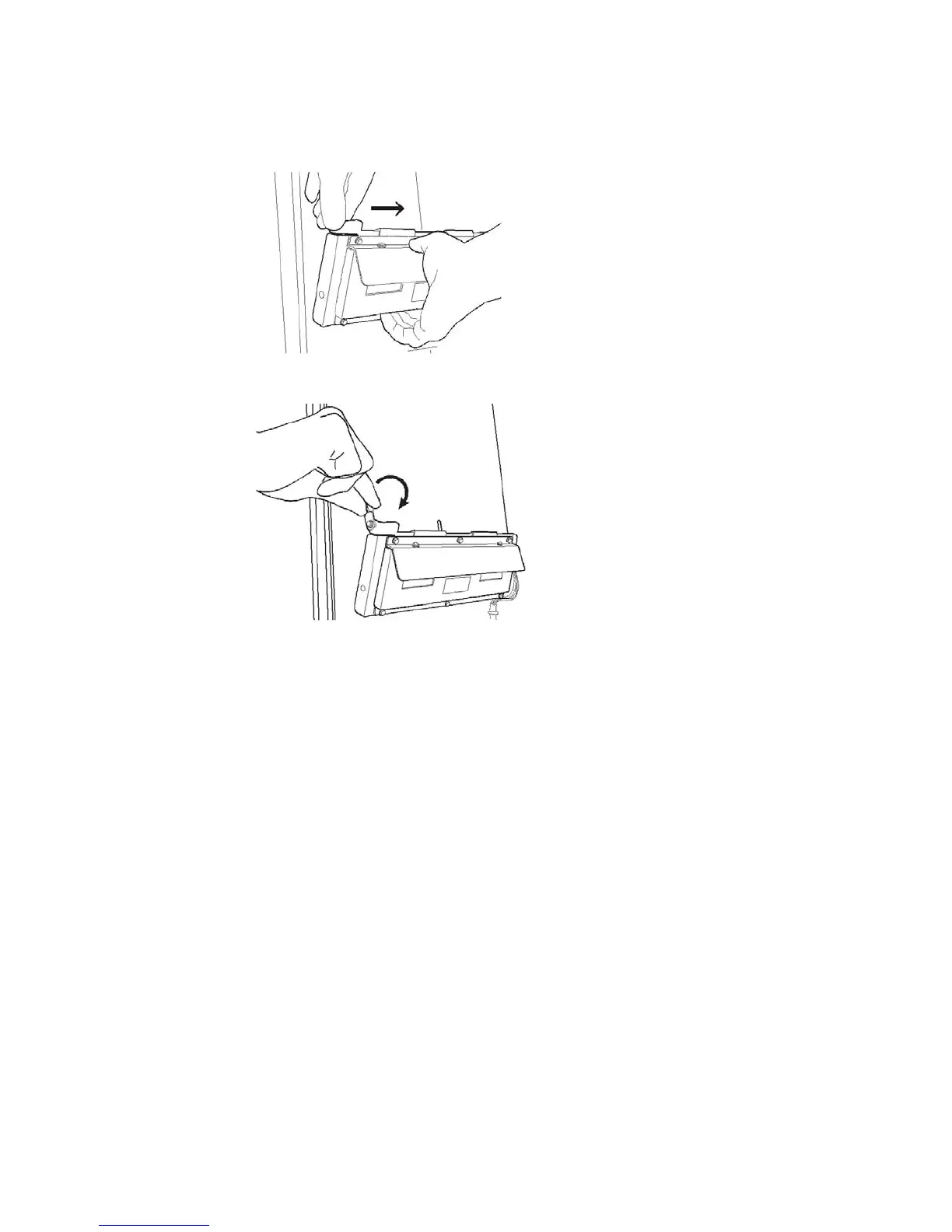

Push the Epi light while holding the latch open, and slide it inwards until a click sound is heard.
10
Lower the latch to lock the Epi light in place.
11
Repeat this process for the opposite side.
Note:
•
The Epi lights are clearly labelled L for the left and R for the right sides.
•
Install the Epi lights in matching pairs only. If Epi lights with different wavelengths
are used, the intended image will not be obtained.
Getting Started with ImageQuant LAS 4000 28-9607-59 AB 47
4 Operation
4.2 Preparation
4.2.2 Preparing the ImageQuant LAS 4000 for exposure
