IRECTION 5305880-100, REVISION 3 LOGIQ™ 100 PRO SERVICE MANUAL
Chapter 9 - Replacement Parts Page 9-11
9-1-9 MATERIAL LIST - Power Supply/Distributor PCB
OPERATOR CONSOLE ASSY
5304117,5304414,5304240,5304248,5304441,5304596,5306834.
Note: Replace Cable Assy 28N (5267859) & Cable Assy 29N (5265017) when replacing Power
Distributor PCB Assembly for the LOGIQ™ 100 PRO.

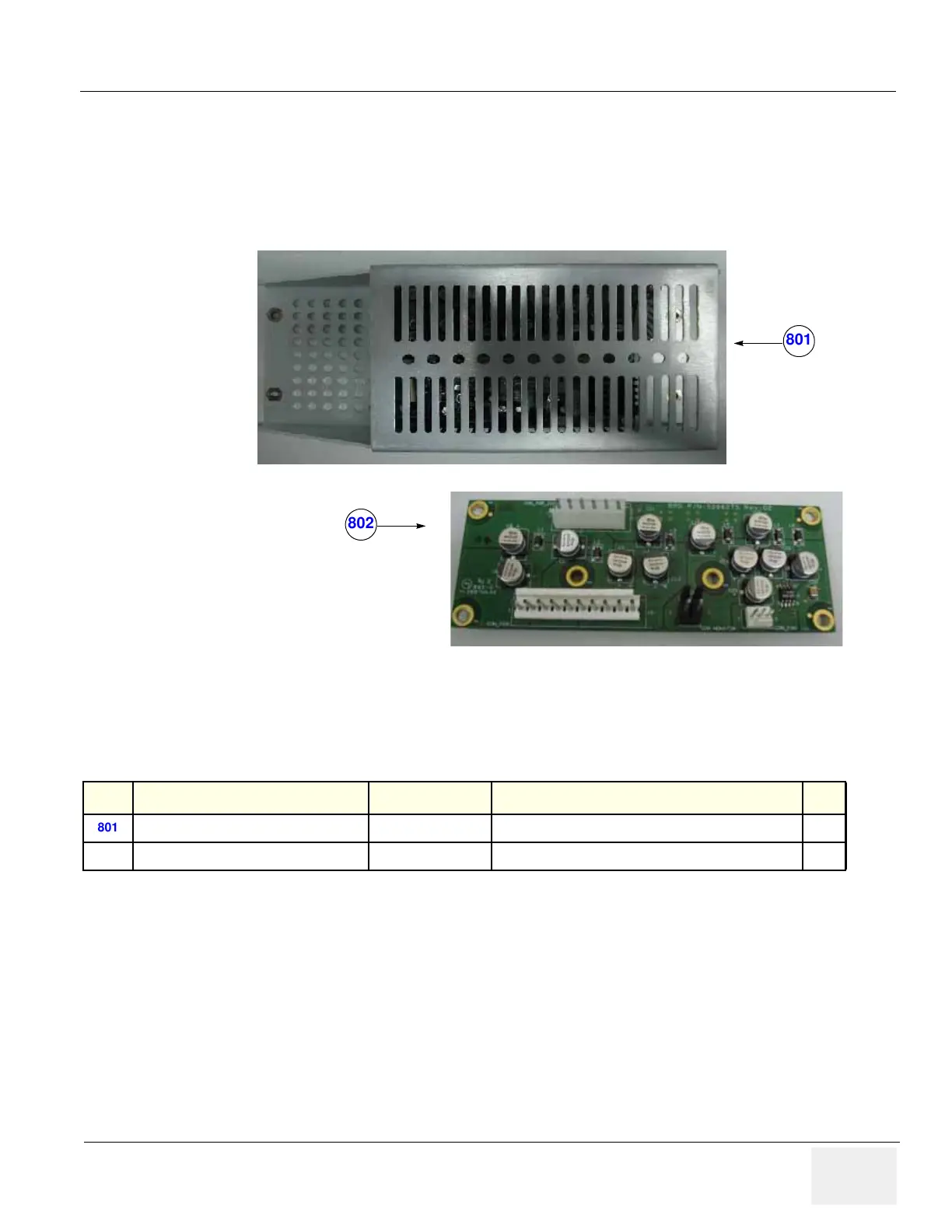

Figure 9-8 Power Supply/Distributor PCB
801
802
Table 9-8 Power Supply/Distibutor PCB
Item Part Name Part No. Description Qty
801 Condor power supply assembly 5310660 LOGIQ™ 100 PRO 1
802 Power Distributor Assembly 5198818 LOGIQ™ 100 PRO 1
