GE HEALTHCARE
D
IRECTION 5305880-100, REVISION 3 LOGIQ™ 100 PRO SERVICE MANUAL
Chapter 3 - Installation Page 3-15
Installation of LOGIQ™ 100 PRO with Global or Modular Trolley (Contd.,)
5.) Take the belt (provided in the kit) over the unit and lock it. Refer Figure 3-12
6.) Release the Keyboard by pressing the lock release and make it rest on the handle. Refer
Figure 3-12
7.) Insert the VGP inside the Printer Tray and fix from the bottom using M3X12 screw. Refer Figure
3-12

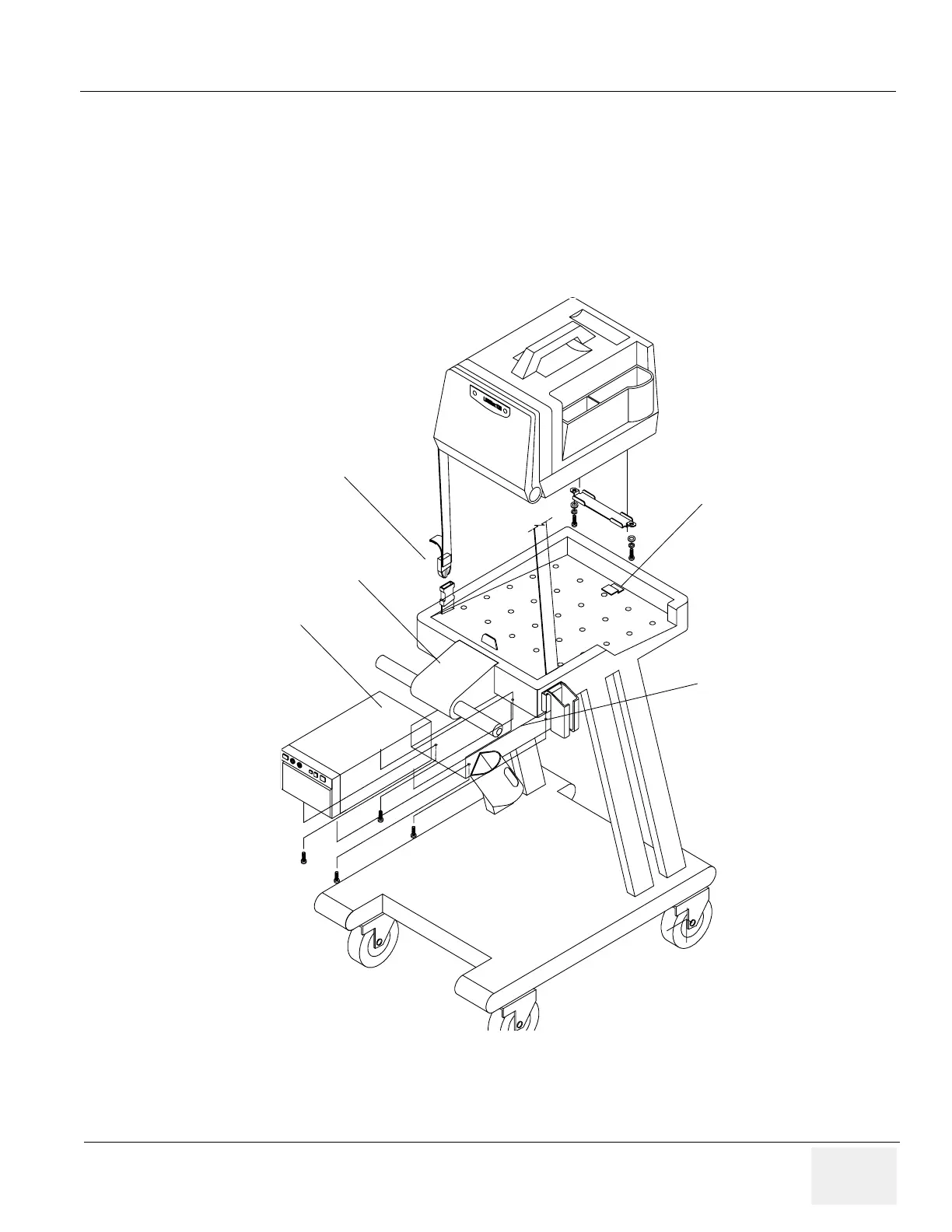

Figure 3-12 Installation of LOGIQ™ 100 PRO with the Trolley
Projection
Belt with Lock
Handle
VGP
VGP Tray (2179596)
Ensure that 2179596-2 is used
to take care of fitment problem of
VGP's .
Refer SV Note. SN LA100-014
All the New Trolleys effective
September'1 2000 is supplied
with modified FRU (2179596-2)
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process.
See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 60 of 197
