GE HEALTHCARE
D
IRECTION 5305880-100, REVISION 3 LOGIQ™ 100 PRO SERVICE MANUAL
Page 3-24 Section 3-6 - System Configuration
3.6.4.2 Video Graphic Printer (VGP)
Connect the Video Graphic printer (with USB A to USB B cable) to the USB port located on the rear
panel of the system.
Model: (Sony UP-D897MD or UP-897MD)

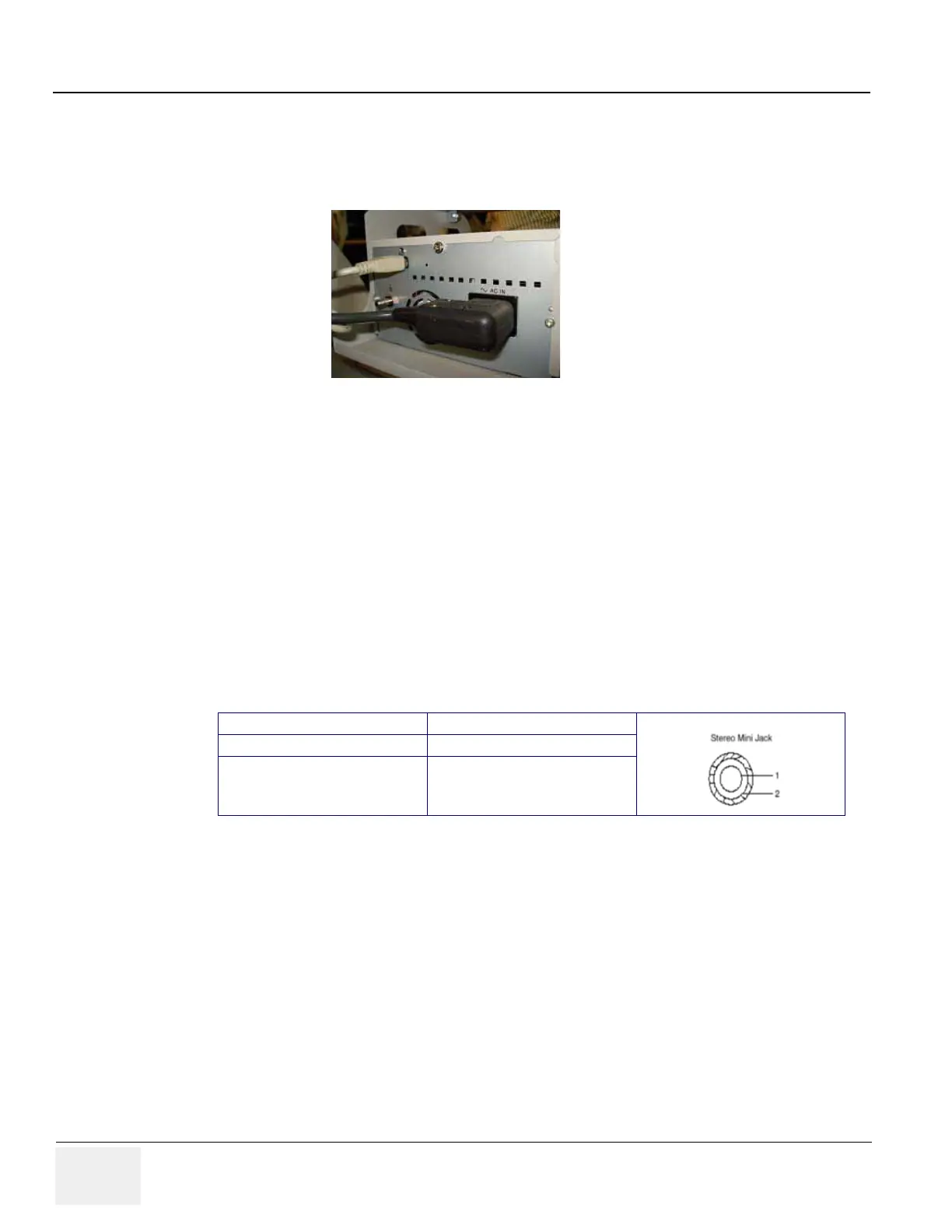

Figure 3-20 Connection of USB cable to Printer
Installation of VGP:
1.) Place the SONY Digital Printer on the fixture.
2.) Fix one end of power cable and USB cable to the printer.
3.) Fix the other end of USB cable to the USB slot provided in the rear panel and power cable
to the Power socket.
4.) Switch ON the LOGIQ™ 100 PRO and VGP printer.
5.) Press the Recall button on the keyboard to view the stored images.
6.) Press Record button on the keyboard and check if the selected image matches with the
VGP print out.
3.6.4.3 Pin Assignment of Mini Jack controlling VGP
3.6.4.4 Video Casette Recorder
Connect the VCR Sony SVO-9500MD (H4120SR) for NTSC and Sony SVO 9500MDP(E11801AA)
for PAL System to the Video IN socket in the rear panel. Press the “EXT. VIDEO” button on the
keyboard to enable an external video signal on the system monitor. SVHS tape should be used for
recording.
Pin No. Signal
1 Shutter
2 Signal GND
Figure 3-21 Shutter Connector
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process.
See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 69 of 197
