GE HEALTHCARE
D
IRECTION 5305880-100, REVISION 3 LOGIQ™ 100 PRO SERVICE MANUAL
Page 3-26 Section 3-6 - System Configuration
3.6.4.6 USB MEMORY STICK
This module serves as an interface which enables users to transfer images from LOGIQ™ 100 PRO
to USB memory stick. LOGIQ™ 100 PRO in JPEG format.This can be further uploaded to any PC
having windows operating system and USB port support.

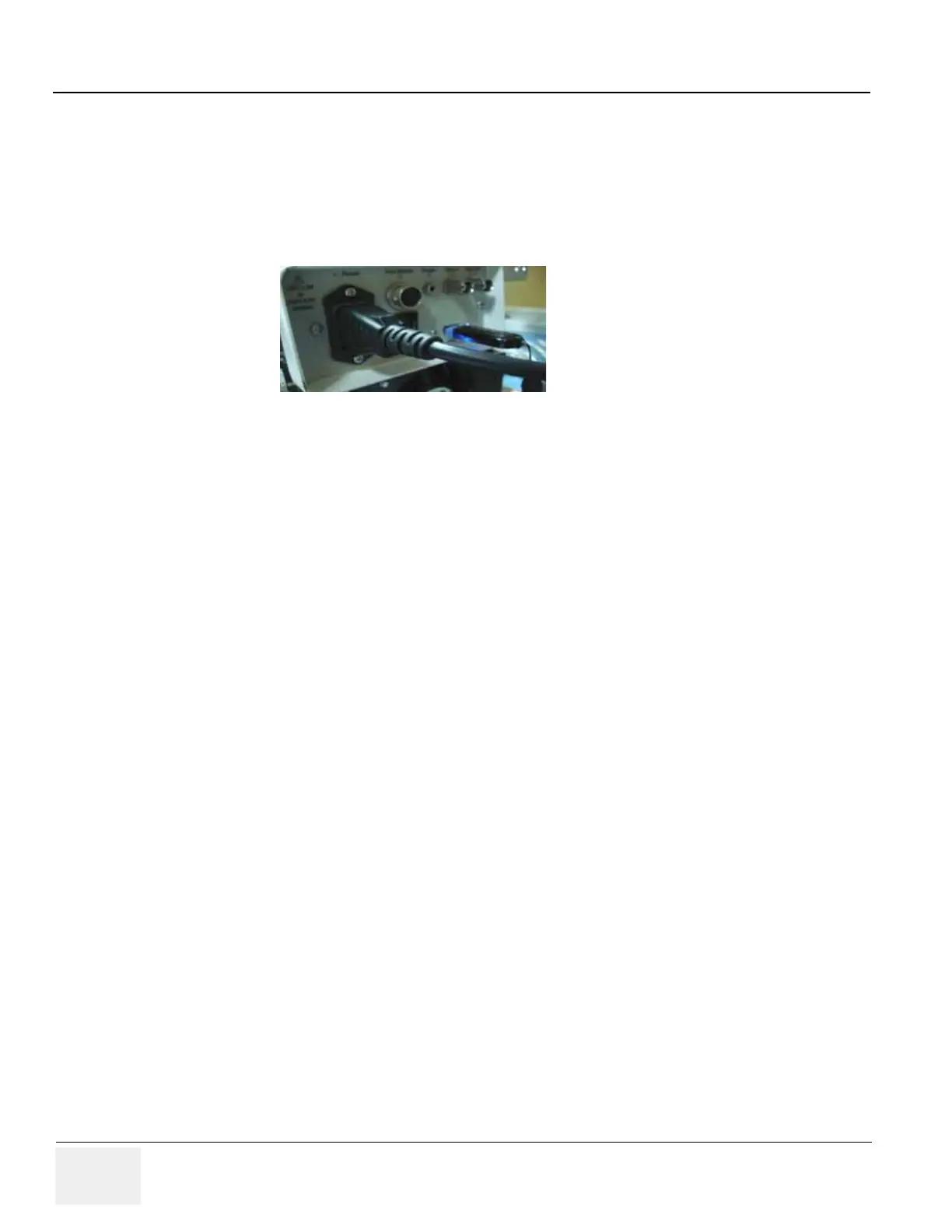

Figure 3-24 USB Memory Stick connection to Rear Panel
Installation of USB Memory Stick:
1.) Connect the USB Memory stick to the USB port provided in the rear panel of LOGIQ™ 100
PRO unit.
2.) Press the recall key. From the main menu Press 4 to enter the multiple selection menu.
3.) To transfer the images to a Memory stick move the trackball to the images that you want to
transfer and press 3.To transfer all images available in the archive press 2 to select images
and 3 to transfer images to Memory stick.
Please ensure that the USB Memory stick has to be connected before attempting
to transfer images to USB Memory stick. If USB is not connected to the LOGIQ™
100 PRO system, the system will prompt " USB not connected".
Do not remove the USB Memory stick when the image is getting transfered.
Note : USB hard disk drive may/may not be recognized by the system.
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process.
See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 71 of 197
