GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
3 - 76 Section 3-9 - Connectivity Setup and Tips

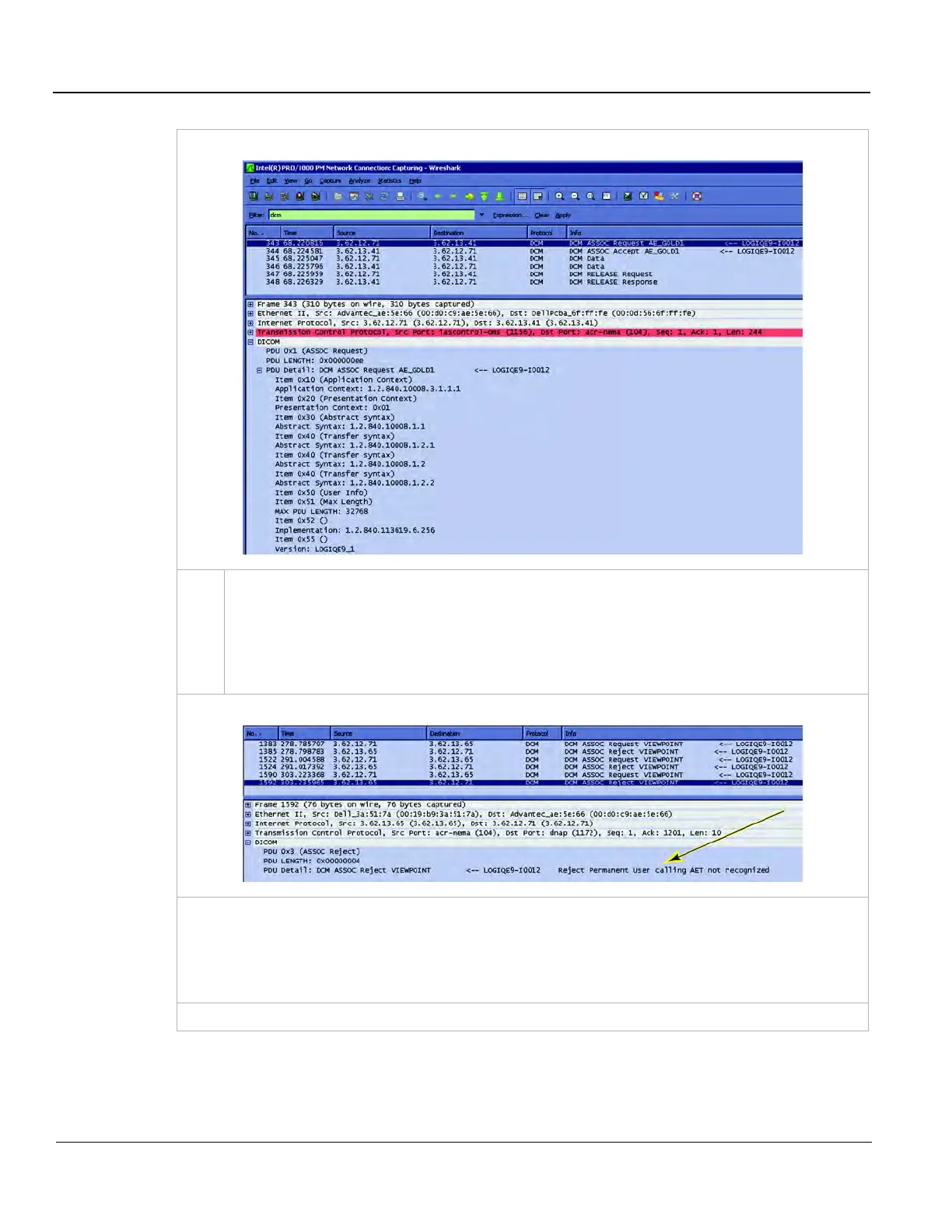

Network Connection: Capturing Wireshark
4.
In the "Filter" bar, enter "dcm" or "dicom." (Which one Wireshark accepts, depends on its
version. Wireshark will indicate whether it accepts one or the other by turning the Filter
background green.) Press Apply.
Once Wireshark displays DICOM traffic, select an individual line and expand the DICOM tree
in the lower frame to view DICOM-specific data.
Wireshark Info column
Capture Restart clears the current traffic display, in preparation for the next DICOM exchange.
In the Wireshark Info column, entries with “Reject” or “Abort” definitely indicate issues. For example,
the above exchange occurred when the tried to send an exam to Viewpoint, but Viewpoint did not
have the correct AE Title for the .
(continued on next page)
Table 3-30 Network “Sniffer”

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
