IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
4 - 20 Section 4-2 - General procedures
4-2-11-4 Connectivity — Recording the AE Title and Port settings
1.) From the Touch Panel, select Utility -> Connectivity -> Device.
2.) Select My Computer in the List of Devices, if not already selected.
3.) Record all settings in Table 4-4 "Record settings for My Computer from Device screen" on page 4-
20
.
4.) Record all settings in Table 4-5 "Record settings for each device listed in Device table" on page 4-20 .

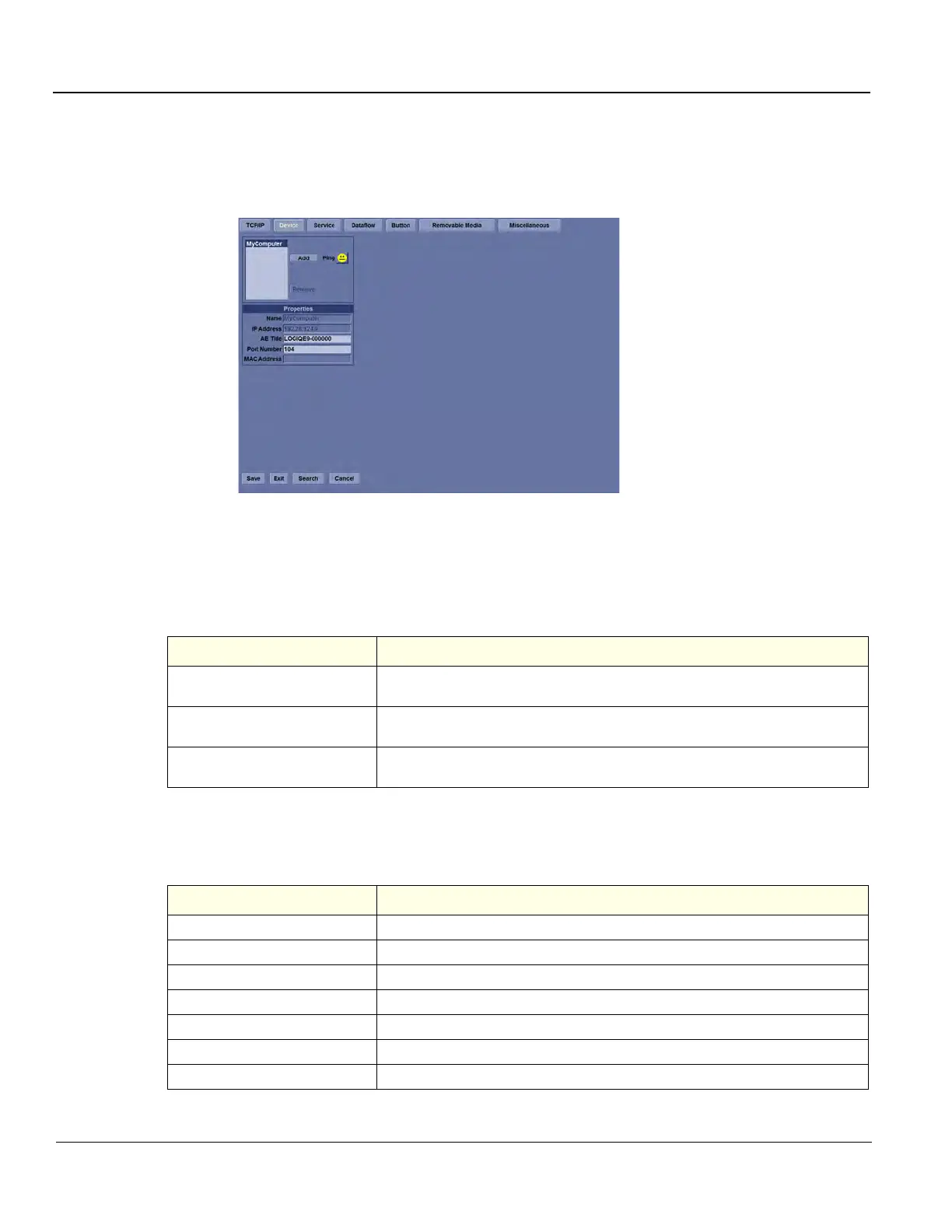

Figure 4-14 Device settings
Table 4-4 Record settings for My Computer from Device screen
PARAMETER VALUE
AE TITLE
PORT NO
MACC ADDRESS
Table 4-5 Record settings for each device listed in Device table
NAME IP ADDRESS

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
