8 - 24 Section 8-4 - Loading / Reloading / Upgrading the Software
8-4-6-13 Functional Checks
Perform the following functional checks to confirm the system is operational before returning the system
to the customer.
If all are successful, include the following debrief script: LOGIQ E9 Service Manual, Direction
5535208-100, Rev. 2. Equipment passed all required checks and is ready for use.
8-4-7 Loading the Application Software Only
Use this procedure to update application software only.
1.) Place the LOGIQ E9 Application Software DVD in the CD/DVD Drive, while the system is running.
2.) Reboot the system. The Start Application window displays.
3.) Select “Install SW.” Press OK on the Start Loader message and then press OK on the New System
Software message. A Command window similar to the example shown in Figure 8-15 "Command
Window" on page 8-25 opens.
Table 8-1 Loading the Software Functional Checks
See:
Section Functional Check Debrief Script
4-2-2 Power ON/Boot Up
LOGIQ E9 Service Manual, Direction
5535208-100, Rev. 2. Equipment passed all
required checks and is ready for use.
4-2-3 Power shut down
4-3-14 Probe/Connectors Checks
4-3-5 B-Mode Checks
4-3-7 System CFM and PWD Checks
4-3-18 Mechanical Function Checks
4-3-10 Basic Measurements

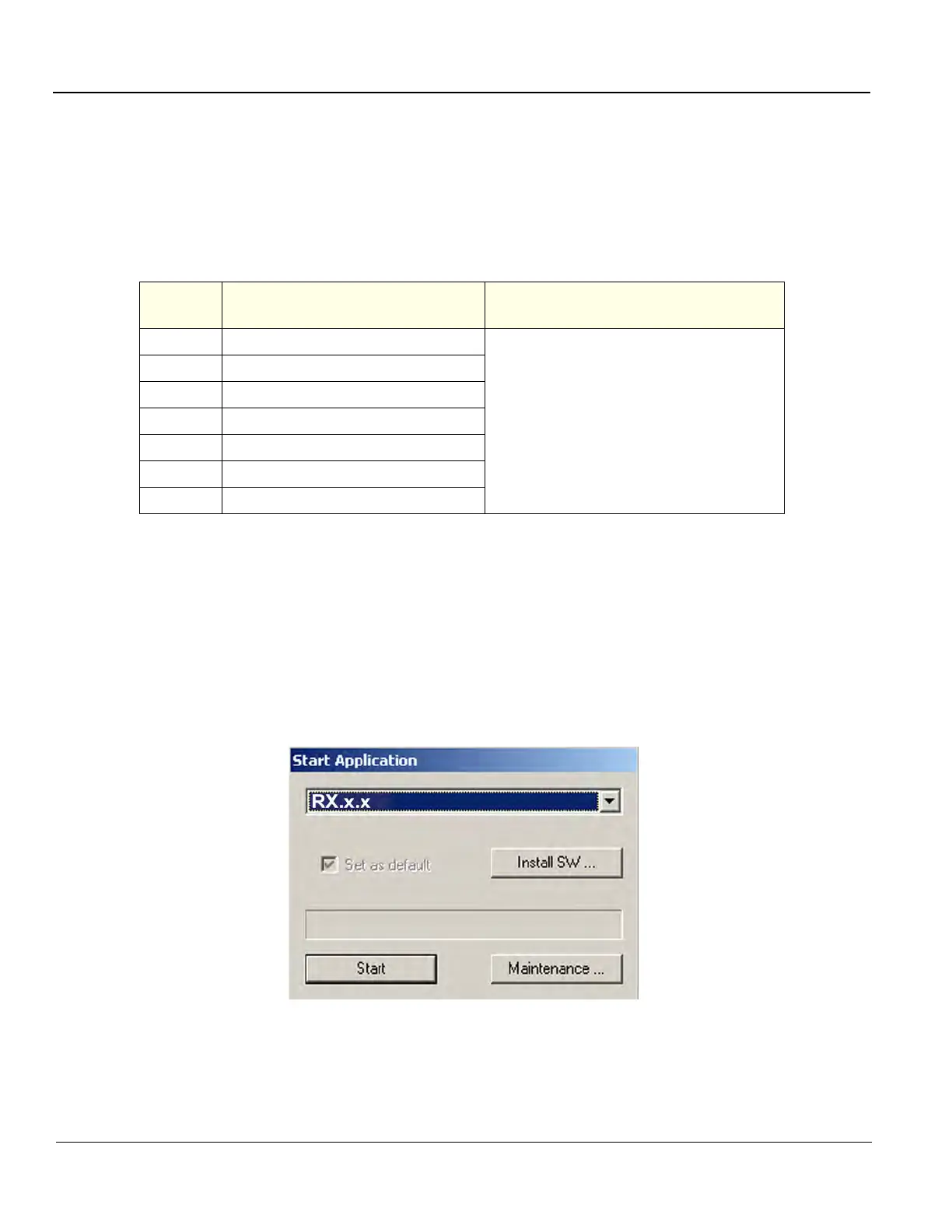

Figure 8-14 Start Application window (window will reflect actual software version
instead of “Rx.x.x”)
