GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 26 Section 8-4 - Loading / Reloading / Upgrading the Software
8-4-7 Loading the Application Software Only (cont’d)
After the reboot, the Start Application window displays.
6.) Remove the LOGIQ E9 Applications Software DVD from the DVD drive.
7.) Store the application disks with the system.
8.) Remove and destroy the previous Application software version disks.
9.) From the Start Application window, select “Start.”
The first time the application loads after a SW reload, you may see: the error shown in Figure 8-18,
"SW Reload Error Message." Select OK and reboot the system.
During the reboot process, the system may prompt for the Basic Option string (valid license) (see:
Figure 8-19 "Enter Option String" on page 8-27.
If the Basic Option string is not saved in the Option Dongle, or if this is a software upgrade, the SW
License window may open.
NOTE: If only the title bar is visible in the lower, left corner of the monitor, double-click the SW License
title bar to expand the window.

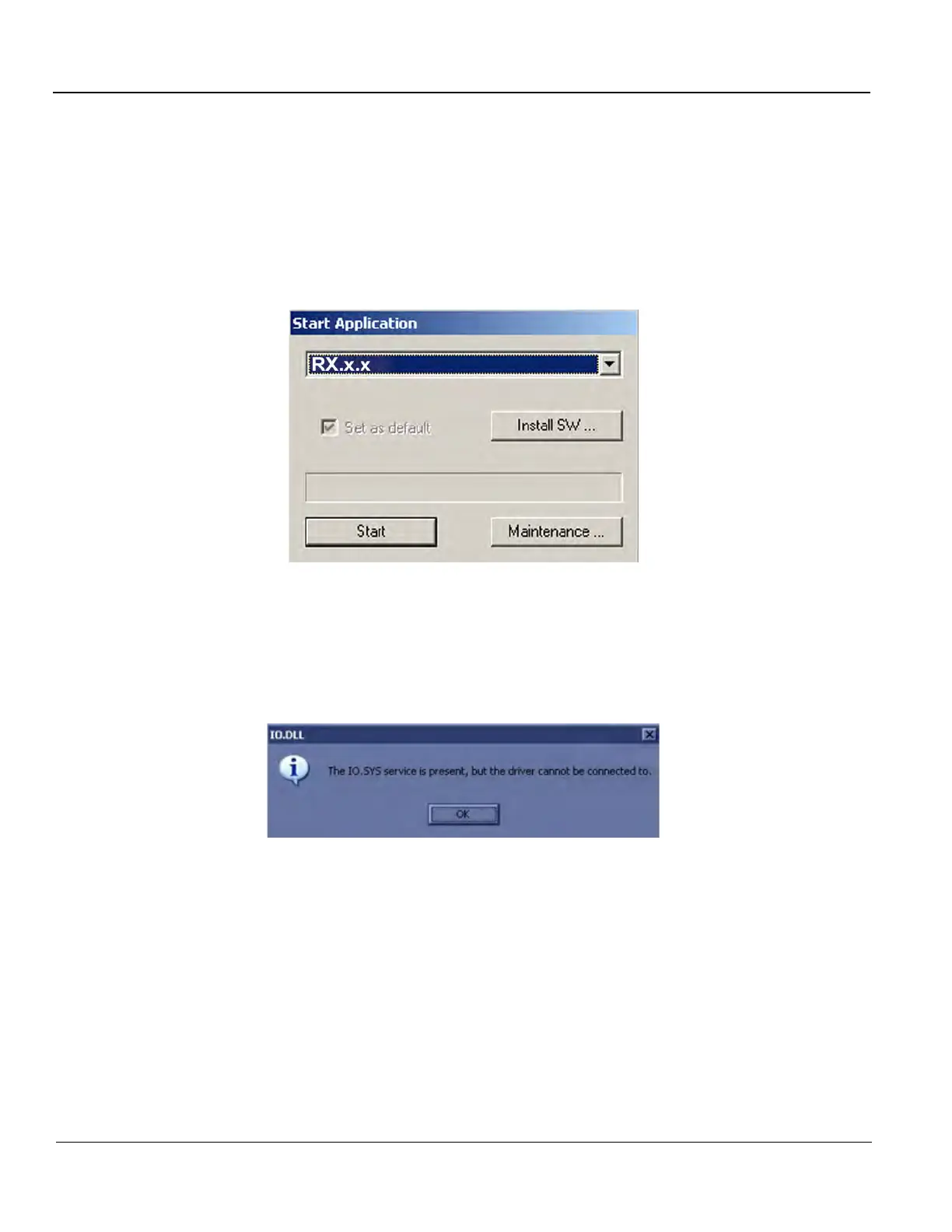

Figure 8-17 Start Application window (window will reflect actual software version
instead of “Rx.x.x”)
Figure 8-18 SW Reload Error Message

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
