IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

Chapter 8 Replacement procedures 8 - 35

8-5-2-3 Removable Fan Tray Cover replacement

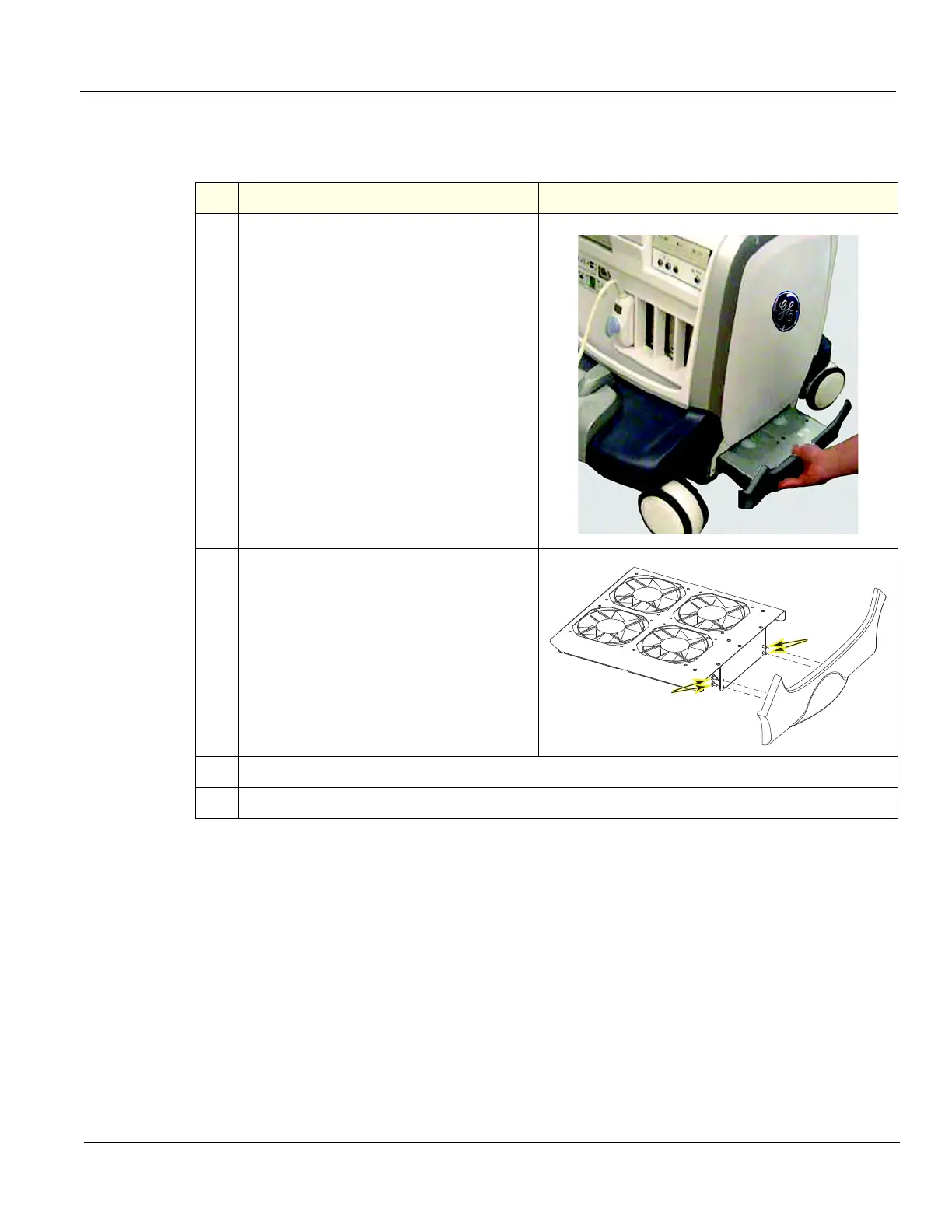

Table 8-6 Removable Fan Tray Cover removal / installation

Steps Corresponding Graphic

Slide Fan Tray out of the LOGIQ E9.

Flip the Fan Tray over and lay on a safe

surface.

Remove the four screws securing the Fan

Tray Cover to the Fan Tray.

Retain the screws.

Install the replacement Cover and secure with the screws removed.

Reinstall the Fan Tray Assembly.
