IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

8 - 92 Section 8-6 - Replacing Top Console Parts

Install the Monitor Cables Cover and fasten

it with the fixing screw.

NOTE: If the replacement FRU DOES NOT

have the new labels on the LCD Cover, the

original VESA cover with new labels should

be used on the replacement Monitor to

maintain compliance of the console. See:

Table 8-55 "LCD Rear Cover Labels" on

page 8-89.

Perform Functional Checks. See: 8-6-2-7 - Calibration and adjustments, 8-6-2-8 - Verification

and 8-6-2-9 "Functional Checks" on page 8-101.

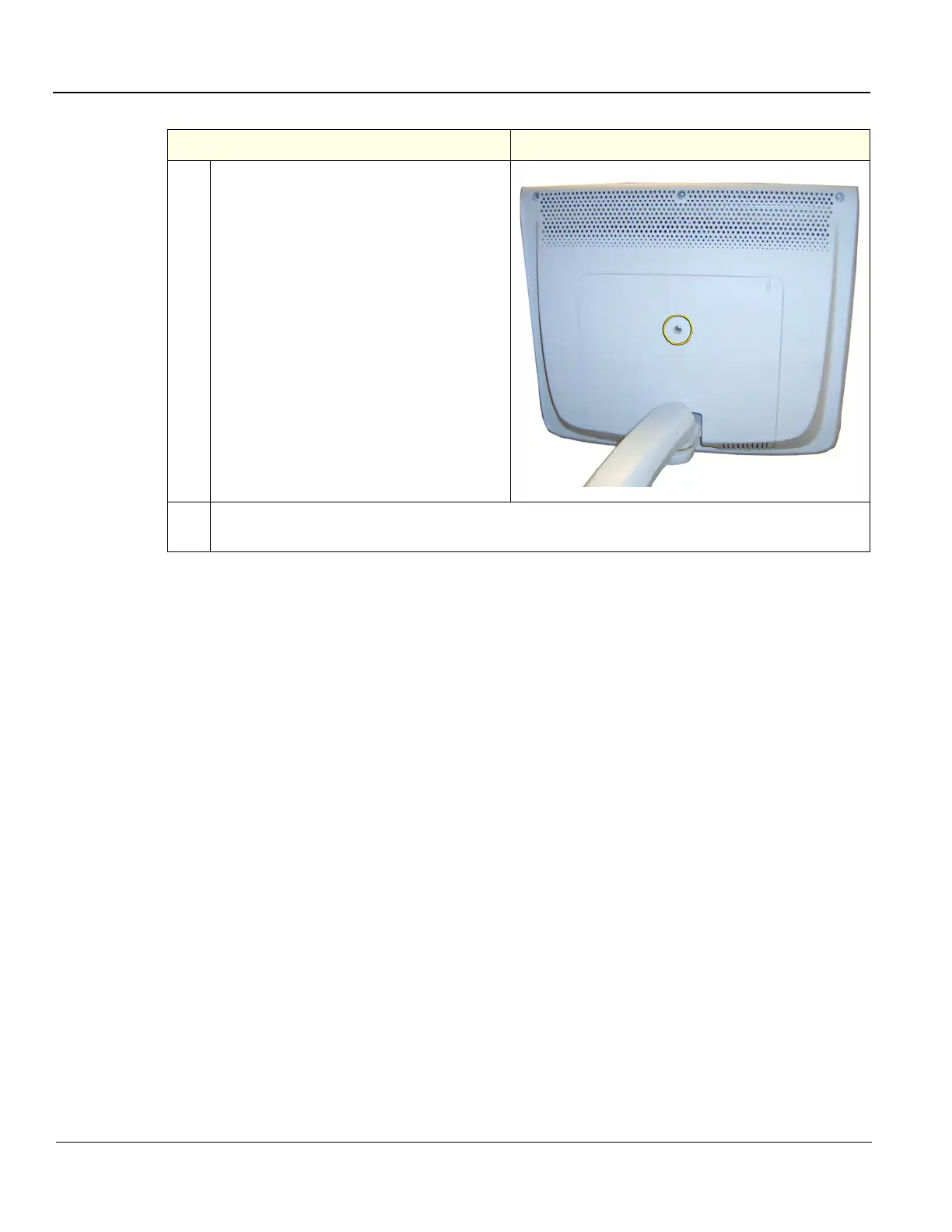

Table 8-57 LCD Monitor installation - R3.x and earlier

Steps Corresponding Graphic
