IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

Chapter 8 Replacement procedures 8 - 105

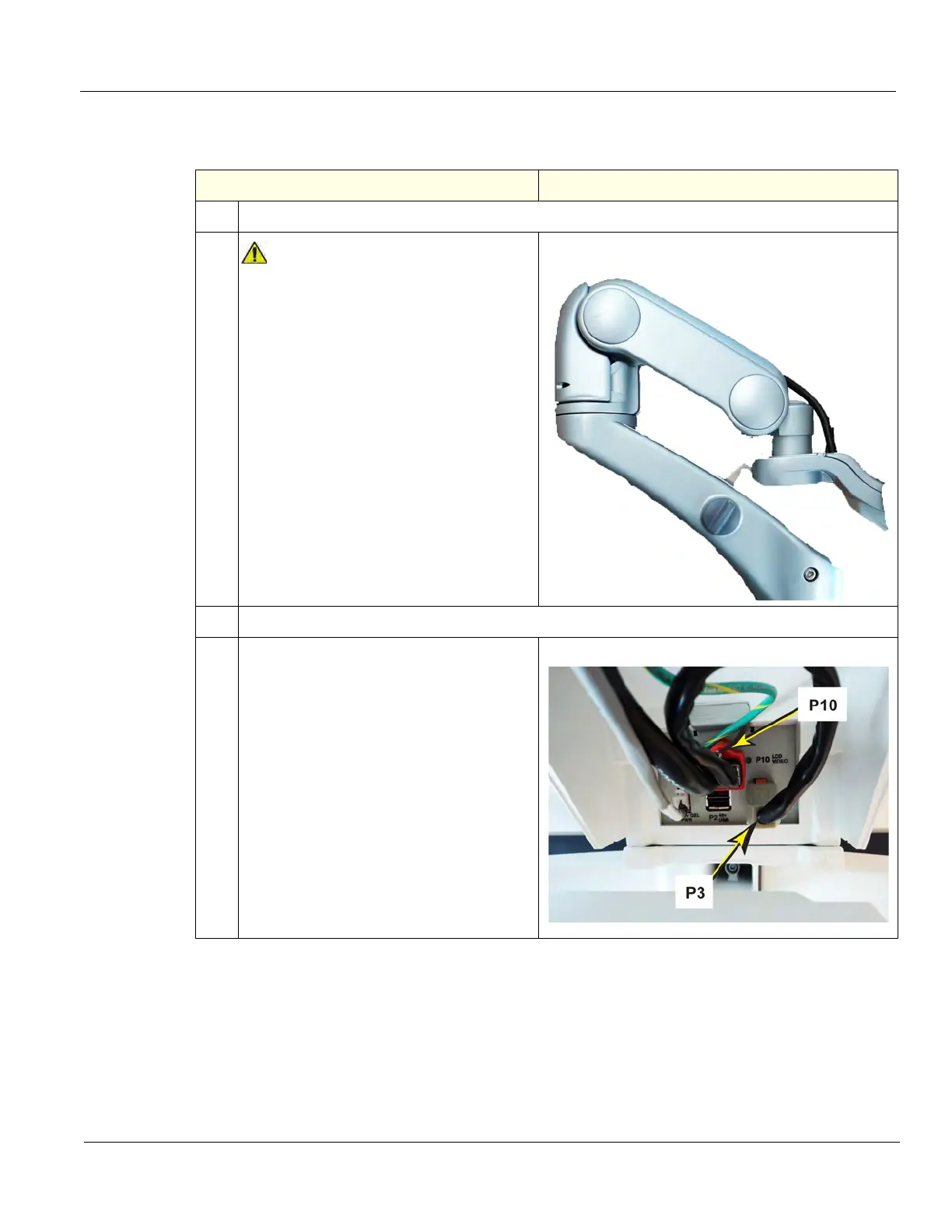

8-6-3-2 LCD Monitor V2 Arm assembly replacement (used in R4.x production)

Table 8-67 LCD Monitor V2 Arm assembly removal - R4

Steps Corresponding Graphic

Remove the LCD Monitor.

WARNING

WHEN REMOVING THE LCD ARM, KEEP

THE ARM LOCKED, AS SHOWN TO

ENSURE THE LCD ARM ASSEMBLY IS

IN THE LOCKED POSITION UNTILL THE

ARM AND LCD ARE INSTALLED. THE

SPRINGS TO SUPPORT THE LCD CAN

CAUSE THE ARM TO SPRING OPEN

CAUSING SEVERE PERSONAL INJURY

AND PROPERTY DAMAGE.

Remove the Bulkhead Cover.

Disconnect the LCD cables; video (P10)

and power (P3) from the LCD.

The Video Cable has a retainer and screw.

Loosen the screw with a small, flat blade

screwdriver.
