8 - 106 Section 8-6 - Replacing Top Console Parts
5.

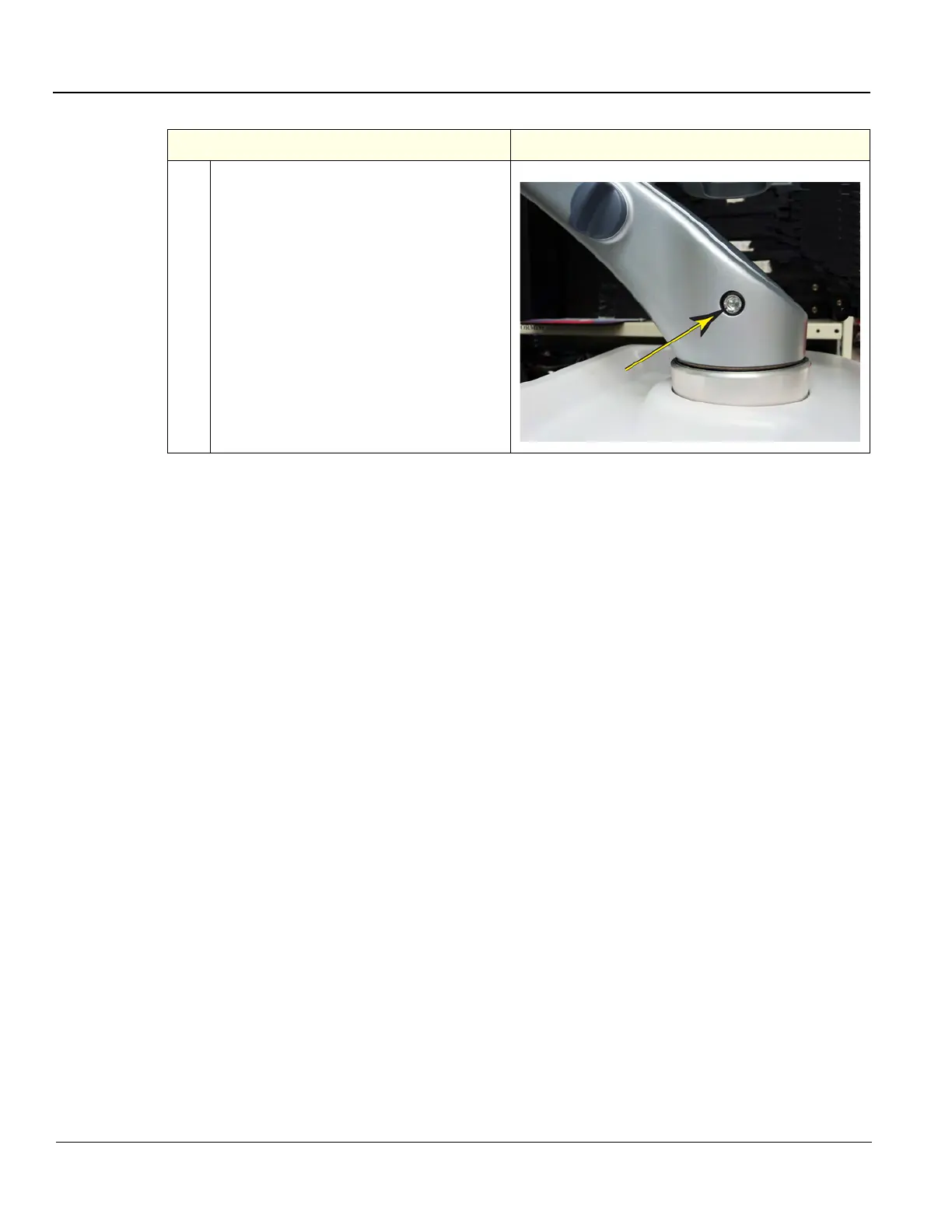

Remove the Set Screw.
Carefully lift the Arm Assembly up from the
LOGIQ E9.
Table 8-67 LCD Monitor V2 Arm assembly removal - R4
Steps Corresponding Graphic
