8 - 108 Section 8-6 - Replacing Top Console Parts
2.
Take the LCD Arm and Cable Assembly
and feed the LCD Power Cable into the
Adapter first.
Position the Video Cable Connector as
shown and continue to feed the cables into
the Adapter.
Install the Arm Assembly.
3.
Position the Arm Assembly so the Set
Screw mounting hole faces the left side of
the LOGIQ E9.
Install the Set Screw. Torque: 9.8 Nm
(7.2 lbf-ft {86.4 lbf-in}).

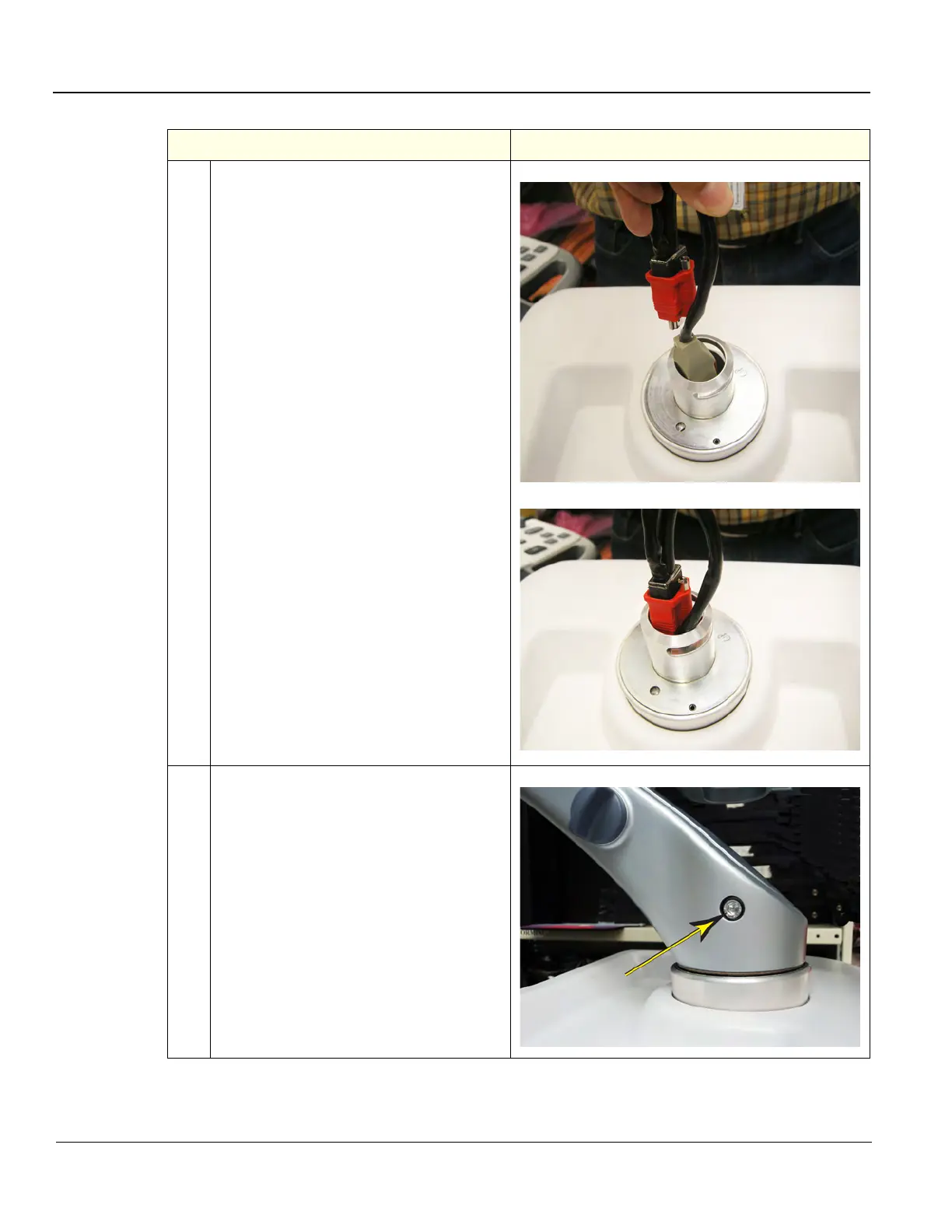

Table 8-68 LCD Monitor V2 Arm assembly installation - R4
Steps Corresponding Graphic
