IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 129
8-6-6 Probe Holder Insert replacement
8-6-6-1 Probe Holder Insert removal
8-6-6-2 Probe Holder Insert installation

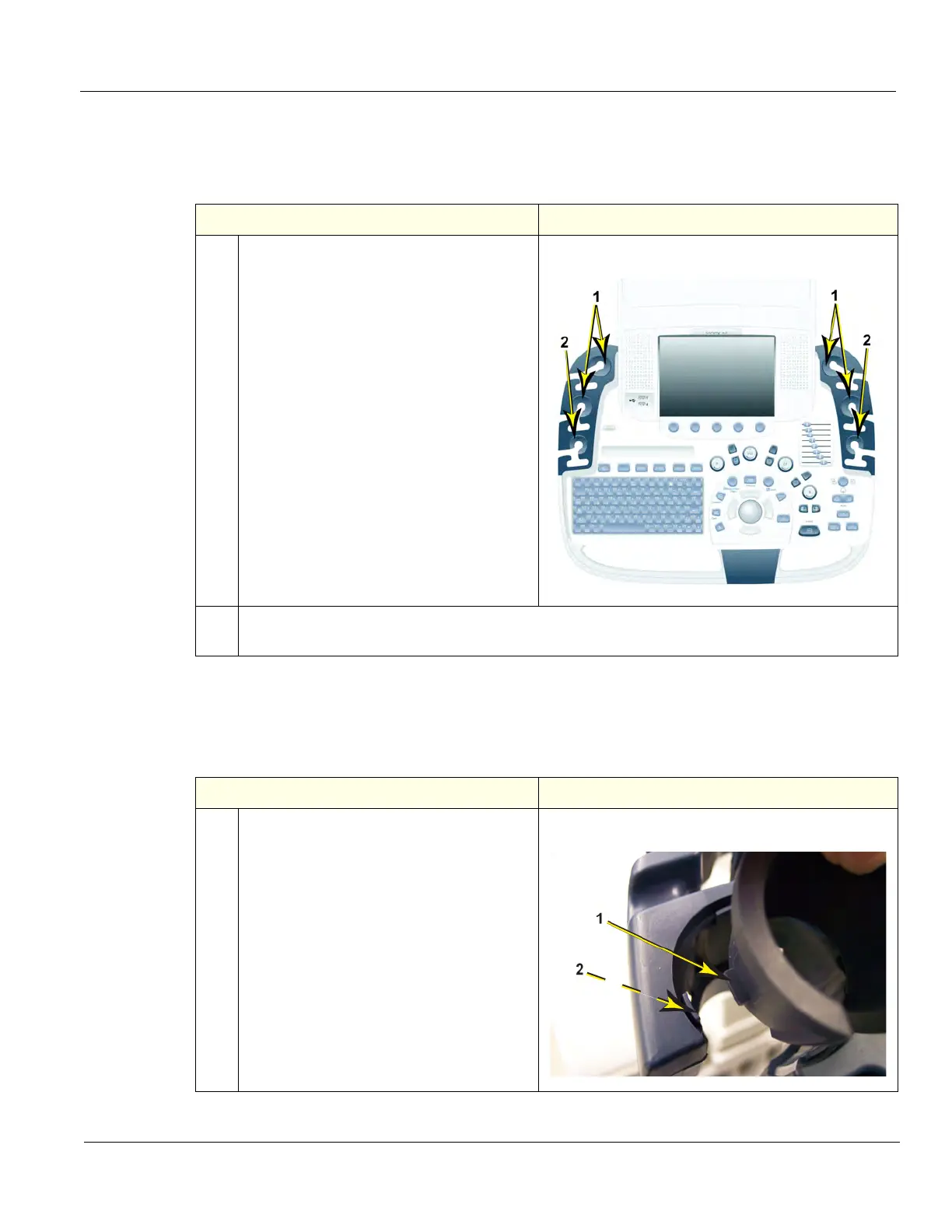

Table 8-83 Probe Holder Insert removal
Steps Corresponding Graphic
1. Carefully pull the flexible Probe Holder
Insert out of the lower UI frame. Large (1)
and small (2) soft, Probe Holder Inserts.
Probe Holder placement
2. To remove the dongle, slightly lift up the end to disengage the Velcro, then pull the dongle out of
the USB port.
Table 8-84 Probe Holder Insert installation
Steps Corresponding Graphic
1. Install the flexible Probe Holder Insert into
the lower UI frame. Be sure the hooks (1)
and tabs (2) fit properly and the Probe
Holder fits snugly.
Probe Holder placement
