8 - 134 Section 8-6 - Replacing Top Console Parts
8-6-8-1 Upper OP Panel/Touch Panel Assembly removal (cont’d)

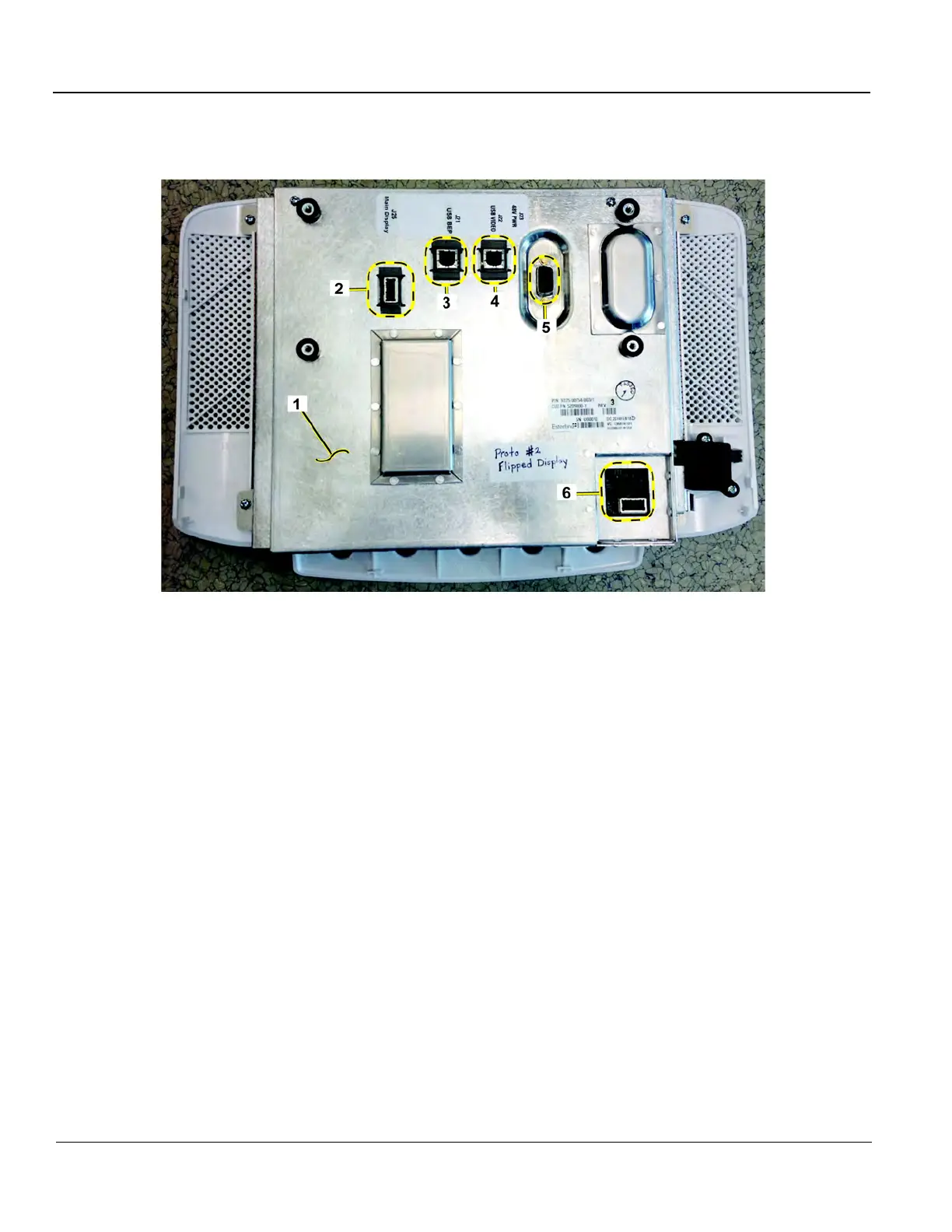

Figure 8-43 Upper OP Panel/Touch Panel assembly cable placement - R5 and later
1.
Upper OP Panel
4.
USB - Video - J22
2.
USB - Main Display - J25
5.
48V Power - ON/OFF LOGIC to
BEP - J23
3.
USB - BEP - J21
6.
Upper to Lower Connector:
Power - J17 (top)
USB - J16
