8 - 150 Section 8-6 - Replacing Top Console Parts
4. Unscrew the 34 screws.
Slowly and carefully lift the board
away from the Lower Op Panel
Bezel. IF any of the keycap holders
are upset, reset them. DO NOT
drop the Lower Op Panel Bezel
because you will have to replace all
of the keycap holders.

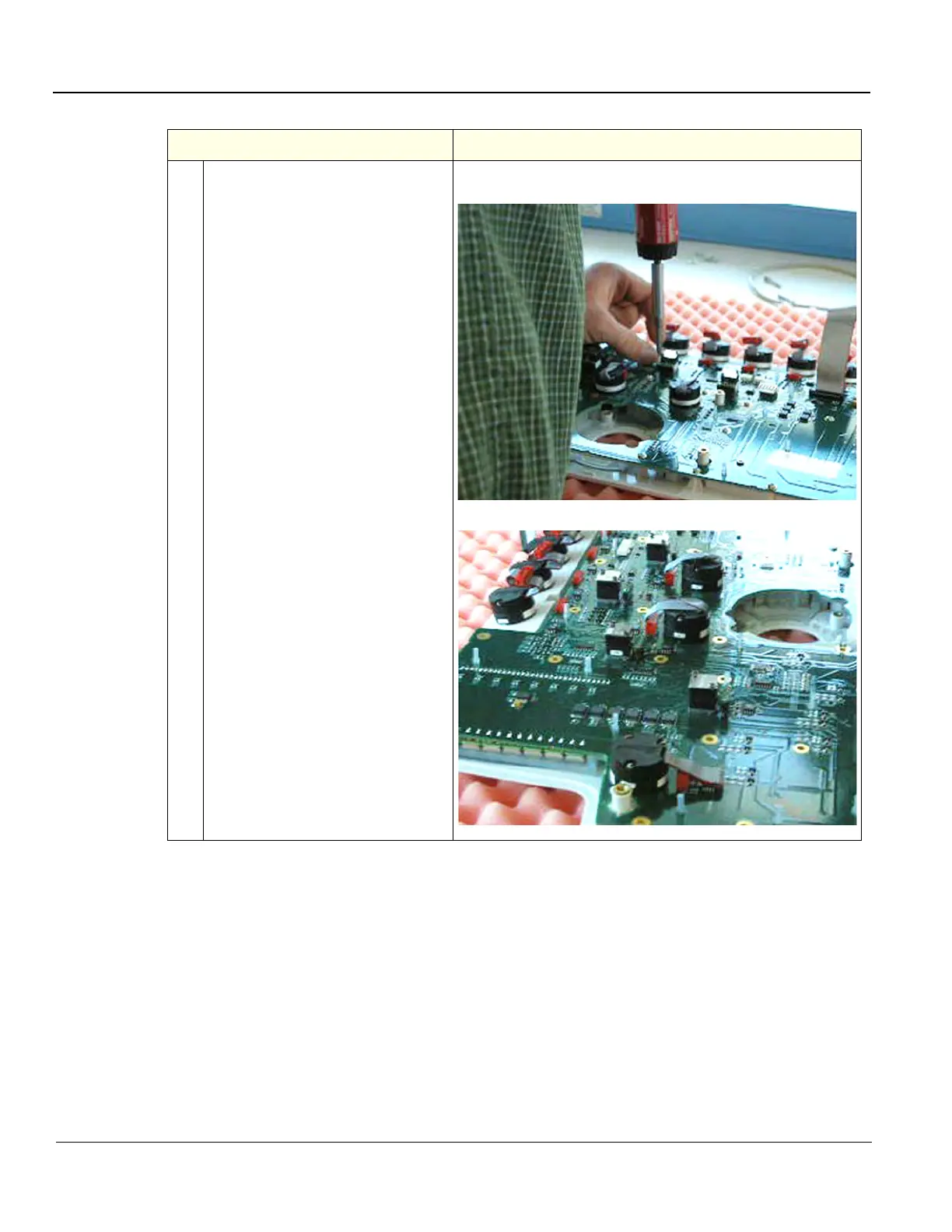

Lower Op Panel Board - screws
Table 8-98 Lower Op Panel Board replacement
Steps Corresponding Graphic
