IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 153

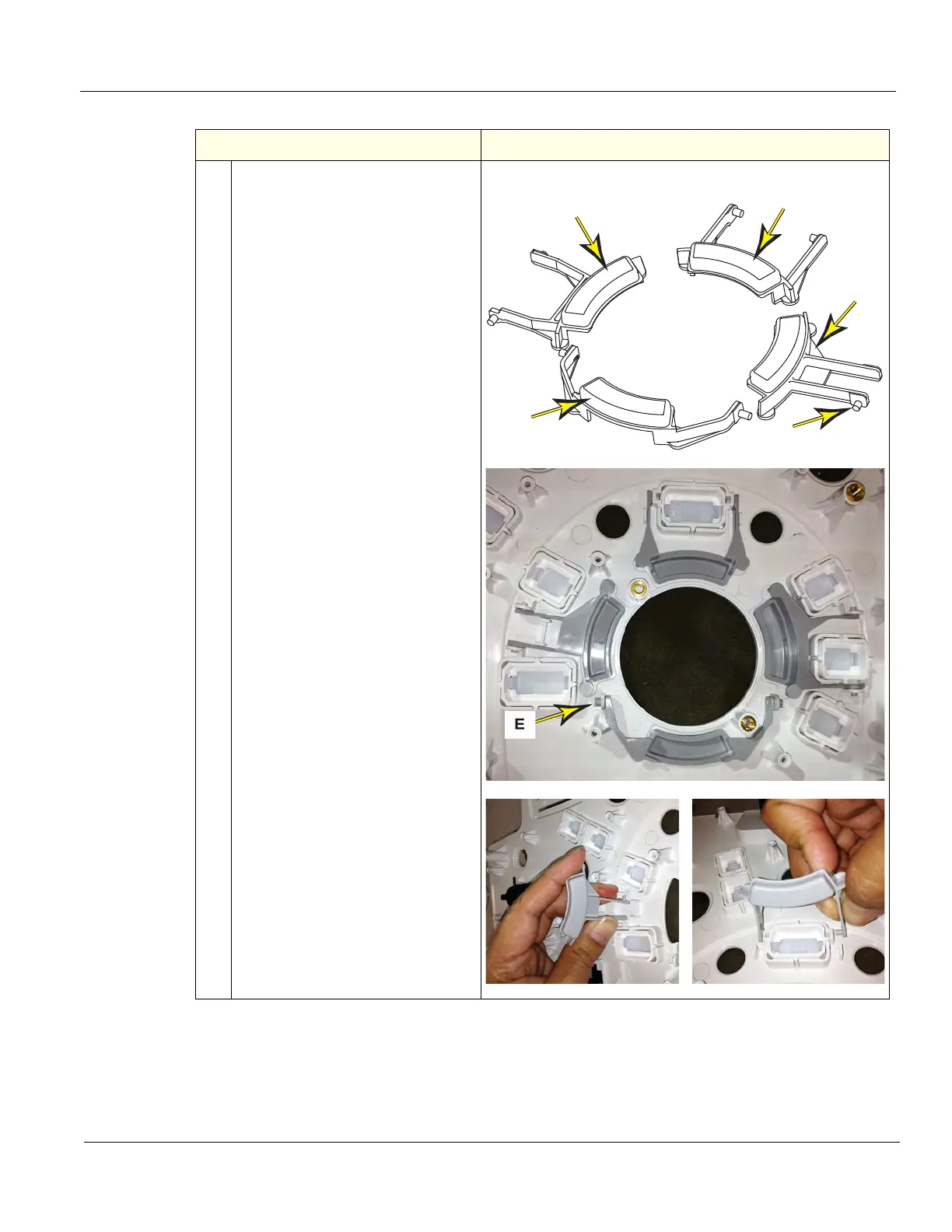

2. Customer Removable Trackball
Bezel DOES NOT use a Ring of
Keys.
The keys are smaller and retained
to the Bezel with pivot points (E).
A - Trackball Key, Bottom
B - Trackball Key, Left
C - Trackball Key, Top
D - Trackball Key, Right
E - Trackball Key, Pivot Points
One Pivot Point (E) shown on
Bottom Key (A).
The Keys MUST BE tilted up to
remove. Keys A - Bottom, B - Left
and D - Right, are squeezed to be
removed.
Key C - Top, Pivot Points are pulled
outward.
Table 8-99 Lower Bezel Replacement
Steps Corresponding Graphic
B
A
C
D
E
